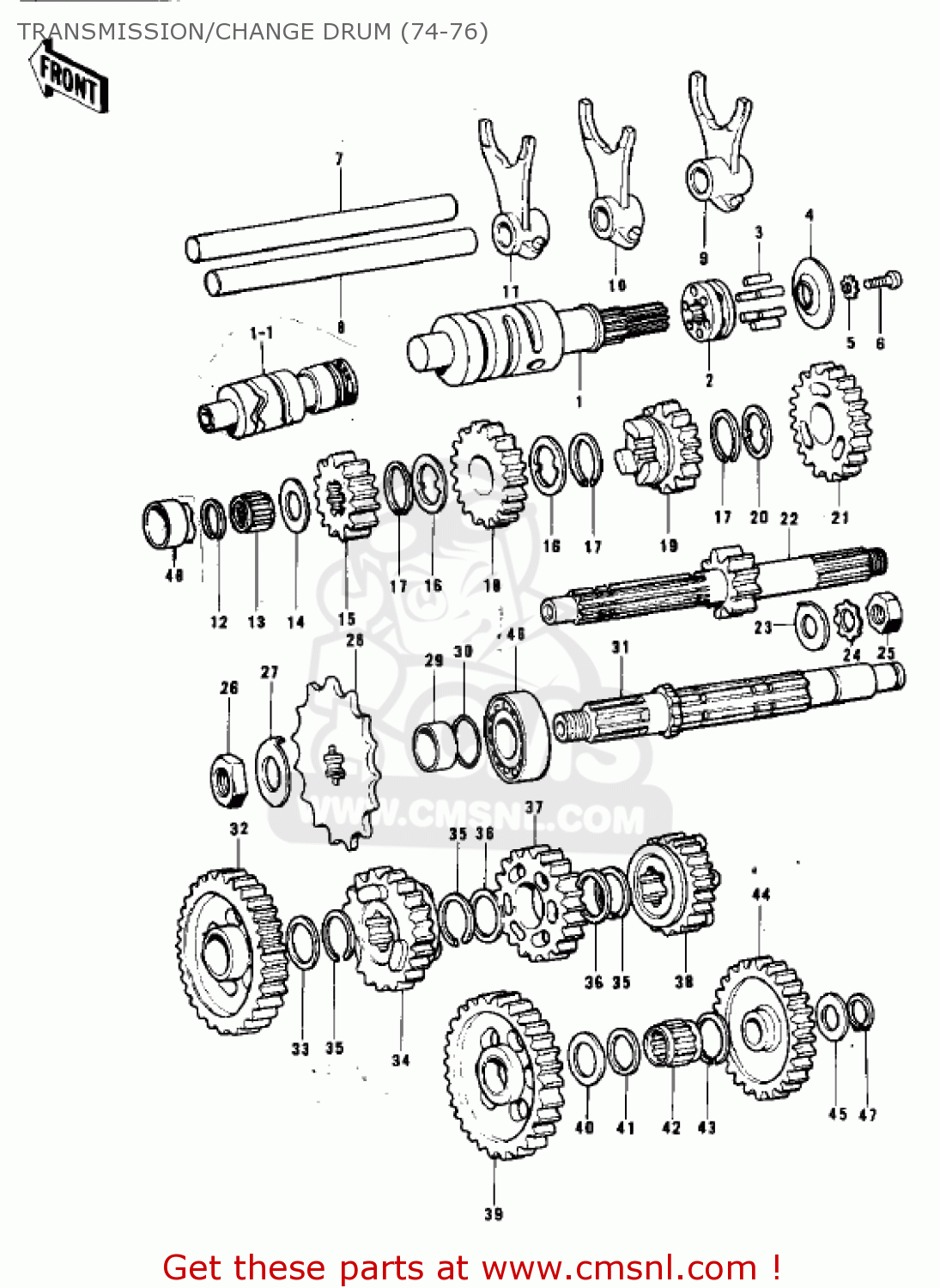

TRANSMISSION/CHANGE DRUM (74-76)

ref

part #

description

quantity

-

13239016
ref: -
Includes items 1 - 1

DRUM ASSY,GEAR CHANGE

€ 55.50

-

13141040
ref: -
Includes items 1 - 1

DRUM,GEAR CHANGE

€ 55.50

1-1

13141043
ref: 1-1
USE FOR P/N

DRUM,GEAR CHANGE

€ 55.50

2

13145003
ref: 2
NOT RQRD FOR

DISC,CHNG DRUM OPRTN

€ 32.50

3

92042029
ref: 3

PIN,GEAR CHANGE DRUM

€ 3.50

4

13142014
ref: 4

HOLDER,CHANGE DRUM PI

€ 14.00

5

464H0600
ref: 5

WASHER-LOCK,6MM

€ 0.50

6

220B0614
ref: 6

SCREW-PAN HEAD,6X14

€ 2.00

7

490471003
ref: 7
L=93.7M/M

ROD,SHIFT 93.7MM

€ 18.00

8

490471002
ref: 8
L=71.7M/M

ROD,SHIFT 71.7MM

€ 32.00

9

13140061
ref: 9

FORK,SELECTOR,LOW

€ 44.50

10

13140062
ref: 10

FORK,SELECTOR,2ND&3RD

€ 57.00

11

13140063
ref: 11

FORK,SELECTOR,4TH&TOP

€ 59.00

12

92033030
ref: 12

CIRCLIP,DRIVE SHAFT

€ 6.50

13

92046038
ref: 13
KT152016

BEARING,2KTV119

€ 10.00

14

92022279
ref: 14
1.0T

WASHER,15.3X25X1

€ 7.00

15

131291073
ref: 15
15T

2ND GEAR,DRIVE SHAFT

€ 40.50

16

92024059
ref: 16
O.D.=250

WASHER,LOCK

€ 3.00

17

92033029
ref: 17

CIRCLIP,18MM

€ 6.50

18

13134020
ref: 18
19T

4TH GEAR,DRIVE SHAFT

€ 53.00

19

13132036
ref: 19
17T

3RD GEAR,DRIVE SHAFT

€ 58.50

20

92022252
ref: 20

WASHER

€ 4.00

21

13136048
ref: 21
20T

TOP GEAR,DRIVE SHAFT

€ 32.50

22

13127049
ref: 22
12T

SHAFT,DRIVE

€ 109.50

23

920221277
ref: 23

WASHER,16.8X32X1.6

€ 3.50

24

464H1600
ref: 24

WASHER-TOOTHED,16MM

€ 3.00

25

92015072
ref: 25

NUT,LOCK,16MM

€ 4.50

26

92015019
ref: 26

NUT,18MM

€ 4.00

27

92024067
ref: 27

WASHER,LOCK

€ 2.00

28

13144055
ref: 28
STD

SPROCKET-OUTPUT,13T

€ 28.50

28

13144056
ref: 28
OPTION

ENGINE SPROCKET 14T

€ 23.00

29

92027163
ref: 29

COLLAR,25X30X10.1

€ 13.00

30

92055035
ref: 30

O RING

€ 3.00

31

13128041
ref: 31

SHAFT,OUTPUT

€ 139.50

32

13131044
ref: 32
26T

GEAR,OUTPUT 2ND,26T

€ 103.00

33

92022198
ref: 33
I.D.=22.30

WASHER-PLAIN

€ 3.50

34

13135025
ref: 34
22T

4TH GEAR,OUTPUT SHAFT

€ 67.50

35

92033025
ref: 35

CIRCLIP,25MM

€ 3.00

36

92024039
ref: 36

WASHER-LOCK

€ 4.00

37

13133036
ref: 37
24T

3RD GEAR,OUTPUT SHAFT

€ 73.50

38

13137030
ref: 38
20T

TOP GEAR OUTPUT SHAFT

€ 51.50

39

13129052
ref: 39
28T

LOW GEAR,OUTPUT SHAFT

€ 41.50

40

92022280
ref: 40

WASHER,PLAIN

€ 3.00

41

92022281
ref: 41

WASHER,PLAIN

€ 4.00

42

920461184
ref: 42

BEARING-NEEDLE

€ 20.00

43

92033032
ref: 43

CIRCLIP

€ 3.00

44

13073012
ref: 44
28T

IDLE GEAR

€ 49.00

45

92022197
ref: 45
O.D=240

WASHER-THRUST

€ 1.00

46

601B6203Z
ref: 46

BEARING-BALL,#6203ZC3

€ 24.00

47

92033032
ref: 47

CIRCLIP

€ 3.00

48

92028146
ref: 48

BUSHING,NEEDLE BEARIN

€ 8.50

TRANSMISSION/CHANGE DRUM (74-76)
