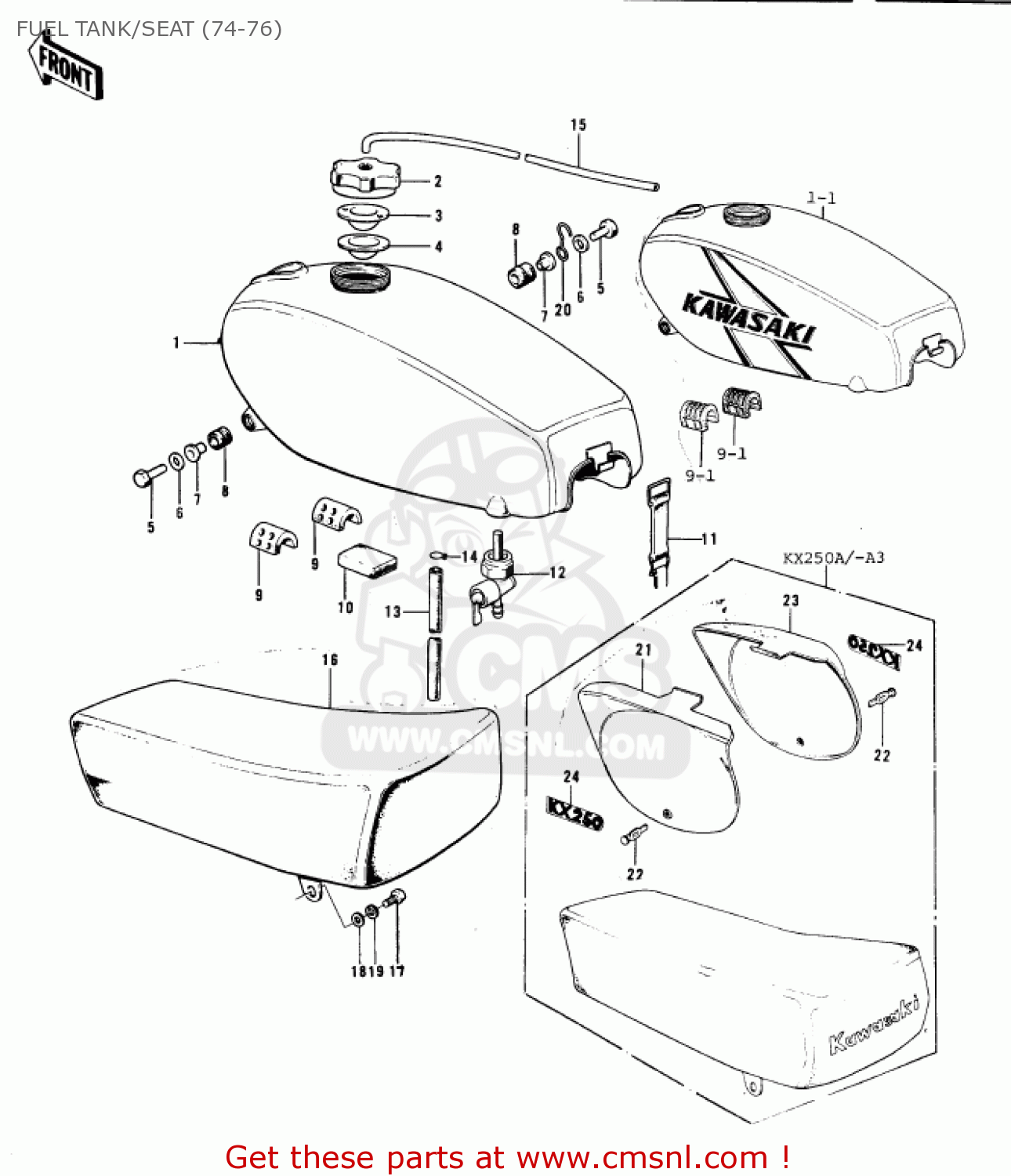

FUEL TANK/SEAT (74-76)

ref

part #

description

quantity

1

51001095
ref: 1

TANK,FUEL

€ 210.00

1-1

510010953X
ref: 1-1
KX250-A3

TANK,FUEL,C.LIME

€ 210.00

2

510491002
ref: 2

CAP,FUEL TANK

€ 9.50

3

51058004
ref: 3

WASHER,FUEL TANK CAP

€ 4.50

4

51059012
ref: 4

GASKET,FUEL TANK CAP

€ 4.50

5

112G0625
ref: 5

BOLT-UPSET,6X25

€ 4.00

5

112G0630
ref: 5
KX250-A3

BOLT-UPSET

€ 1.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

92027216
ref: 7

COLLAR,L=16.1

€ 6.00

8

92075197
ref: 8

DAMPER

€ 12.00

9

92075198
ref: 9

DAMPER RUBBER

€ 9.50

9-1

92075215
ref: 9-1
KX250-A3

DAMPER,FUEL TANK

€ 9.50

10

51067002
ref: 10
NOT REQUIRED FOR

MAT-FUEL TANK

€ 12.00

11

92072076
ref: 11

BAND,L=40

€ 14.00

11

92072076
ref: 11
KX250-A3

BAND,L=40

€ 14.00

12

51023033
ref: 12

COCK ASSY,FUEL

€ 47.00

13

92059144
ref: 13
L-140M/M

HOSE, FUEL

€ 50.50

14

92037072
ref: 14

CLAMP,TUBE

€ 4.00

15

700Q05280
ref: 15

TUBE-VINYL,5X280

€ 1.50

16

53001107
ref: 16

SEAT

€ 178.50

16

53001113
ref: 16
KX250A/A3

SEAT ASSY

€ 229.00

17

110N0816
ref: 17

BOLT-HEX HEAD,8X16

€ 0.50

18

411B0800
ref: 18

WASHER-PLAIN,8MM

€ 0.50

19

461F0800
ref: 19

WASHER-SPRING,8MM

€ 0.50

20

92037092
ref: 20

CLAMP,CABLE

€ 5.00

21

36001051
ref: 21

COVER,L.H SIDE

€ 33.50

22

92072069
ref: 22
KX250A/A3

BAND,SIDE COVER

€ 2.00

23

36007045
ref: 23
KX250A/A3

COVER,R.H SIDE

€ 34.50

24

56018207
ref: 24
KX250A

EMBLEM,SIDE COVER

€ 3.00

24

56018228
ref: 24
KX250-A3

EMBLEM,SIDE COVER

€ 4.50
