FUEL TANK (KX250-A5)
KX250-A4 1978

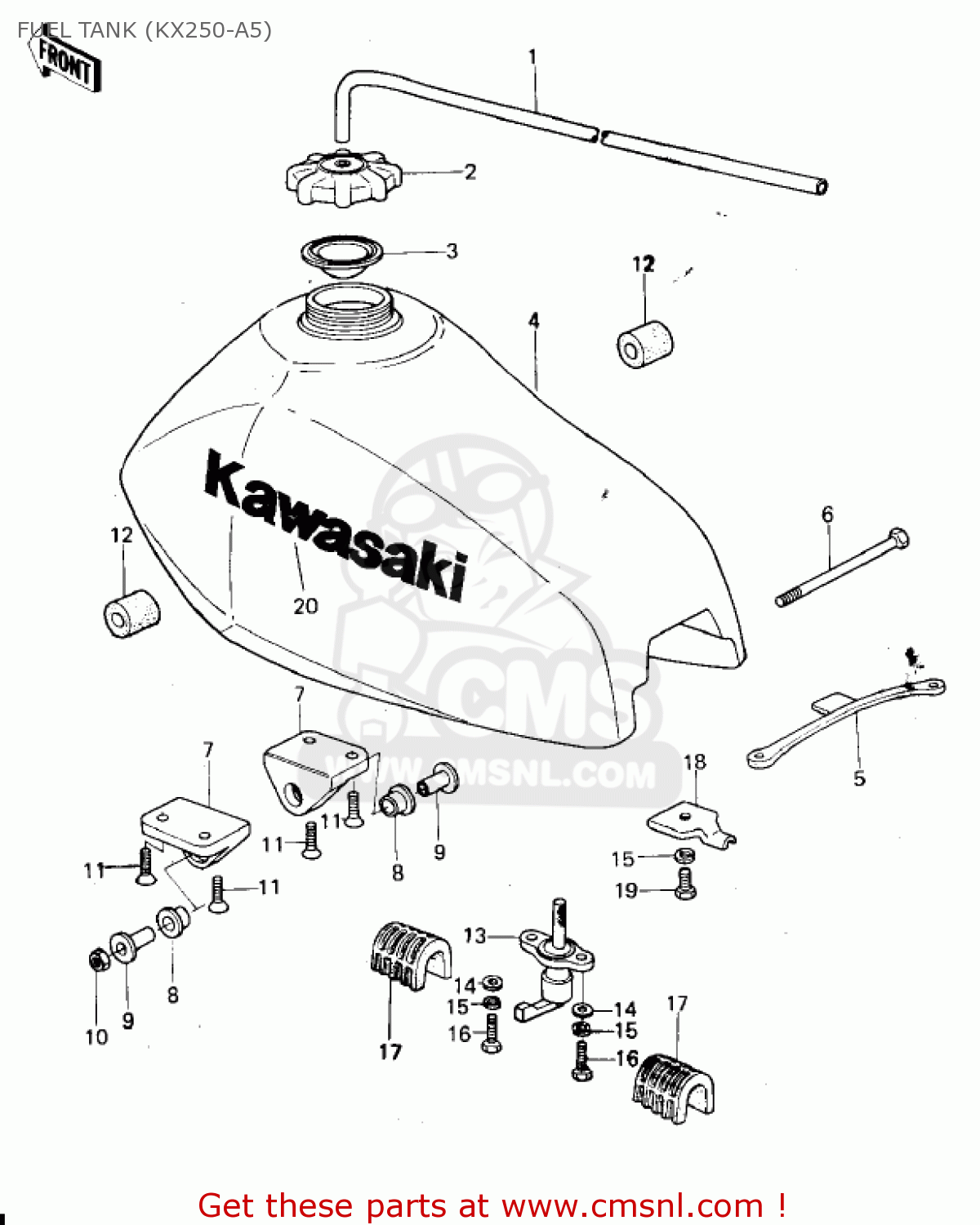

Fuel tank (kx250-a5) diagram KX250-A4 1978
FUEL TANK (KX250-A5) KX250-A4 1978
×
prices are in EUR
ref
part #
description
quantity
1
920591022
ref: 1
TUBE,VINYL
€ 2.50
2
510491006
ref: 2
CAP-TANK,FUEL
€ 21.50
3
110091452
ref: 3
GASKET,FUEL TANK CAP (NAS)
€ 15.00
4
5100110806W
ref: 4
TANK-COMP-FUEL,L.GREN
€ 325.00
5
92072042
ref: 5
BAND,FUEL TANK
€ 9.00
6
112G06105
ref: 6
BOLT-UPSET,6X105
€ 1.50
7
320521010
ref: 7
BRACKET,FUEL TANK
€ 34.00
8
920751048
ref: 8
DAMPER,FUEL
€ 3.00
9
920261015
ref: 9
SPACER,FUEL TANK BRAC
€ 7.00
10
92019008
ref: 10
NUT-LOCK,6MM
€ 3.00
11
221B0614
ref: 11
SCREW-CNTSNK HD,6X14
€ 2.50
12
920751047
ref: 12
DAMPER RUBBER,F,TANK
€ 3.00
13
510231115
ref: 13
TAP-ASSY,FUEL
€ 37.00
14
411B0600
ref: 14
WASHER-PLAIN,6MM
€ 0.50
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
112G0618
ref: 16
BOLT-UPSET
€ 0.50
17
920751027
ref: 17
DAMPER RUBBER,FL TANK
€ 8.00
18
320521009
ref: 18
BRACKET,FUEL TANK
€ 4.50
19
112G0610
ref: 19
BOLT,6X10
€ 0.50
20
560141023
ref: 20
FUEL TANK DECAL
€ 19.00
