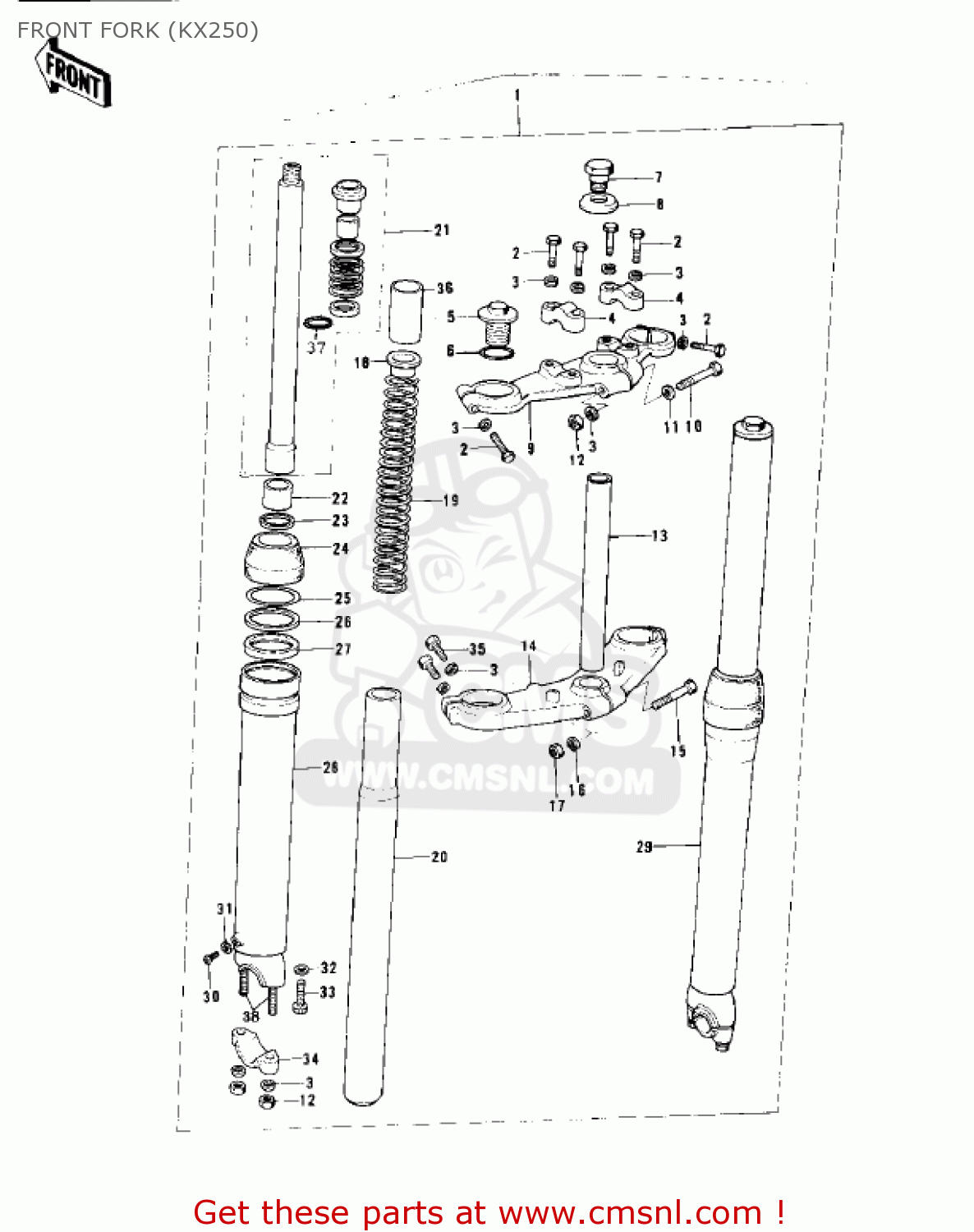

FRONT FORK (KX250)

ref

part #

description

quantity

1

44001169
ref: 1

FRONT FORK ASSY

€ 1,109.50

2

44041004
ref: 2

BOLT,HEX HEAD

€ 8.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

46012011
ref: 4

HOLDER,HANDLEBAR

€ 12.00

5

44041037
ref: 5

BOLT-FORK FITTING

€ 30.50

6

920551012
ref: 6

RING-O,FORK TOP

€ 5.00

7

44041065
ref: 7

BOLT,FORK TOP

€ 18.50

8

44043055
ref: 8

WASHER,FORK TOP BOLT

€ 3.50

9

44039062
ref: 9

HEAD,STEERING STEM

€ 79.00

10

44041042
ref: 10

BOLT-STEERING STEM HD

€ 3.00

11

411B0800
ref: 11

WASHER-PLAIN,8MM

€ 0.50

12

311B0800
ref: 12

NUT,8MM

€ 0.50

13

44052008
ref: 13

SHAFT,STEERING STEM

€ 87.00

14

44038008
ref: 14

STEM STEERING

€ 164.00

15

44041066
ref: 15

BOLT,HEX HEAD

€ 5.50

16

461F1000
ref: 16

WASHER-SPRING,10MM

€ 0.50

17

311B1000
ref: 17

NUT,10MM

€ 0.50

18

44028033
ref: 18

GUIDE-FORK SPRING

€ 6.00

19

44026066
ref: 19

SPRING,FORK INNER

€ 26.50

20

44013052
ref: 20

TUBE,FORK INNER

€ 123.00

21

44022030
ref: 21

CYLINDER,FORK

€ 77.50

22

44018008
ref: 22

PISTON,FORK

€ 7.50

23

44044018
ref: 23

CIRCLIP,FORK

€ 2.50

23

44044021
ref: 23
KX250-A3

CIRCLIP, FORK

€ 3.00

24

44010032
ref: 24

SEAL,FORK

€ 17.00

25

44044012
ref: 25

RING-SNAP

€ 17.50

26

44043044
ref: 26

WASHER,OIL SEAL FIT

€ 8.00

27

920491216
ref: 27

SEAL-OIL,FORK OUTER P

€ 16.00

27

920491216
ref: 27
KX250-A3

SEAL-OIL,FORK OUTER P

€ 16.00

28

44005060
ref: 28

TUBE,L.H FORK OUTER

€ 97.50

29

44006058
ref: 29

TUBE,R.H FORK OUTER

€ 81.50

30

220B0408
ref: 30

SCREW-PAN-CROS

€ 0.50

31

44045045
ref: 31

GASKET,FORK DRAIN (NAS)

€ 1.00

32

44045057
ref: 32

GASKET (NAS)

€ 3.00

33

44041040
ref: 33

BOLT-FORK CYLINDER

€ 4.50

34

44063011
ref: 34

HOLDER-FRONT AXLE

€ 27.00

35

44041083
ref: 35

BOLT

€ 3.00

36

44040002
ref: 36

SPACER,FORK SPRING

€ 3.00

37

44025004
ref: 37

FORK PISTON RING

€ 9.50

38

920041009
ref: 38

STUD, 8X35

€ 4.00
