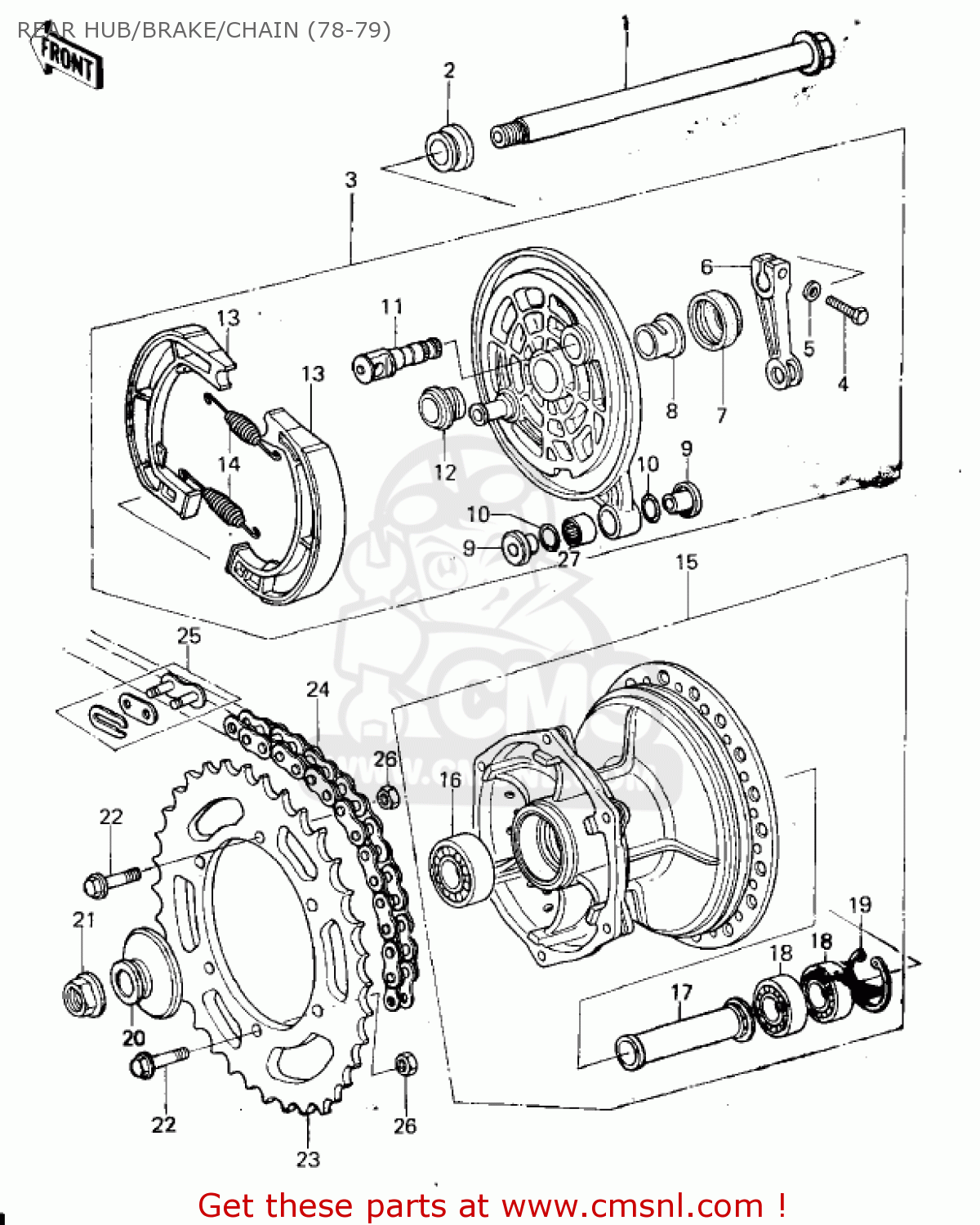

REAR HUB/BRAKE/CHAIN (78-79)

ref

part #

description

quantity

1

410681007
ref: 1

AXLE,REAR

€ 65.00

2

920271039
ref: 2

COLLAR,REAR AXLE

€ 3.50

3

41035100321
ref: 3

PANEL ASSY,REAR BRAKE

€ 361.00

4

112G0622
ref: 4

BOLT-UPSET

€ 2.50

5

410B0600
ref: 5

WASHER-PLAIN-SMALL,6M

€ 0.50

6

410531004
ref: 6

LEVER-BRAKE CAM

€ 76.50

7

920931004
ref: 7

OIL SEAL

€ 3.50

8

420361010
ref: 8
R.H.

SLEEVE,RR BRAKE PANEL

€ 26.50

9

920271040
ref: 9

COLLAR,L=11.5

€ 12.50

10

670B2011
ref: 10

O RING,11MM

€ 1.00

11

410501002
ref: 11

CAM-BRAKE

€ 29.00

12

420361009
ref: 12
L.H.

SLEEVE,RR BRAKE PANEL

€ 39.50

13

42019011
ref: 13

SHOE,BRAKE (MCA)

€ 18.50

14

42020004
ref: 14

SPRING-BRAKE SHOE

€ 5.50

15

41034100721
ref: 15

DRUM ASSY,REAR BRAKE

€ 394.00

16

601B6303U
ref: 16

BEARING-BALL

€ 26.00

17

920271037
ref: 17

COLLAR,REAR BRAKE

€ 35.50

18

601B6003U
ref: 18

BEARING-BALL,#6003UC3

€ 21.50

19

481J3500
ref: 19

CIRCLIP-TYPE-C,35MM

€ 1.00

20

920271038
ref: 20

COLLAR,REAR AXLE

€ 9.50

21

920151015
ref: 21

NUT,16MM

€ 13.50

22

920011040
ref: 22
8 X 32

BOLT,HEX HEAD,8X32

€ 5.50

23

420411006
ref: 23
S.T.D.

REAR SPROCKET,50T

€ 74.50

23

420411022
ref: 23
OPTION

REAR SPROCKET,48T

€ 72.00

23

420411008
ref: 23
OPTION

REAR SPROCKET,52T

€ 80.50

24

920571004
ref: 24
KX250-A4

CHAIN ASSY,DRIVE,110L

€ 56.50

24

920571028
ref: 24
KX250-A5+

CHAIN ASSY,DRIVE 116L

€ 109.50

25

920581002
ref: 25
D1D520TR

JOINT,DRIVE CHAIN

€ 6.00

26

920151124
ref: 26

NUT,LOCK,8MM

€ 3.50

27

920461009
ref: 27

BEARING-NEEDLE,HK1216

€ 14.50

REAR HUB/BRAKE/CHAIN (78-79)

all assemblies
