KICKSTARTER MECHANISM (74-76)
KX250-A4 1978

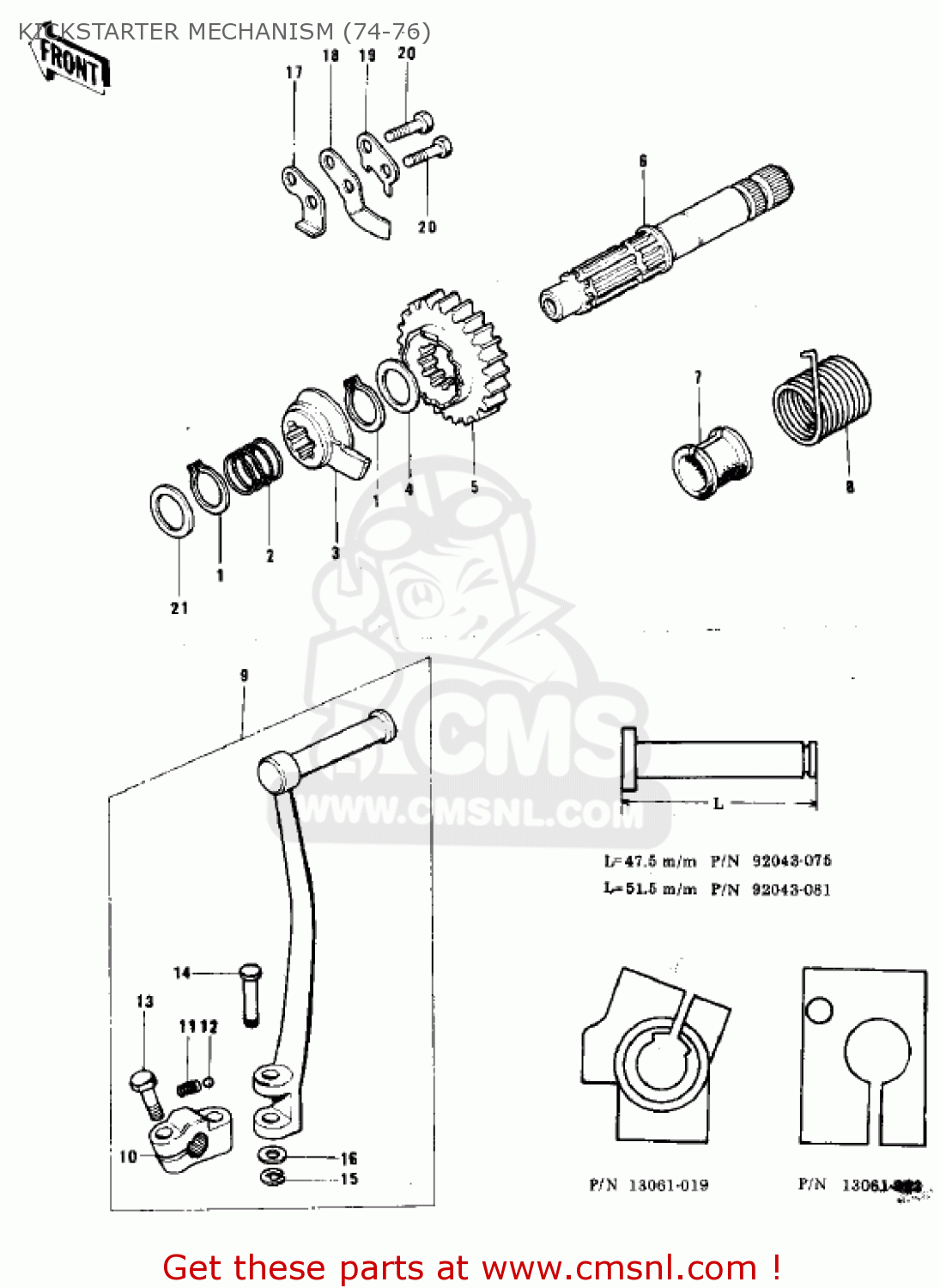

Kickstarter mechanism (74-76) diagram KX250-A4 1978
KICKSTARTER MECHANISM (74-76) KX250-A4 1978
×
prices are in EUR
ref
part #
description
quantity
1
92033026
ref: 1
CIRCLIP
€ 6.00
2
92081097
ref: 2
SPRING
€ 7.50
3
13078007
ref: 3
RATCHET
€ 50.00
4
92022159
ref: 4
WASHER-THRUST,25MM
€ 5.50
5
13068025
ref: 5
GEAR-KICKSTARTER
€ 26.00
6
13066034
ref: 6
SHAFT,KICKSTARTER
€ 38.50
7
13070007
ref: 7
GUIDE,KICK SPRING
€ 5.50
8
92082003
ref: 8
SPRING-KICKSTARTER
€ 19.00
9
13058056
ref: 9
PEDAL ASY,KICKSTART
€ 133.50
10
13061019
ref: 10
BOSS,KICK PEDAL
€ 18.00
10
13061023
ref: 10
BOSS,KICK PEDAL
€ 18.00
11
92081020
ref: 11
SPRING-KICK PEDAL
€ 2.50
12
600A0800
ref: 12
BALL-STEEL,1/4
€ 0.50
13
115G0830
ref: 13
BOLT-SMALL-UPSET,8X30
€ 3.00
13
92001144
ref: 13
BOLT,HEX HEAD,8X30
€ 3.00
14
92043075
ref: 14
PIN,8X41.3
€ 10.00
14
92043081
ref: 14
PIN-KICK PEDAL
€ 8.50
15
482K5000
ref: 15
CIRCLIP,5MM
€ 2.00
16
410B0800
ref: 16
WASHER-PLAIN-SMALL,8M
€ 0.50
17
13072016
ref: 17
STOPPER,KICKSHAFT
€ 5.50
18
13206011
ref: 18
GUIDE,KICK STOPPER
€ 3.00
19
92031010
ref: 19
WASHER,KICK STOPPER
€ 2.50
20
112G0618
ref: 20
BOLT-UPSET
€ 0.50
21
92022252
ref: 21
WASHER
€ 4.00
