HANDLEBAR (74-76)
KX250-A4 1978

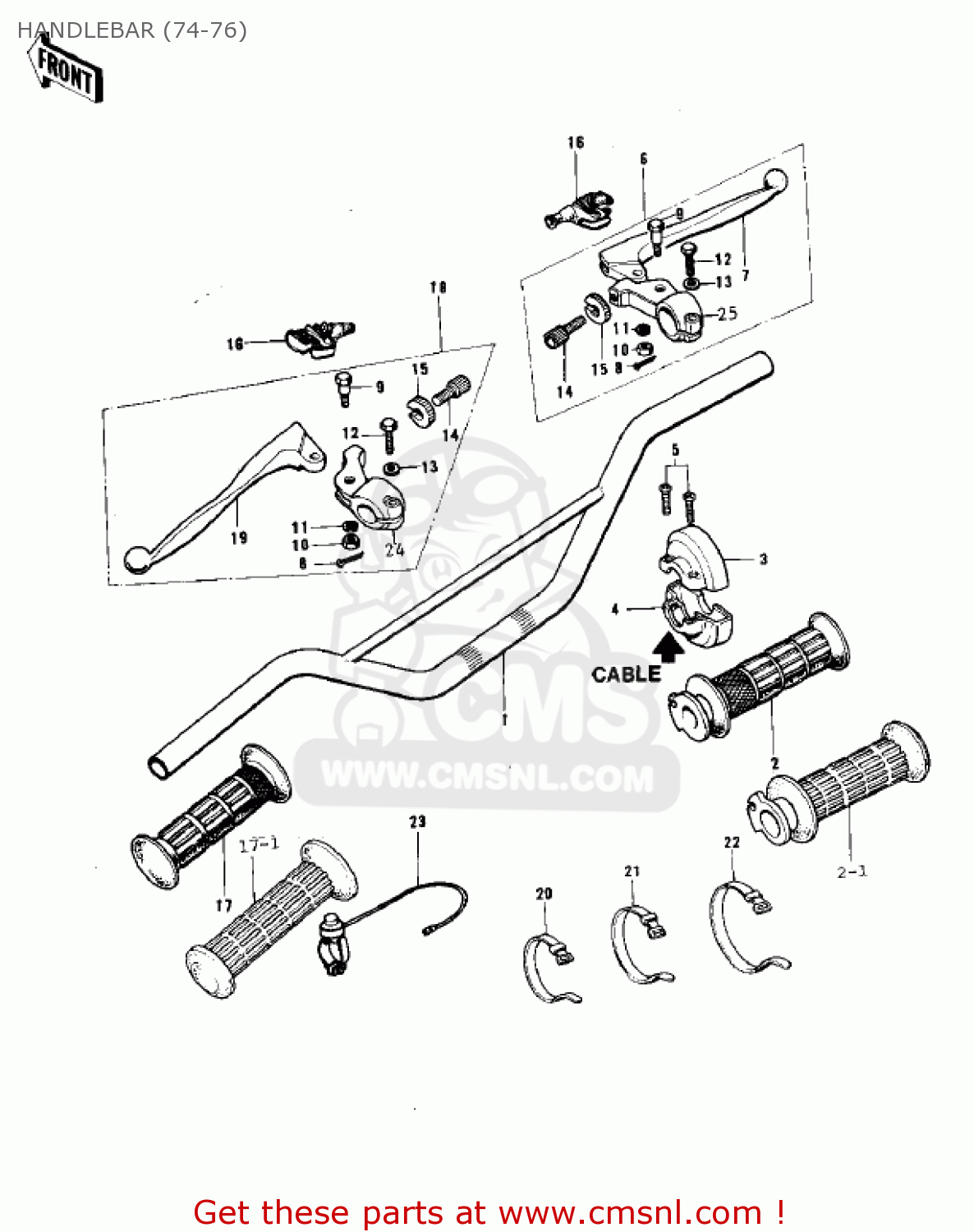

Handlebar (74-76) diagram KX250-A4 1978
HANDLEBAR (74-76) KX250-A4 1978
×
prices are in EUR
ref
part #
description
quantity
1
46004028
ref: 1
HANDLEBAR
€ 63.00
1
46004032
ref: 1
KX250A/-A3
HANDLEBAR
€ 71.50
2
46019031
ref: 2
GRIP ASSY,THROTTLE
€ 25.50
2-1
46019037
ref: 2-1
GRIP,THROTTLE
€ 37.00
3
320991014
ref: 3
CASE,UPP,RH
€ 26.50
4
460915006
ref: 4
HOUSING-ASSY-CONTROL
€ 27.00
5
220B0518
ref: 5
SCREW-PAN HEAD,5X18
€ 2.50
6
46021024
ref: 6
LEVER ASSY,FRNT BRAKE
€ 28.50
6
46021032
ref: 6
KX250A/-A3
LEVER ASSY,FRNT BRAKE
€ 31.00
7
46058017
ref: 7
LEVER,FRONT BRAKE
€ 12.00
7
46058018
ref: 7
KX250A/-A3
LEVER-GRIP,FRONT BRAK
€ 35.00
8
550D1615
ref: 8
PIN-COTTER,1.6X15
€ 1.50
9
92001140
ref: 9
BOLT,HEX HEAD,6MM
€ 10.00
10
320B0600
ref: 10
NUT-CASTLE
€ 2.00
11
461F0600
ref: 11
WASHER-SPRING,6MM
€ 0.50
12
110N0622
ref: 12
BOLT,6X22
€ 2.00
13
411B0600
ref: 13
WASHER-PLAIN,6MM
€ 0.50
14
46055009
ref: 14
SCREW,CABLE ASJUST
€ 13.00
15
46056006
ref: 15
NUT,CABLE ADJUST NUT
€ 6.00
16
490061017
ref: 16
BOOTS,LEVER HOLDER
€ 13.00
17
46075025
ref: 17
RUBBER,L.H GRIP
€ 14.50
17-1
46075027
ref: 17-1
KX250A/-A3
RUBBER,L.H GRIP
€ 6.00
18
46076037
ref: 18
LEVER ASSY,CLUTCH
€ 28.50
18
46076048
ref: 18
KX250A/-A3
LEVER,ASSY,CLUTCH
€ 52.00
19
46092020
ref: 19
LEVER,CLUTCH
€ 16.00
19
46092021
ref: 19
KX250A/-A3
LEVER-GRIP,CLUTCH
€ 23.50
20
92072030
ref: 20
L=123M/M
BAND,SHORT
€ 3.00
21
92072031
ref: 21
L=149M/M
BAND,MIDDLE
€ 3.00
21
92072056
ref: 21
KX250-A3
BAND,RUBBER
€ 3.00
22
92072035
ref: 22
L-80M/M
BAND,L=80
€ 4.00
22
92072032
ref: 22
KX250-A3
BAND,LONG
€ 3.00
23
270101018
ref: 23
SWITCH ASSY,ENG,STOP
€ 40.50
24
46094014
ref: 24
HOLDER,CLUTCH LEVER
€ 57.00
25
46060010
ref: 25
HOLDER,FR BRAKE LEVER
€ 43.50
