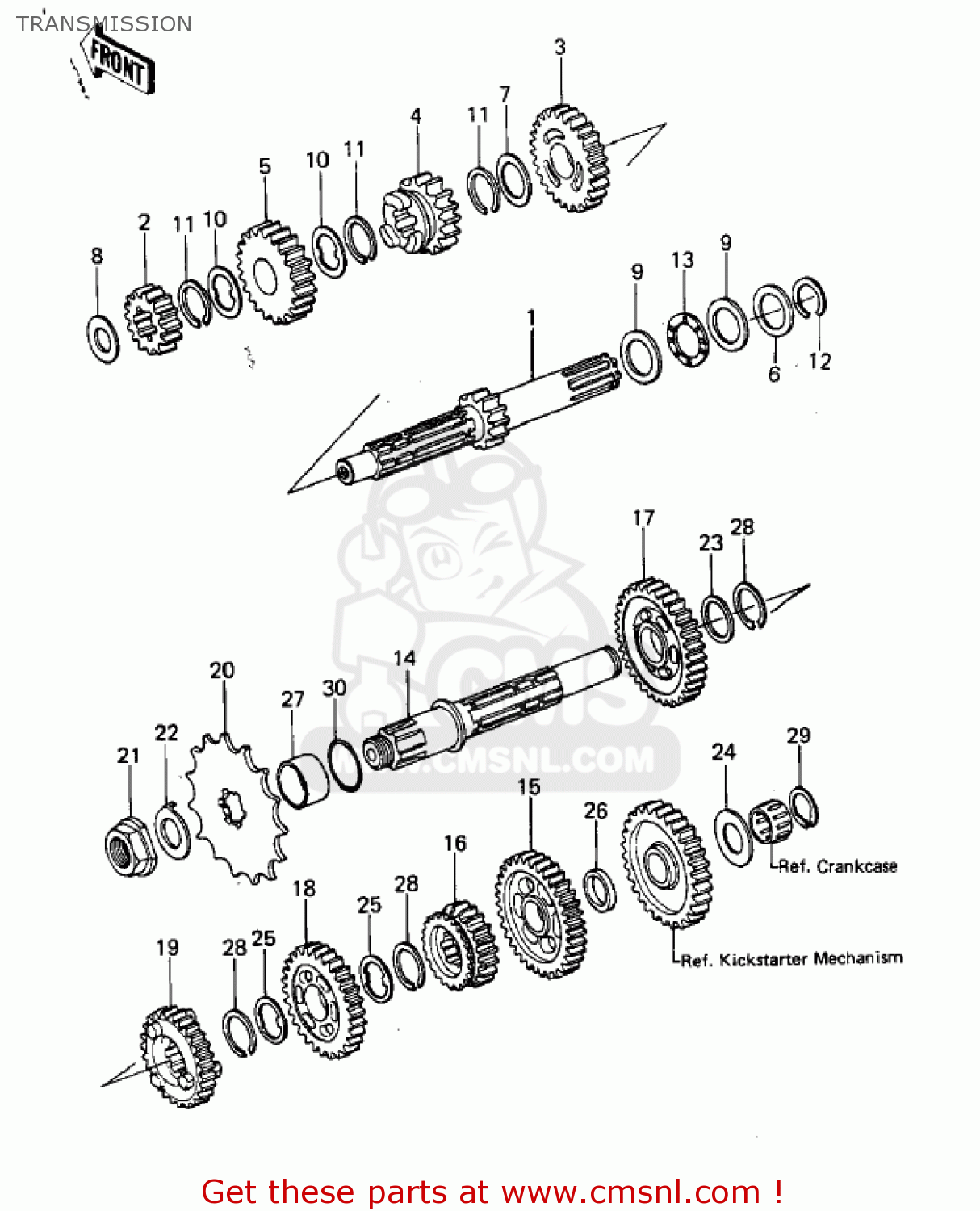

TRANSMISSION

ref

part #

description

quantity

1

13127053
ref: 1

SHAFT, DRIVE

€ 100.00

2

131291022
ref: 2

2ND GEAR,DRIVE SHAFT

€ 66.00

3

131291050
ref: 3

TOP GEAR,DRV SHFT,24T

€ 38.00

4

131291284
ref: 4

GEAR,INPUT 3RD,20T

€ 131.00

5

13134026
ref: 5

GEAR,INPUT 4TH,20T

€ 63.00

6

92022112
ref: 6

WASHER,20.5X30X1,STEE

€ 6.00

7

92022198
ref: 7

WASHER-PLAIN

€ 3.50

8

92022279
ref: 8

WASHER,15.3X25X1

€ 7.00

9

92022314
ref: 9

WASHER,20X35X1

€ 4.50

10

92024039
ref: 10

WASHER-LOCK

€ 4.00

11

92033025
ref: 11

CIRCLIP,25MM

€ 3.00

12

92033029
ref: 12

CIRCLIP,18MM

€ 6.50

13

92046052
ref: 13

BEARING-NEEDLE,AXK110

€ 22.00

14

131281007
ref: 14

SHAFT-TRANSMISSION OU

€ 134.00

15

13129058
ref: 15

LOW GEAR,OUTPUT SHAFT

€ 110.50

16

131291051
ref: 16

TOP GEAR,OUT SHFT,21T

€ 56.50

17

13131044
ref: 17

GEAR,OUTPUT 2ND,26T

€ 103.00

18

13133044
ref: 18

GEAR,OUTPUT 3RD,26T

€ 96.50

19

131291285
ref: 19

GEAR,OUTPUT 4TH,21T

€ 110.50

20

131441005
ref: 20

SPROCKET-OUTPUT,14T

€ 30.00

20

131441027
ref: 20

ENGINE SPROCKET,13T

€ 28.50

20

13144069
ref: 20

SPROCKET-OUTPUT,15T

€ 34.00

21

920151013
ref: 21

NUT,LOCK,16MM

€ 34.50

22

920221017
ref: 22

WASHER,CLAW,16.5X36X1

€ 2.50

23

92022198
ref: 23

WASHER-PLAIN

€ 3.50

24

92022270
ref: 24

WASHER,PLAIN

€ 7.00

25

92024039
ref: 25

WASHER-LOCK

€ 4.00

26

92026114
ref: 26

SPACER,17.3X25X4.0

€ 4.50

27

92027287
ref: 27

COLLAR,25X32X14.4

€ 8.00

28

92033025
ref: 28

CIRCLIP,25MM

€ 3.00

29

92033032
ref: 29

CIRCLIP

€ 3.00

30

92055022
ref: 30

'O' RING

€ 4.00

all assemblies
