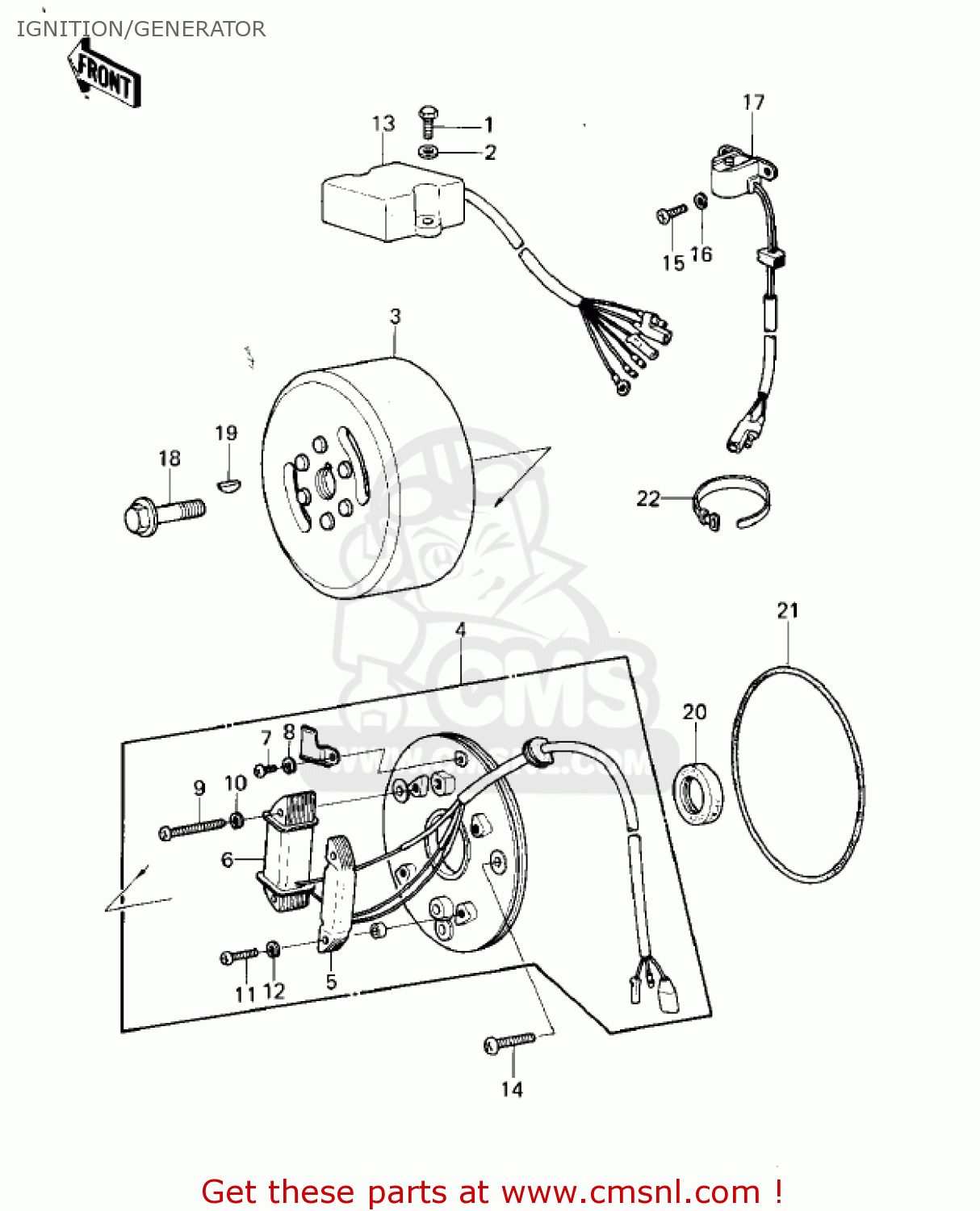

IGNITION/GENERATOR

ref

part #

description

quantity

1

112G0616
ref: 1

BOLT UPSET,6X16

€ 1.00

2

411B0600
ref: 2

WASHER-PLAIN,6MM

€ 0.50

3

210501011
ref: 3

FLYWHEEL,MAGNETO

€ 316.00

4

210031021
ref: 4

STATOR ASSY,MAGNETO

€ 228.00

5

210491014
ref: 5

COIL-EXCITING

€ 111.50

6

210471008
ref: 6

COIL,LIGHTING

€ 41.50

7

220B0406
ref: 7

SCREW-PAN-CROS,4X6

€ 2.50

8

461F0400
ref: 8

WASHER-SPRING,4MM

€ 0.50

9

220B0525
ref: 9

SCREW-PAN-CROS,5X25

€ 2.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

220B0520
ref: 11

SCREW-PAN-CROS

€ 0.50

12

461F0500
ref: 12

WASHER-SPRING,5MM

€ 0.50

13

211191012
ref: 13

IGNITER

€ 313.50

14

220B0625
ref: 14

SCREW-PAN HEAD,6X25

€ 1.50

15

220B0514
ref: 15

ACREW-PAN HEAD,5X14

€ 2.50

16

461F0500
ref: 16

WASHER-SPRING,5MM

€ 0.50

17

590261005
ref: 17

COIL-PULSING

€ 114.50

18

920011201
ref: 18

BOLT,ROTOR,10X40

€ 7.00

19

92038001
ref: 19

WOODRUFF KEY

€ 3.00

20

920491004
ref: 20

OIL SEAL,S-27408-LHS

€ 7.00

21

920551006
ref: 21

RING-O,MAGNETO BASE

€ 5.50

22

92072056
ref: 22

BAND,RUBBER

€ 3.00

all assemblies
