CRANKSHAFT/PISTON

KLX250A1 KLX250 1979

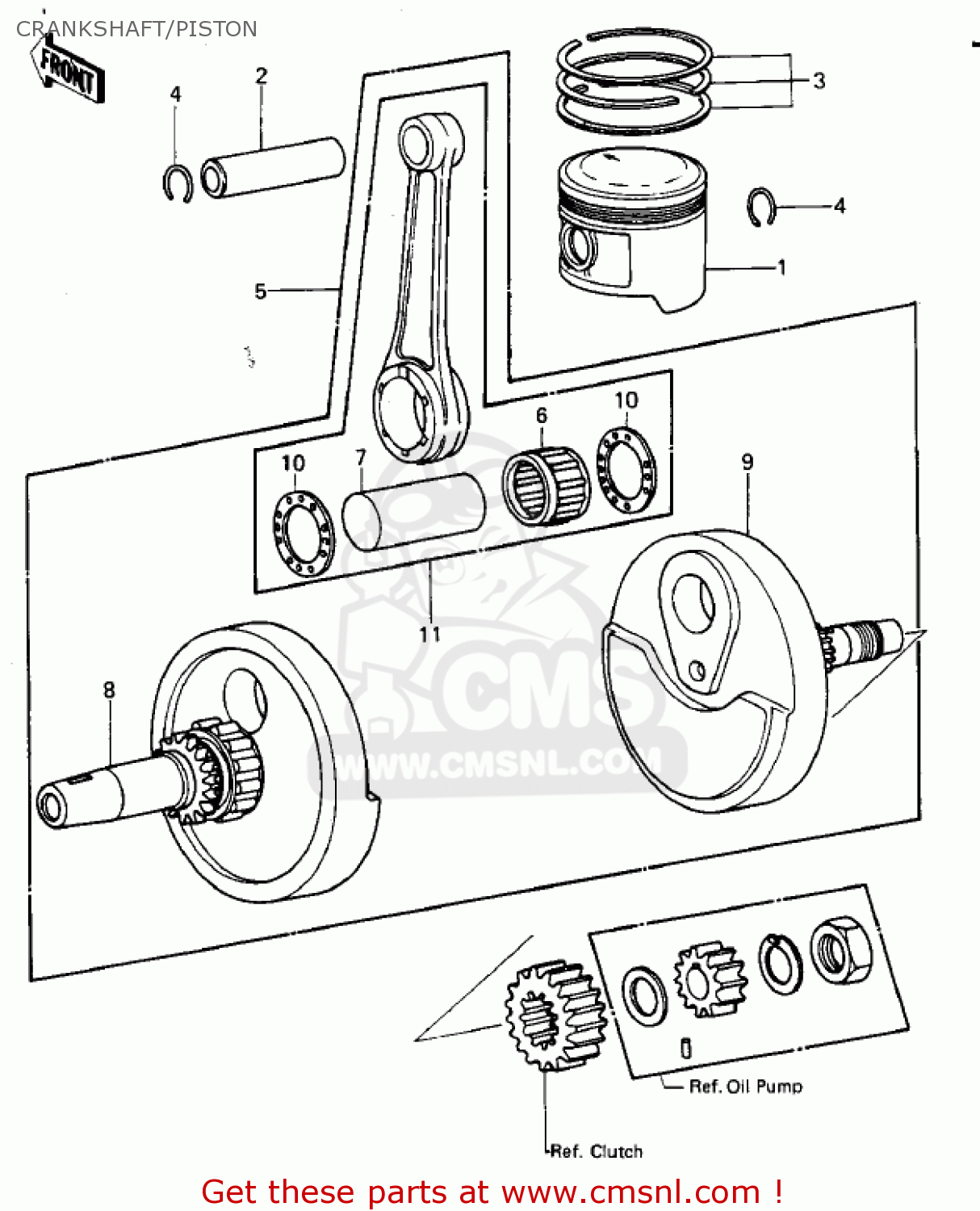

Crankshaft/piston diagram KLX250A1 KLX250 1979

prices are in EUR

ref

part #

description

quantity

130011005
ref: 1

PISTON-ENGINE,STD

€ 78.00

130291003
ref: 1

PISTON-ENGINE-L,O/S 0

€ 165.00

130271005
ref: 1

PISTON-ENGINE-LL,O/S

€ 81.50

13002022
ref: 2

PIN-PISTON

€ 37.00

130085012
ref: 3

RING-SET-PISTON,STD

€ 110.50

130255007
ref: 3

RING-SET-PISTON L,O/S

€ 125.50

130245008
ref: 3

RING-SET-PISTON LL,O/

€ 91.00

92036021
ref: 4

CIRCLIP-PISTON PIN

€ 0.50

130311001
ref: 5

CRANK-CONROD ASSY

€ 331.00

13034031
ref: 6

BEARING-NEEDLE,PK2939

€ 29.50

13035035
ref: 7

PIN, CRANK

€ 29.50

130375002
ref: 8

CRANKSHAFT,L.H.

€ 240.50

130371003
ref: 9

CRANKSHAFT,R.H

€ 195.00

92026087
ref: 10

SPACER,CONNECTING ROD

€ 6.50

130445005
ref: 11

SET-CONNECTING ROD

€ 224.50
