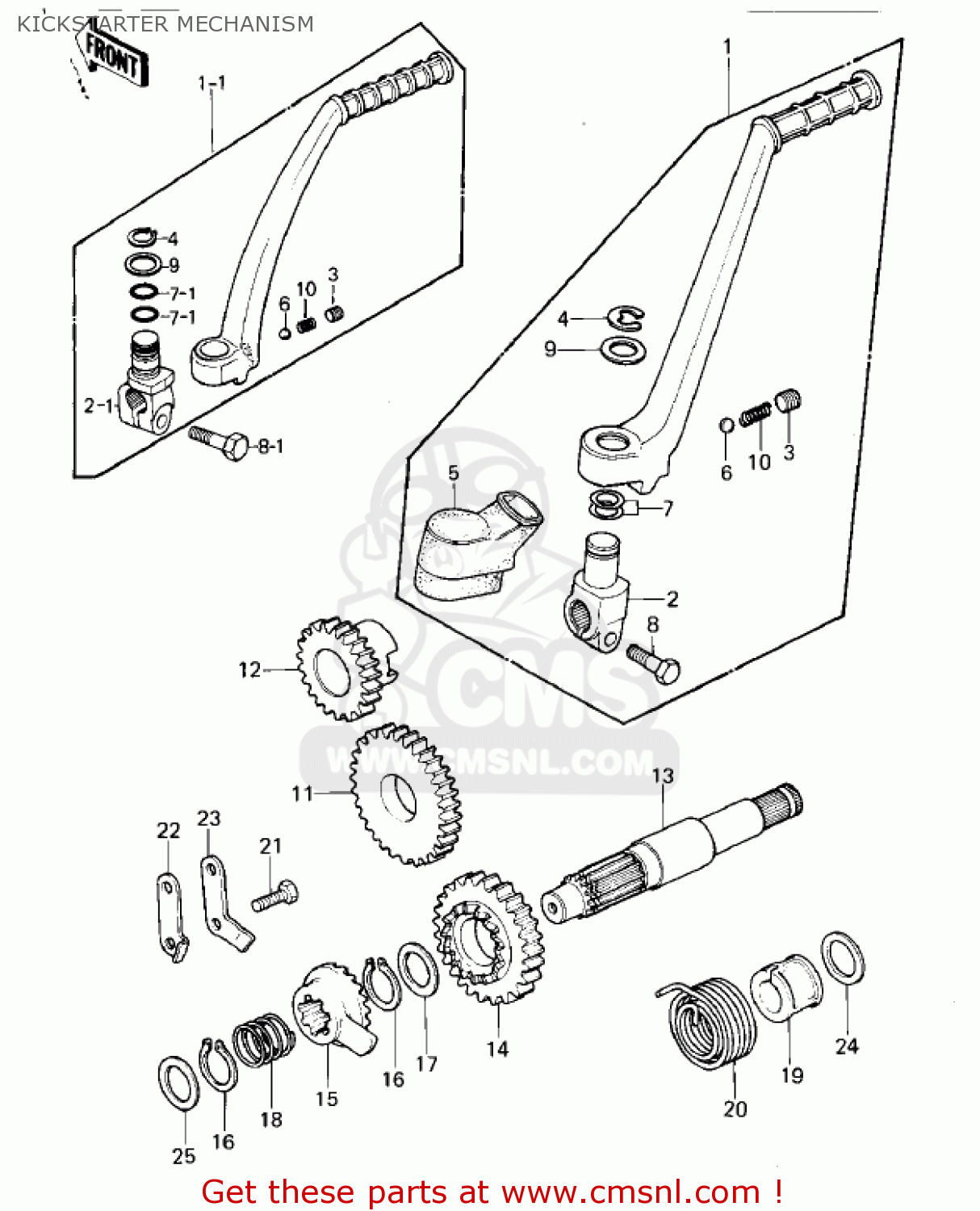

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

130641004
ref: 1
KLX250-A1

PEDAL ASSY,KICK

€ 186.50

1-1

130641027
ref: 1-1
KLX250-A2

LEVER-ASSY-KICK,PEDAL

€ 134.00

2

130611007
ref: 2
USE FOR 13064-1004

BOSS,KICK PEDAL

€ 65.50

2-1

130615001
ref: 2-1
USE FOR 13064-1009

BOSS,KICK PEDAL

€ 41.00

3

290Q0808
ref: 3

SCREW,8X8

€ 2.50

4

482K0100
ref: 4

CIRCLIP-TYPE-E,10MM

€ 0.50

5

490061006
ref: 5
USE FOR 13064-1004

BOOT,KICKSTARTER

€ 12.50

6

600A0800
ref: 6

BALL-STEEL,1/4

€ 0.50

7

670B2015
ref: 7
USE FOR 13064-1004

O RING,15MM

€ 1.00

7-1

670B2012
ref: 7-1
USE FOR 13064-1009

O RING,12MM

€ 1.00

8

920011042
ref: 8
USE FOR 13064-1004

BOLT,HEX HEAD,8X28

€ 4.00

8-1

115G0825
ref: 8-1
USE FOR 13064-1009

BOLT-HEX,HEAD,8X25

€ 3.00

9

920221019
ref: 9

WASHER,15.2X20X1

€ 3.50

10

92081020
ref: 10

SPRING-KICK PEDAL

€ 2.50

11

13073013
ref: 11

GEAR-SPUR,KICK STARTE

€ 67.50

12

13075012
ref: 12

GEAR-SPUR,KICKSTARTER

€ 56.50

13

13066044
ref: 13

SHAFT-KICK

€ 70.50

14

132161099
ref: 14

GEAR-COMP,KICKSTARTER

€ 38.50

15

130781052
ref: 15

RATCHET,KL250-D2

€ 50.50

16

480J1600
ref: 16

CIRCLIP-TYPE-C,16MM

€ 2.50

17

92022315
ref: 17

WASHER, 16.8X22X0.5

€ 4.00

18

92081122
ref: 18

SPRING,RATCHET

€ 6.00

19

13070011
ref: 19

GUIDE,KICKSTARTER SPR

€ 6.50

20

92082003
ref: 20

SPRING-KICKSTARTER

€ 19.00

21

112G0618
ref: 21

BOLT-UPSET

€ 0.50

22

13072017
ref: 22

STOPPER,KICKSTARTER

€ 9.50

23

132061004
ref: 23

GUIDE,KICK RATCHET

€ 4.00

24

92022118
ref: 24

WASHER,18.5X23X1.2

€ 3.00

25

92022269
ref: 25

WASHER,PLAIN

€ 1.00
