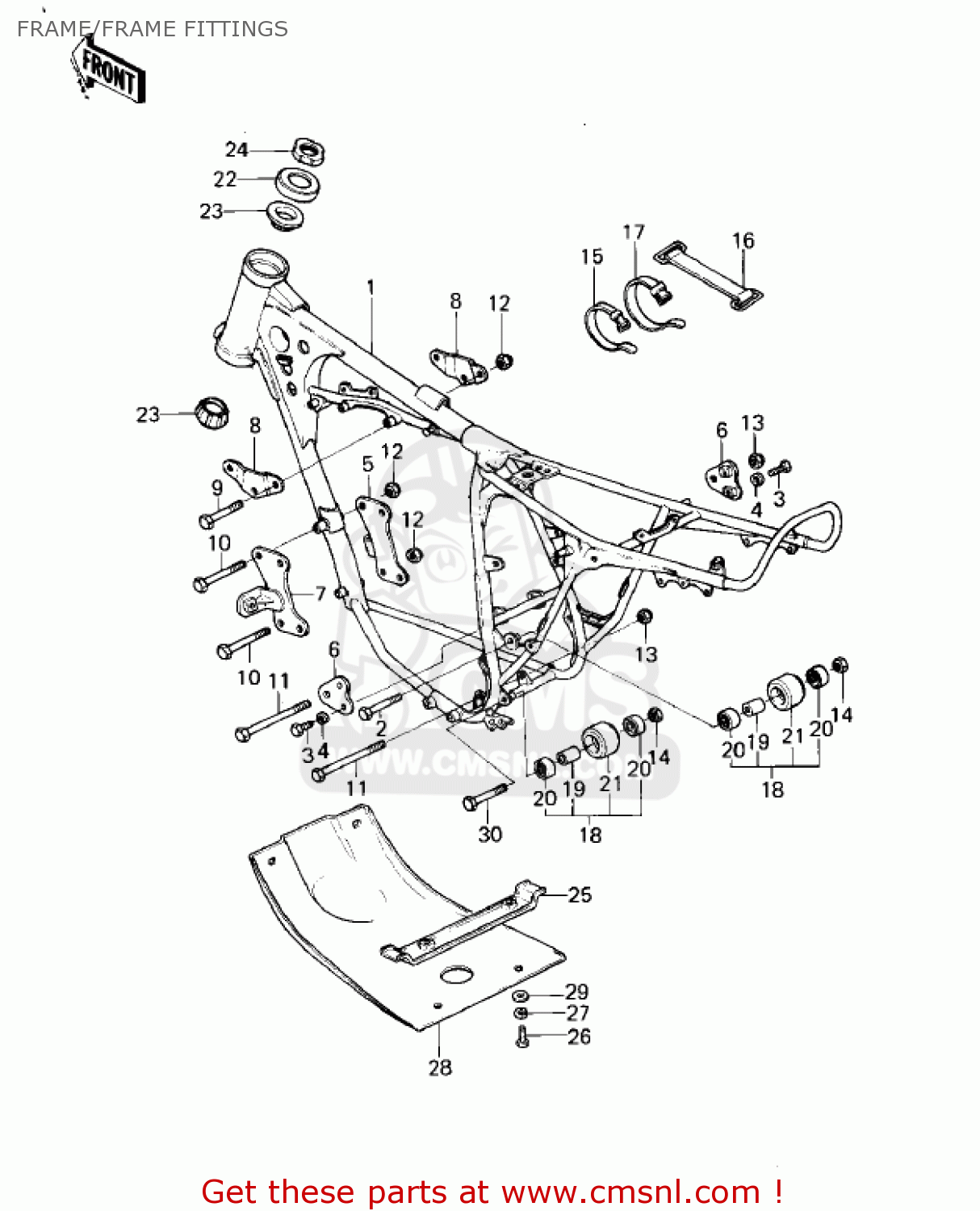

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

320021089
ref: 1

FRAME

€ 891.50

2

920011386
ref: 2

BOLT,8X55

€ 3.00

3

115G0818
ref: 3

BOLT SMALL-UPSET

€ 2.50

4

461F0800
ref: 4

WASHER-SPRING,8MM

€ 0.50

5

320291102
ref: 5

BRACKET,ENGINE,FR,R.H

€ 8.50

6

320291104
ref: 6

BRACKET,ENGINE REAR

€ 4.00

7

320291105
ref: 7

BRACKET-ENGINE,FR

€ 15.50

8

320291108
ref: 8

BRACKET,ENGINE HEAD

€ 5.50

9

110G0860
ref: 9

BOLT,HEX HEAD,8X60

€ 3.50

10

920011397
ref: 10

BOLT,8X63

€ 1.50

11

920011282
ref: 11

BOLT,HEX HEAD,10X105

€ 5.50

12

920151124
ref: 12

NUT,LOCK,8MM

€ 3.50

13

92019021
ref: 13

NUT,LOCK,10M/M

€ 2.00

14

920151124
ref: 14

NUT,LOCK,8MM

€ 3.50

15

92072031
ref: 15

BAND,MIDDLE

€ 3.00

16

92072045
ref: 16

BAND-OIL TANK

€ 10.00

17

92072056
ref: 17

BAND,RUBBER

€ 3.00

18

921221013
ref: 18

ROLLER,ASSY

€ 58.50

19

920271081
ref: 19

COLLAR

€ 6.50

20

920451009
ref: 20

BEARING-BALL,608LLU/2

€ 34.50

21

921221014
ref: 21

ROLLER

€ 9.50

22

46098015
ref: 22

CAP,STEERING STEM

€ 3.50

23

92047017
ref: 23

CONE,STRNG,STEM

€ 49.50

24

920151546
ref: 24

NUT,25MM,T=12

€ 14.50

25

110345009
ref: 25

BRACKET,ENGINE GUARD

€ 14.50

26

112B0614
ref: 26

BOLT-UPSET 6X14

€ 2.50

27

461F0600
ref: 27

WASHER-SPRING,6MM

€ 0.50

28

550205001
ref: 28

GUARD,ENGINE

€ 22.50

29

92022125
ref: 29

WASHER,6.5X20X1.6

€ 1.00

30

920011182
ref: 30

BOLT,10X45

€ 6.00
