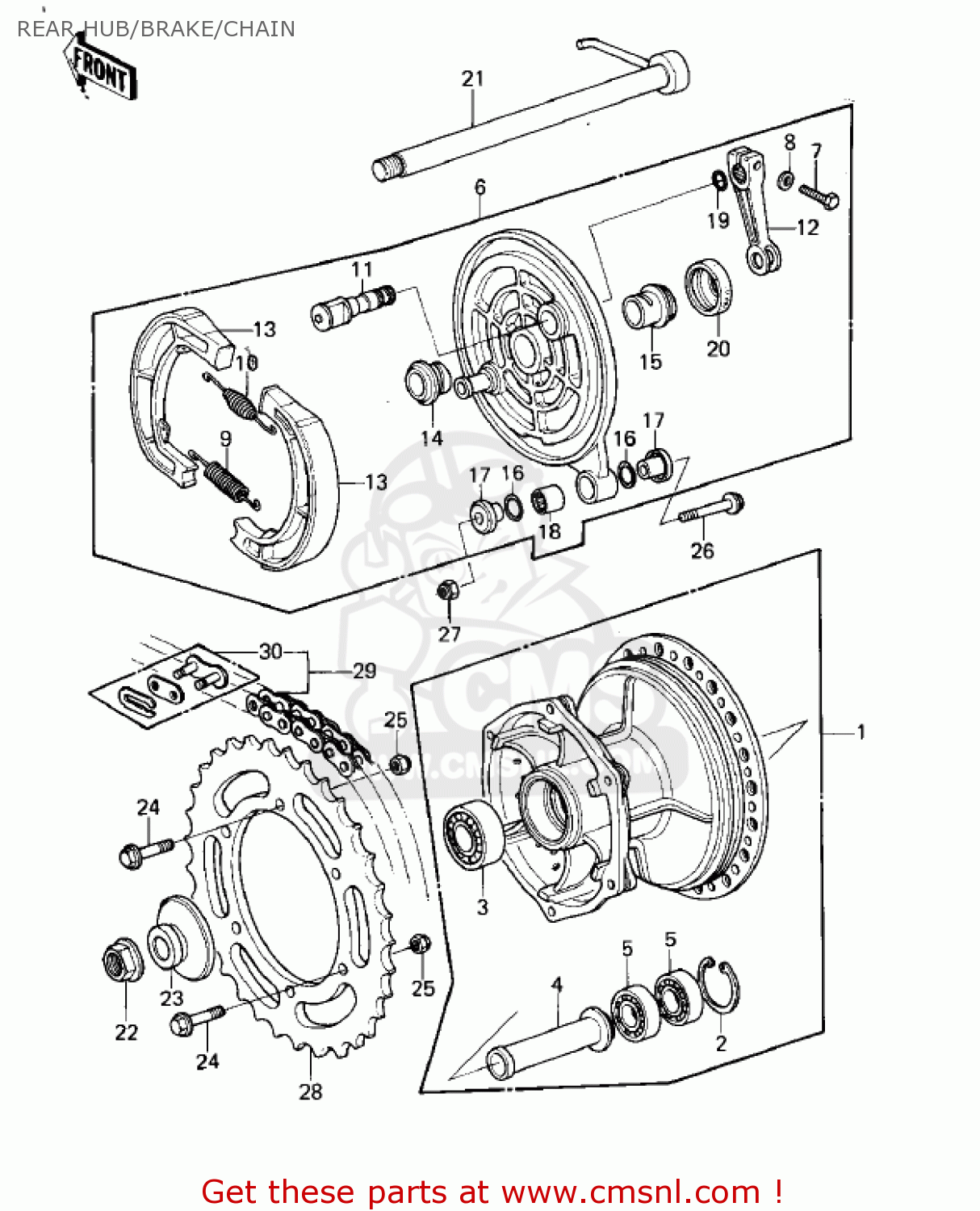

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

410341017
ref: 1

DRUM ASSY,REAR

€ 343.50

2

481J3500
ref: 2

CIRCLIP-TYPE-C,35MM

€ 1.00

3

601B6004UU
ref: 3

BEARING-BALL,#6004UUC

€ 27.00

4

920271207
ref: 4

COLLAR,REAR DRUM

€ 36.00

5

601B6003U
ref: 5

BEARING-BALL,#6003UC3

€ 21.50

6

410351025
ref: 6

PANEL ASSY,REAR

€ 318.50

7

112G0622
ref: 7

BOLT-UPSET

€ 2.50

8

410B0600
ref: 8

WASHER-PLAIN-SMALL,6M

€ 0.50

9

920811766
ref: 9

SPRING,BRAKE SHOE

€ 5.50

10

920811550
ref: 10

SPRING,BRAKE SHOE

€ 6.00

11

410501007
ref: 11

CAM SHAFT

€ 19.50

12

410531008
ref: 12

LEVER BRAKE,CAM REAR

€ 58.50

13

42019010
ref: 13

SHOE,BRAKE (MCA)

€ 26.00

14

420361009
ref: 14

SLEEVE,RR BRAKE PANEL

€ 39.50

15

420361035
ref: 15

SLEEVE,RR PANEL,RH

€ 48.50

16

670B2011
ref: 16

O RING,11MM

€ 1.00

17

920271040
ref: 17

COLLAR,L=11.5

€ 12.50

18

920461009
ref: 18

BEARING-NEEDLE,HK1216

€ 14.50

1

670B2012
ref: 1

O RING,12MM

€ 1.00

20

920931004
ref: 20

OIL SEAL

€ 3.50

21

410684002
ref: 21

AXLE,RR

€ 78.50

22

920151015
ref: 22

NUT,16MM

€ 13.50

23

920271206
ref: 23

COLLAR,REAR AXLE

€ 31.00

24

920011040
ref: 24

BOLT,HEX HEAD,8X32

€ 5.50

25

920151124
ref: 25

NUT,LOCK,8MM

€ 3.50

26

920011041
ref: 26

BOLT,HEX HEAD,8X36

€ 6.50

27

920151124
ref: 27

NUT,LOCK,8MM

€ 3.50

28

420411036
ref: 28

REAR SPROCKET,45T

€ 79.00

28

420411037
ref: 28

REAR SPROCKET,44T

€ 70.00

28

420411038
ref: 28

REAR,SPROCKET,48T

€ 70.00

29

920571032
ref: 29

CHAIN ASSY,520TRX108L

€ 99.50

30

920581002
ref: 30

JOINT,DRIVE CHAIN

€ 6.00

all assemblies
