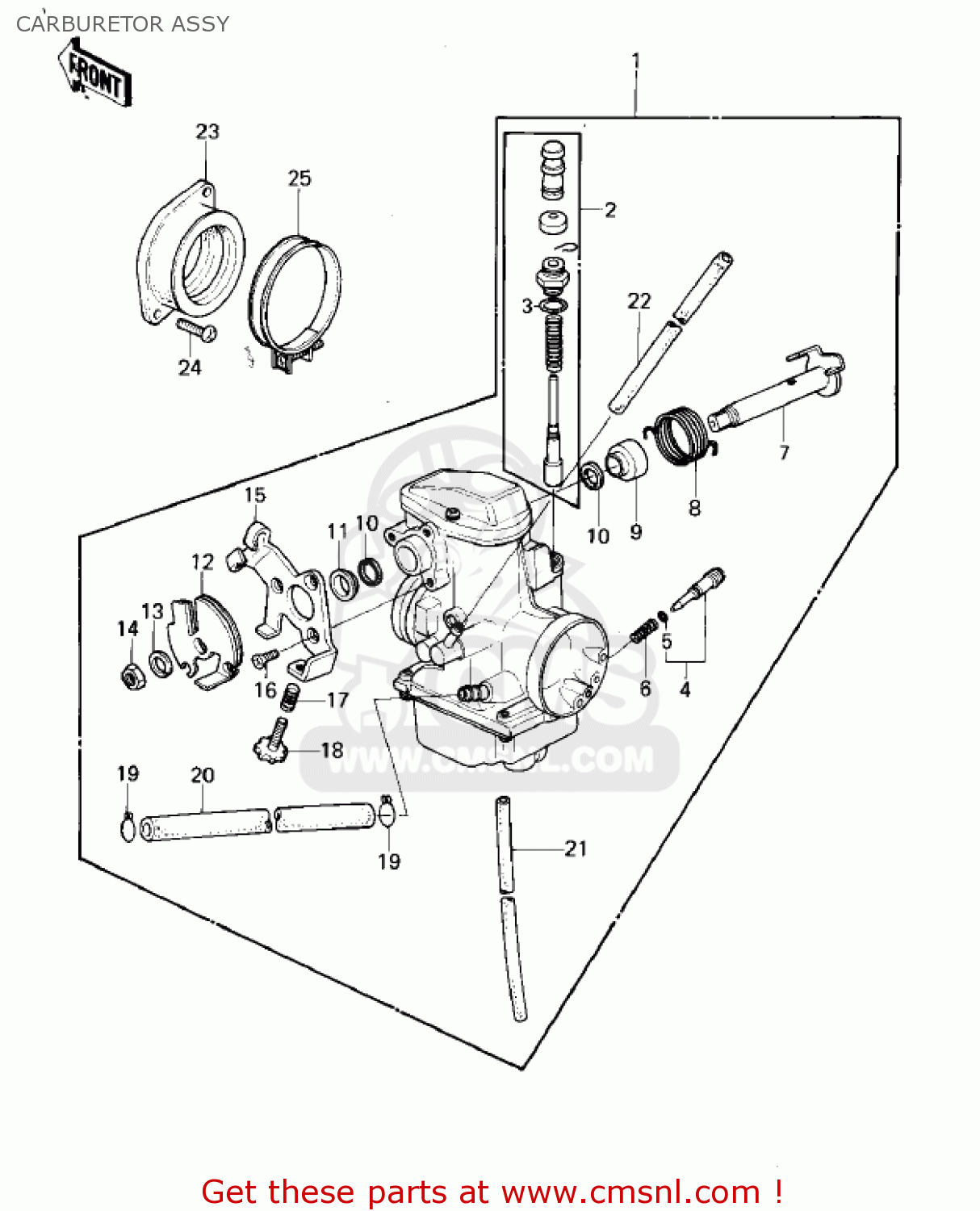

CARBURETOR ASSY

ref

part #

description

quantity

1

160011251
ref: 1
KLX250-A1

CARBURETOR ASSY

€ 349.00

1

160011251
ref: 1
KLX250-A2

CARBURETOR ASSY

€ 349.00

2

160161026
ref: 2

PLUNGER,STARTER

€ 40.50

3

670B1509
ref: 3

O RING,9MM

€ 1.00

4

160141017
ref: 4

SCREW,PILOT ADJUST

€ 7.50

5

16038022
ref: 5

GASKET,O-RING

€ 4.50

6

16022007
ref: 6

SPRING-THR STOP SCREW

€ 5.50

7

160411010
ref: 7

SHAFT,THROTTLE

€ 26.50

8

920811184
ref: 8

SPRING,THROTTLE VALVE

€ 7.00

9

920261060
ref: 9

GUIDE,RETURN SPRING

€ 8.50

10

110091157
ref: 10

OIL SEAL,THROTTLE

€ 2.50

11

16073003
ref: 11

INSULATOR

€ 3.50

12

131681049
ref: 12

LEVER,THROTTLE

€ 26.50

13

461F0800
ref: 13

WASHER-SPRING,8MM

€ 0.50

14

315B0800
ref: 14

NUT,8MM

€ 0.50

15

110341585
ref: 15

BRACKET,CABLE GUIDE

€ 27.50

16

221B0514A
ref: 16

SCREW-CNTSNK HD,5X14

€ 2.50

17

16022010
ref: 17

SPRING,THROTTLE ADJST

€ 4.50

18

160211016
ref: 18

SCREW,THROTTLE ADJUST

€ 7.00

19

920371184
ref: 19

CLAMP,HOSE

€ 1.00

20

920591123
ref: 20

TUBE,7.5X12.5X225

€ 17.00

21

920591095
ref: 21

HOSE,OVERFLOW,3.5X450

€ 16.50

22

920591096
ref: 22

HOSE,AIR VENT,4.5X250

€ 11.50

23

160651024
ref: 23

HOLDER-CARBURETOR

€ 19.00

24

220B0614
ref: 24

SCREW-PAN HEAD,6X14

€ 2.00

25

920371006
ref: 25

CLAMP

€ 9.50
