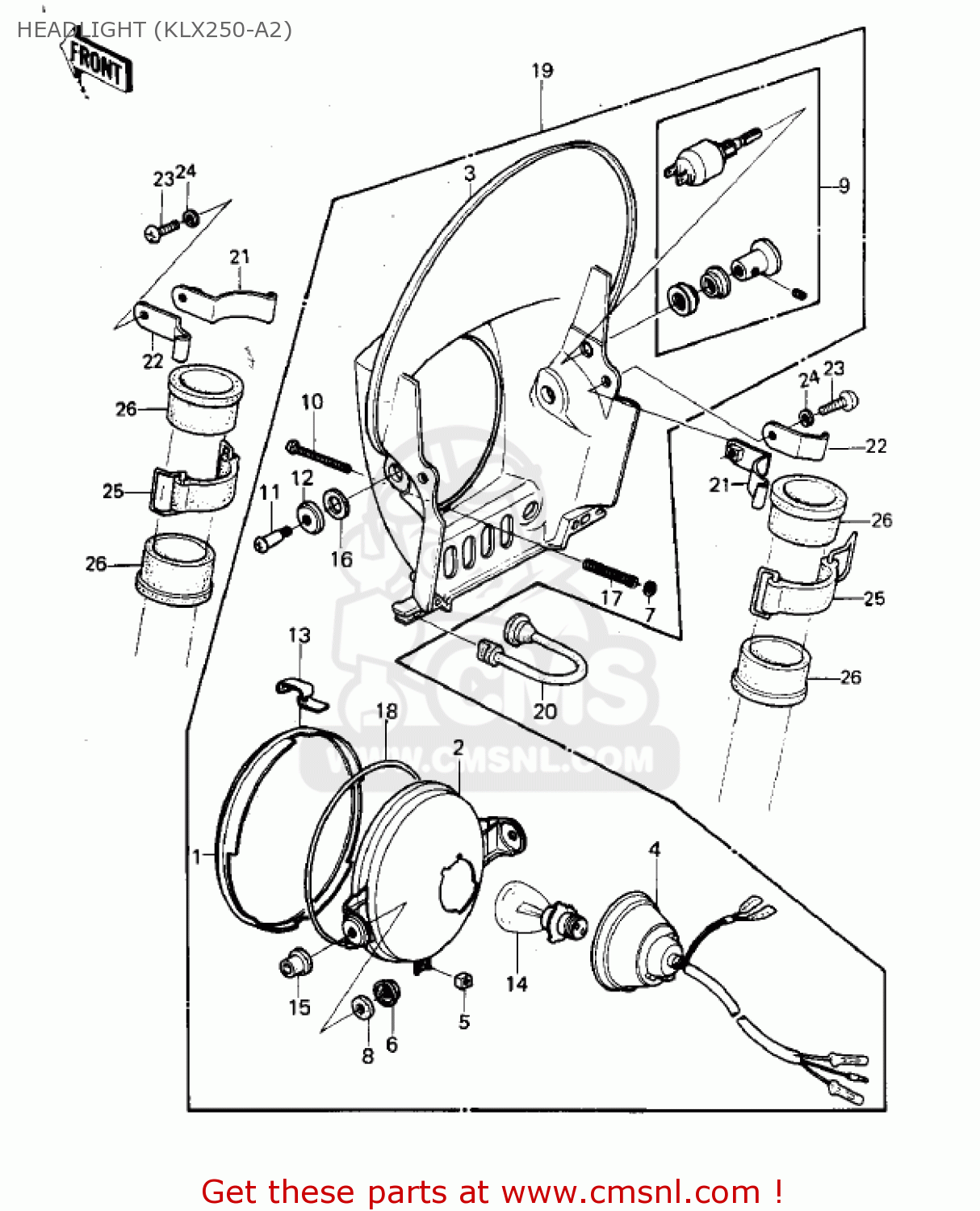

HEADLIGHT (KLX250-A2)

ref

part #

description

quantity

1

140254002
ref: 1

COVER,HEAD LAMP

€ 18.00

2

230044001
ref: 2

LENS UNIT,HEAD LAMP

€ 35.00

3

2300550027F
ref: 3

BODY-COMP-HEAD LAMP,L

€ 102.00

4

230084001
ref: 4

SOCKET-ASSY,HEAD LAMP

€ 51.00

5

23020018
ref: 5

NUT,4MM,FOCUS ADJUST

€ 3.00

6

23020023
ref: 6

NUT,5MM

€ 3.00

7

23021004
ref: 7

WASHER,4.1X8X0.8

€ 2.00

8

23021012
ref: 8

WASHER

€ 3.00

9

270044001
ref: 9

SWITCH ASSY,HEAD LAMP

€ 48.50

10

920094002
ref: 10

SCREW,ADJUSTING,4X43

€ 4.00

11

920094003
ref: 11

SCREW,HEAD LAMP

€ 1.50

12

920224005
ref: 12

WASHER,HEAD LAMP

€ 3.00

13

920374001
ref: 13

CLAMP,HEAD LAMP

€ 6.00

14

920694001
ref: 14

BULB,6V-35/25W

€ 9.00

15

920754009
ref: 15

DAMPER RUBBER,HD LAMP

€ 2.50

16

920754010
ref: 16

DAMPER,HEAD LAMP

€ 2.50

17

920814003
ref: 17

SPRING,FOCUS ADJUST

€ 1.50

18

920934001
ref: 18

SEAL,HEAD LAMP

€ 3.50

19

230014001
ref: 19

HEAD LAMP ASSY

€ 166.50

20

92072077
ref: 20

BAND

€ 3.50

21

110341718
ref: 21

BRACKET,HEAD LAMP BOD

€ 2.00

22

110341719
ref: 22

BRACKET,HEAD LAMP BOD

€ 2.00

23

220B0616
ref: 23

SCREW-PAN HEAD,6X16

€ 2.50

24

461F0600
ref: 24

WASHER-SPRING,6MM

€ 0.50

25

92072076
ref: 25

BAND,L=40

€ 14.00

26

920751236
ref: 26

DAMPER RUBBER,LAMP

€ 8.50
