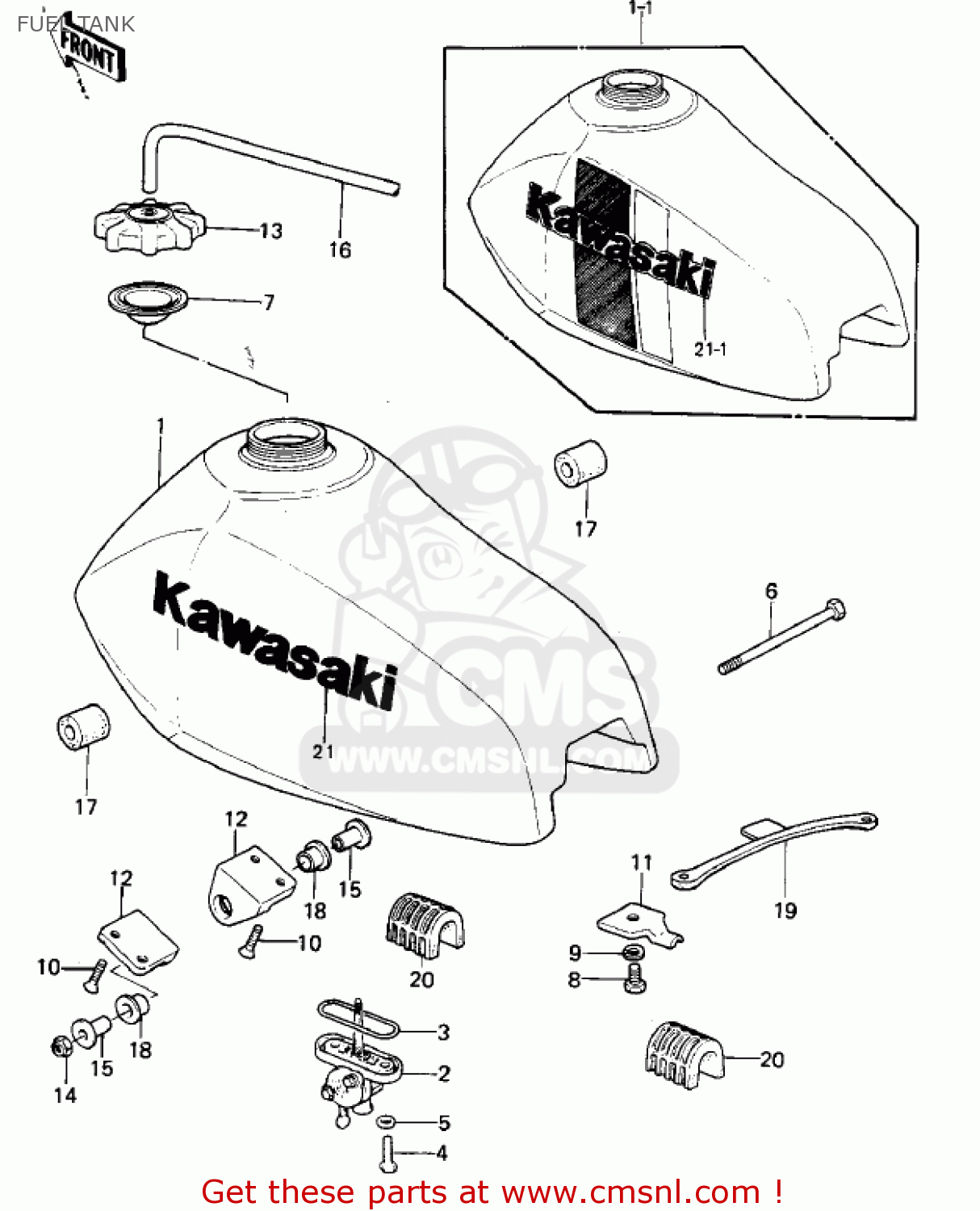

FUEL TANK

ref

part #

description

quantity

1

5100110806W
ref: 1
KLX250-A1

TANK-COMP-FUEL,L.GREN

€ 325.00

1-1

5100151066W
ref: 1-1
KLX250-A2

TANK-COMP-FUEL,L.GREN

€ 267.00

2

510234002
ref: 2

COCK ASSY,FUEL

€ 37.00

3

51039003
ref: 3

'O' RING

€ 4.00

4

920011091
ref: 4

BOLT,6X20,FUEL TAP

€ 2.50

5

92022183
ref: 5

WASHER,6.2X11X1.5

€ 2.50

6

112G06105
ref: 6

BOLT-UPSET,6X105

€ 1.50

7

110091452
ref: 7

GASKET,FUEL TANK CAP (NAS)

€ 15.00

8

112G0610
ref: 8

BOLT,6X10

€ 0.50

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

221B0614
ref: 10

SCREW-CNTSNK HD,6X14

€ 2.50

11

320521009
ref: 11

BRACKET,FUEL TANK

€ 4.50

12

320521010
ref: 12

BRACKET,FUEL TANK

€ 34.00

13

510491006
ref: 13

CAP-TANK,FUEL

€ 21.50

14

92019008
ref: 14

NUT-LOCK,6MM

€ 3.00

15

920261015
ref: 15

SPACER,FUEL TANK BRAC

€ 7.00

16

920591022
ref: 16

TUBE,VINYL

€ 2.50

17

920751047
ref: 17

DAMPER RUBBER,F,TANK

€ 3.00

18

920751048
ref: 18

DAMPER,FUEL

€ 3.00

19

920721033
ref: 19

BAND,FUEL TANK

€ 6.00

20

920751027
ref: 20

DAMPER RUBBER,FL TANK

€ 8.00

21

560141023
ref: 21
KLX250-A1

FUEL TANK DECAL

€ 19.00

21-1

560144005
ref: 21-1
KLX250-A2

EMBLEM, TANK,L.H

€ 14.00

21-1

560144006
ref: 21-1
KLX250-A2

EMBLEM,TANK,R.H

€ 18.00
