SUSPENSION

KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

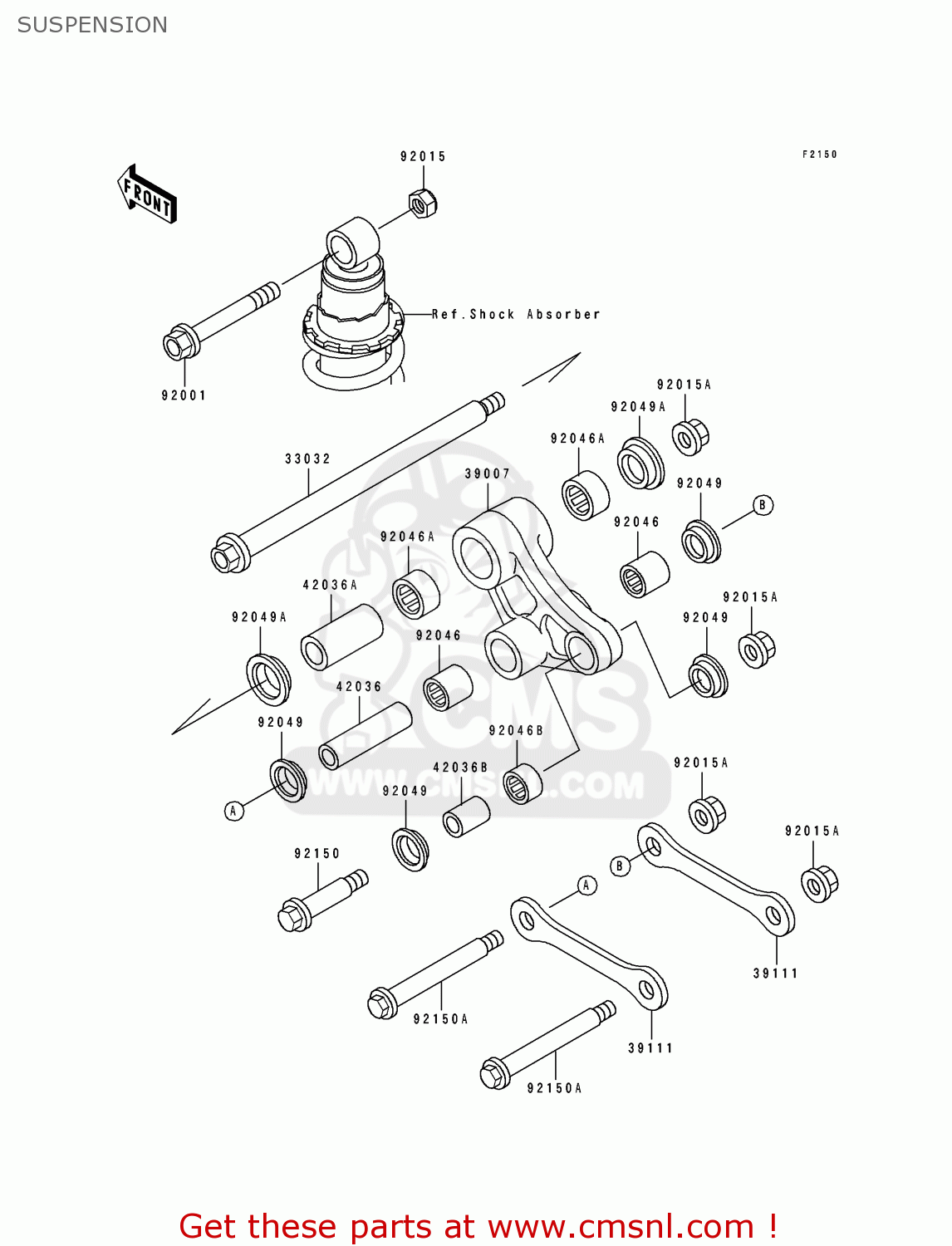

Suspension diagram KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

33032

330321129
ref: 33032

SHAFT-SWING ARM

€ 50.50

39007

390071119
ref: 39007

ARM-SUSP,UNI TRAK

€ 195.50

39111

391111119
ref: 39111

ROD-TIE,SUSPENSION

€ 29.00

42036

420361205
ref: 42036

SLEEVE,15X20X82

€ 18.50

42036A

420361207
ref: 42036A

SLEEVE,20X28X60

€ 22.50

42036B

420361208
ref: 42036B

SLEEVE,15X20X30

€ 10.00

92001

920011693
ref: 92001

BOLT,FLANGED,12X88

€ 11.00

92015

920151375
ref: 92015

NUT,12MM

€ 4.50

92015A

920151407
ref: 92015A

NUT,14MM

€ 6.50

92046

920461110
ref: 92046

BEARING-NEEDLE,BM2027

€ 22.50

92046A

920461111
ref: 92046A

BEARING-NEEDLE,BM2817

€ 21.50

92046B

920461112
ref: 92046B

BEARING-NEEDLE,BM2027

€ 21.50

92049

920491109
ref: 92049

SEAL-OIL,ARM,CNT

€ 6.50

92049A

920491181
ref: 92049A

SEAL-OIL

€ 7.50

92150

921501479
ref: 92150

BOLT,FLANGED,14X53

€ 10.50

92150A

921501480
ref: 92150A

BOLT,FLANGED,14X108

€ 10.00
