FRONT FORK

KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

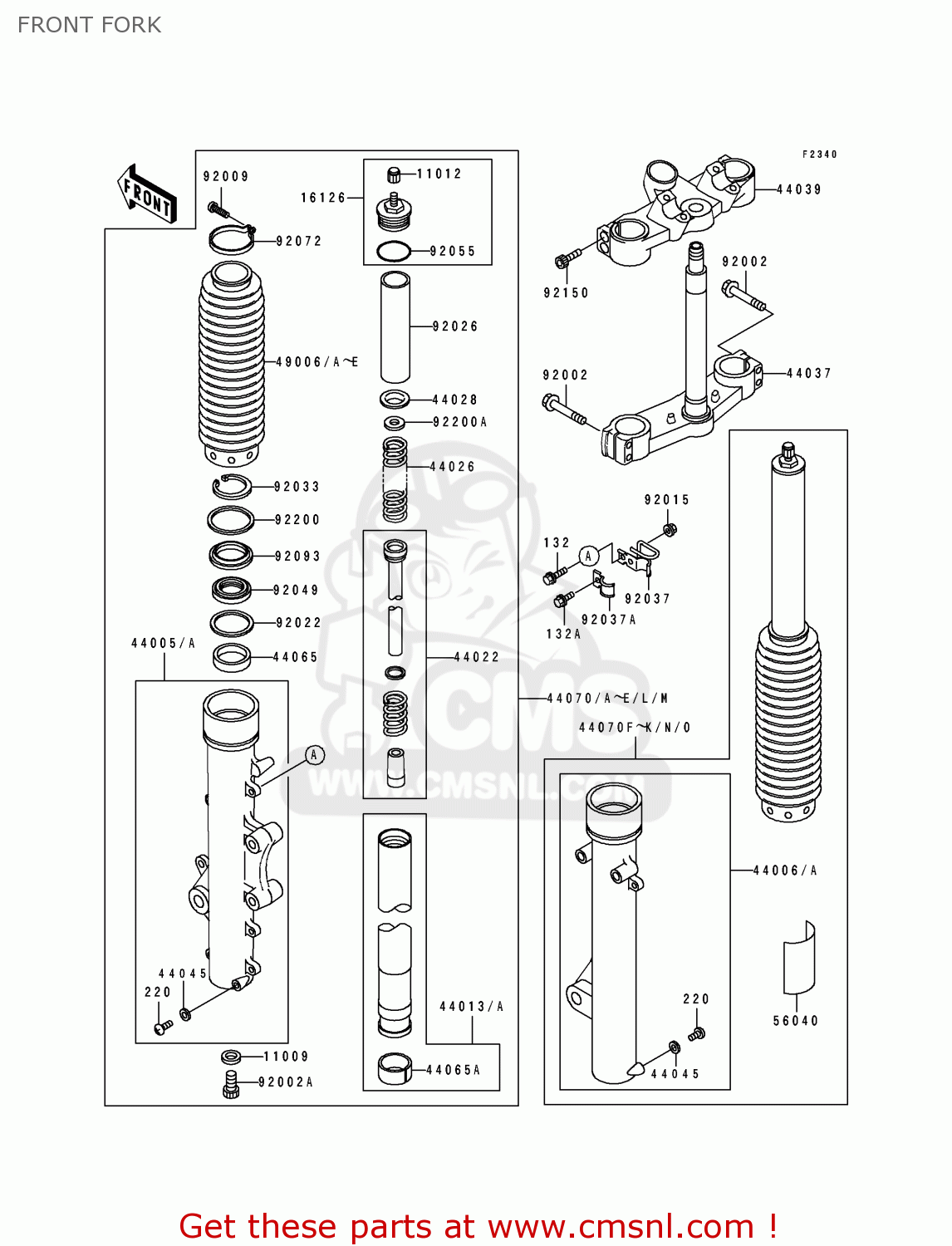

Front fork diagram KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

FRONT FORK KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
FRONT FORK KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
FRONT FORK KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
110091553
€ 3.00
11012
110121391
ref: 11012
CAP,VALVE AIR
110121391
€ 3.50
16126
161261147
ref: 16126
VALVE
161261147
€ 51.00
44005
440051311
ref: 44005
PIPE-LEFT FORK OUTER
440051311
€ 153.00
44006
440061308
ref: 44006
PIPE-RIGHT FORK OUTER
€ 305.50
44013
440131344
ref: 44013
PIPE-FORK INNER
440131344
€ 229.50
44022
440221265
ref: 44022
CYLINDER-FORK
440221265
€ 157.00
44026
440261494
ref: 44026
SPRING-FRONT FORK
440261494
€ 57.50
44028
440281009
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44037
440371286
ref: 44037
HOLDER-FORK UNDER
440371286
€ 355.50
44039
440391215
ref: 44039
HOLDER-FORK UPPER
440391215
€ 219.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
44065
440651085
ref: 44065
BUSHING-FRONT FORK
440651085
€ 21.00
44065A
440651086
ref: 44065A
BUSHING-FRONT FORK,IN
440651086
€ 21.00
44070B
440701101SP
ref: 44070B
AREUNLNRSP
DAMPER-ASSY,FORK,LH,R
€ 715.50
44070C
440701101SR
ref: 44070C
AREUFGFRGRITNLNRSTUK
DAMPER-ASSY,FORK,LH,G
€ 764.50
44070D
440701101VF
ref: 44070D
ARFG
DAMPER-ASSY,FORK,LH,O
€ 729.00
44070E
440701101VW
ref: 44070E
EUFRGRITNLSPSTUK
DAMPER-ASSY,FORK,LH,J
€ 715.50
44070H
440701102SP
ref: 44070H
AREUNLNRSP
DAMPER-ASSY,FORK,RH,R
€ 715.50
44070I
440701102SR
ref: 44070I
AREUFGFRGRITNLNRSTUK
DAMPER-ASSY,FORK,RH,G
€ 854.50
44070J
440701102VF
ref: 44070J
ARFG
DAMPER-ASSY,FORK,RH,O
€ 729.00
44070K
440701102VW
ref: 44070K
EUFRGRITNLSPSTUK
DAMPER-ASSY,FORK,RH,J
€ 715.50
49006B
490061266SP
ref: 49006B
AREUNLNRSP
BOOT,FORK,R.PINK
490061266SP
€ 44.00
49006C
490061266SR
ref: 49006C
AREUFGFRGRITNLNRSTUK
BOOT,FORK,GRAY
490061266SR
€ 56.00
49006D
490061266VF
ref: 49006D
ARFG
BOOT,FORK,ORANGE
€ 46.50
49006E
490061266VW
ref: 49006E
EUFRGRITNLSPSTUK
BOOT,J.S.VIOLET
490061266VW
€ 53.50
56040
560401120
ref: 56040
LABEL,FRONT FORK
560401120
€ 3.50
92002
920021476
ref: 92002
BOLT,FLANGED,8X40
920021476
€ 6.50
92002A
920021650
ref: 92002A
BOLT,FORK DRAIN
920021650
€ 10.00
92009
920091348
ref: 92009
SCREW
920091348
€ 3.50
92015
920151603
ref: 92015
EUFGFRGRITNLNRSPSTUK
NUT
920151603
€ 3.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
920221298
€ 5.50
92026
920261404
ref: 92026
SPACER
€ 5.50
92033
920331036
ref: 92033
CIRCLIP
920331036
€ 4.00
92037
920371897
ref: 92037
CLAMP,HOSE
920371897
€ 8.50
92037A
920371898
ref: 92037A
CLAMP,HOSE
920371898
€ 5.50
92049
920491389
ref: 92049
SEAL-OIL,FORK OUTER T
920491389
€ 16.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92072
920721077
ref: 92072
BAND,BOOT
920721077
€ 7.00
92093
920931206
ref: 92093
SEAL,FORK
920931206
€ 14.00
92150
921501307
ref: 92150
BOLT
921501307
€ 3.00
92200
922001091
ref: 92200
WASHER,FORK OUTER TUB
922001091
€ 5.50
132
132E0620
ref: 132
EUFGFRGRITNLNRSPSTUK
BOLT-FLANGED-SMALL
132E0620
€ 2.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
220B0406
€ 2.50
