CRANKCASE BOLT PATTERN

KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

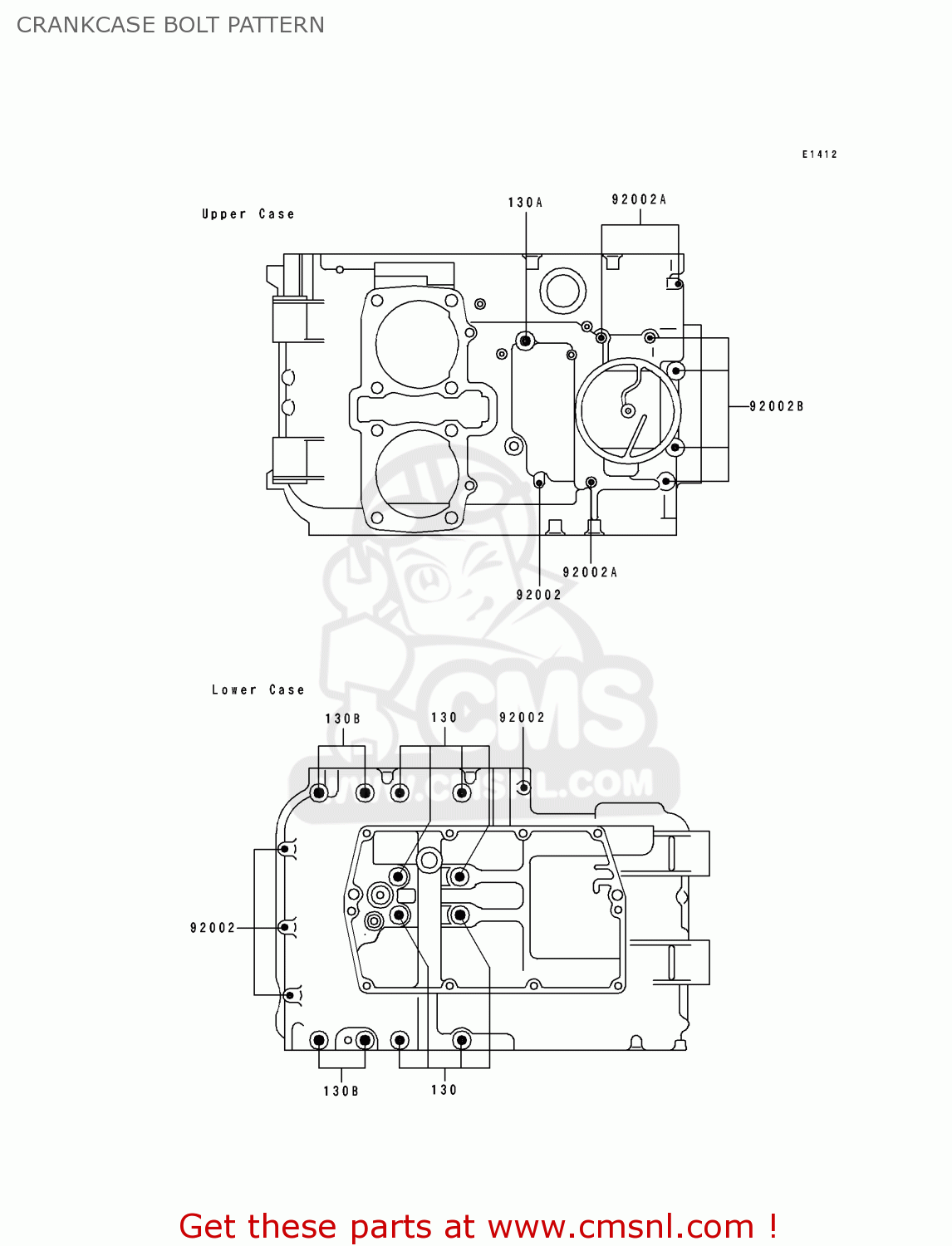

Crankcase bolt pattern diagram KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CRANKCASE BOLT PATTERN KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CRANKCASE BOLT PATTERN KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130Z08100
ref: 130

BOLT-FLANGED

€ 7.50

130A

130Z0855
ref: 130A

BOLT-FLANGED

€ 3.50

130B

130Z0875
ref: 130B

BOLT-FLANGED

€ 6.00

92002

920021566
ref: 92002

BOLT,6X40

€ 3.00

92002A

920021567
ref: 92002A

BOLT,6X60

€ 3.50

92002B

920021568
ref: 92002B

BOLT,6X80

€ 4.00
