SEAT

KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

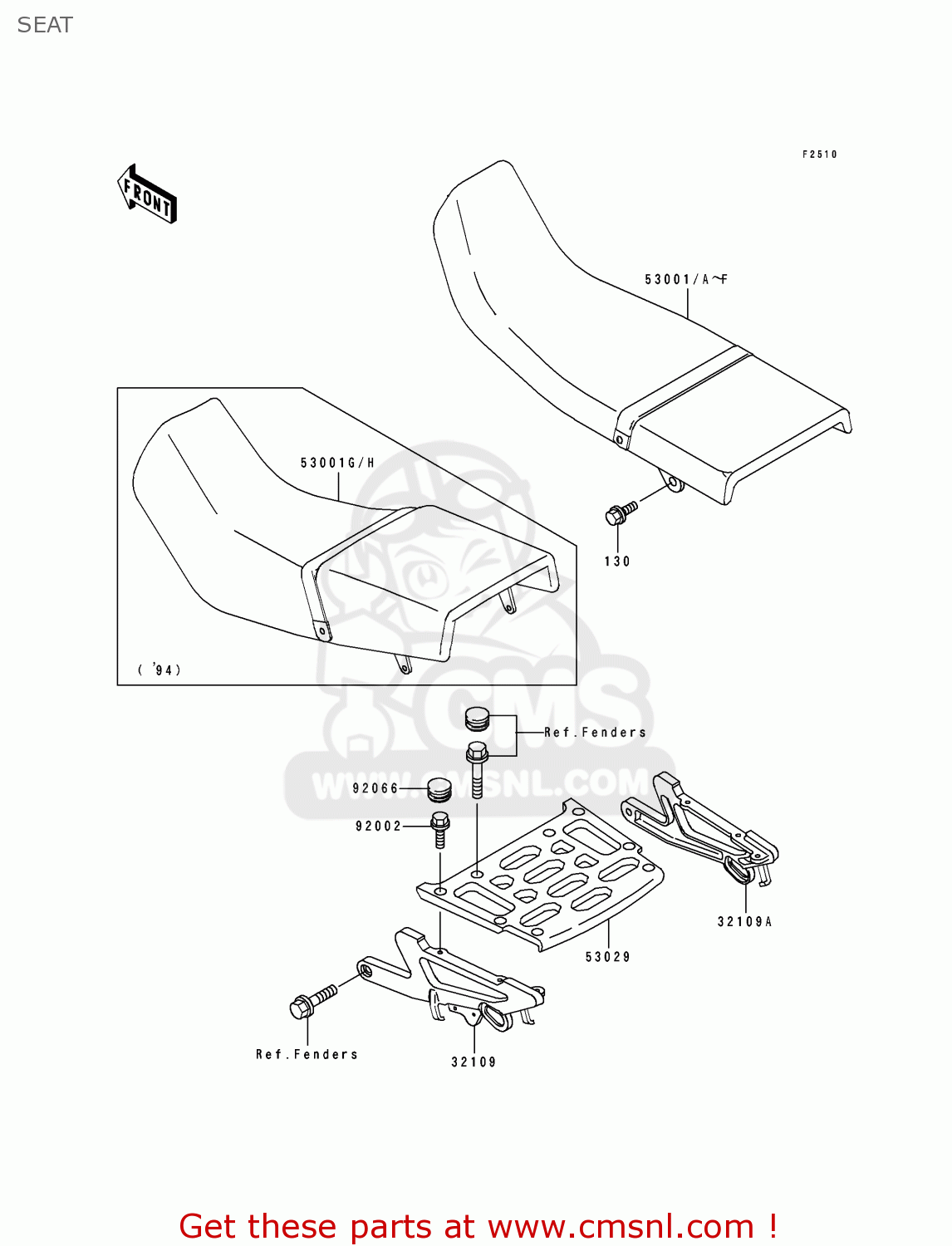

Seat diagram KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130H0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

32109

321091225
ref: 32109

GRIP-FRAME,LH

€ 205.50

32109A

321091226
ref: 32109A

GRIP-FRAME,RH

€ 81.00

53001C

530011712LB
ref: 53001C
AREUNLNRSP

SEAT-ASSY,DUAL,W/BAND

€ 358.50

53001D

530011712LJ
ref: 53001D
AREUFGFRGRITNLNRSTUK

SEAT-ASSY,DUAL,W/BAND

€ 313.00

53001E

530011712LS
ref: 53001E
ARFG

SEAT-ASSY,DUAL,W/BAND

€ 319.00

53001F

530011712LW
ref: 53001F
EUFRGRITNLSPSTUK

SEAT ASSY DUAL W/BAND

€ 313.00

53029

530291130
ref: 53029

CARRIER

€ 124.00

92002

920021933
ref: 92002

BOLT

€ 3.00

92066

920661115
ref: 92066

PLUG

€ 3.50

SEAT

all assemblies
