CHASSIS ELECTRICAL EQUIPMENT

KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

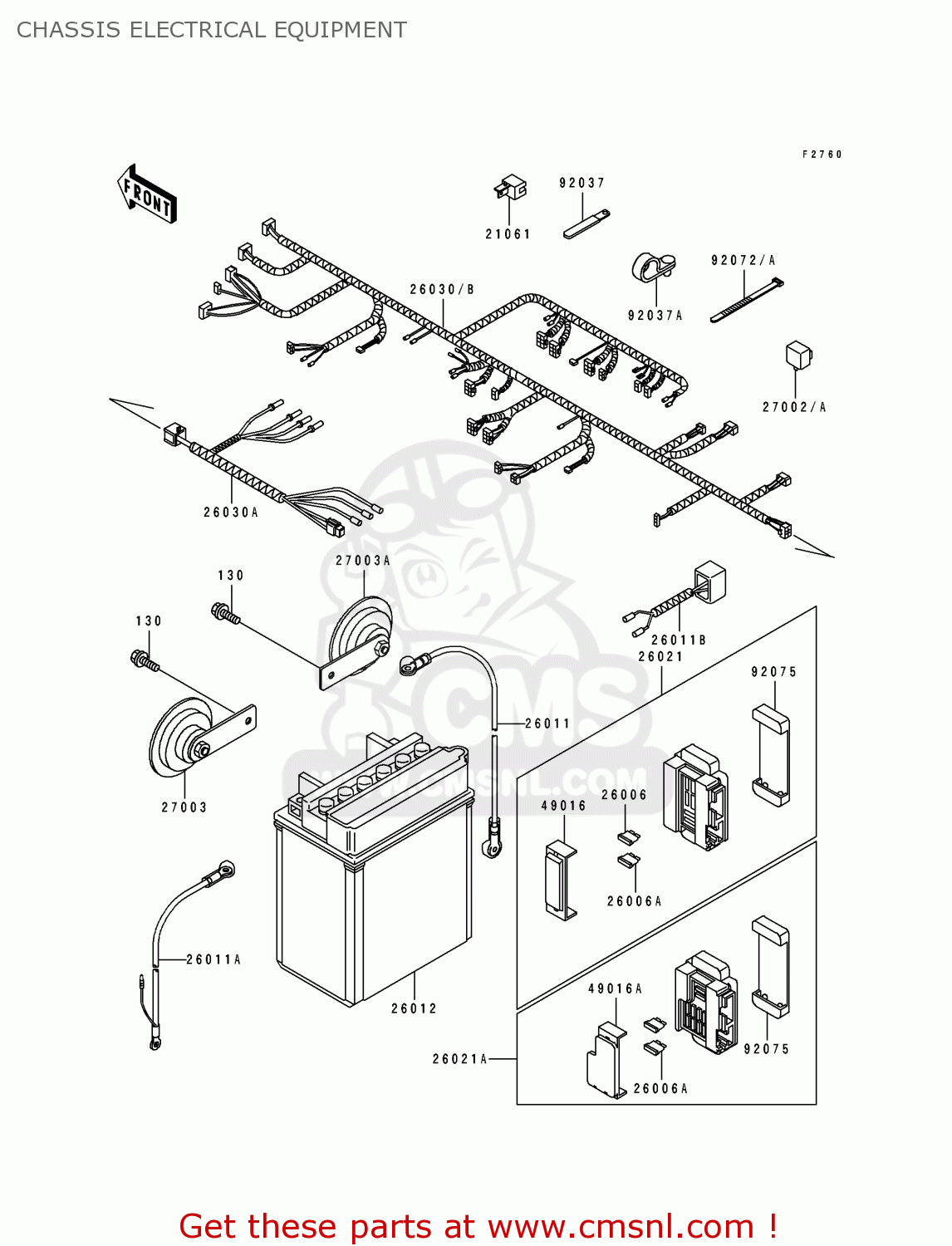

Chassis electrical equipment diagram KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CHASSIS ELECTRICAL EQUIPMENT KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CHASSIS ELECTRICAL EQUIPMENT KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CHASSIS ELECTRICAL EQUIPMENT KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
IT
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130
130J0612
ref: 130
AREUFGFRGRNLNRSPSTUK
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111388
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 26.50
26011A
260111496
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 20.50
26011B
260111503
ref: 26011B
IT
WIRE-LEAD,HORN
€ 20.50
26012
260121281
ref: 26012
BATTERY,YTX12-BS,12V
€ 120.50
26021
260211081
ref: 26021
JUNCTION, BOX
€ 106.50
26030
260301097
ref: 26030
HARNESS,MAIN
260301097
€ 225.50
26030A
260301100
ref: 26030A
HARNESS,RR
260301100
€ 58.00
27002
270021053
ref: 27002
AREUFRGRITNLNRSPSTUK
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27002A
270021060
ref: 27002A
FG
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27003
270031288
ref: 27003
HORN
270031288
€ 62.00
27003A
270031347
ref: 27003A
IT
HORN
€ 53.50
49016
490161124
ref: 49016
COVER-SEAL,FUSE
490161124
€ 6.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371903
ref: 92037A
CLAMP
920371903
€ 5.00
92072
920721195
ref: 92072
IT
BAND,L=185
920721195
€ 1.00
92072
920721195
ref: 92072
AREUFGFRGRNLNRSPSTUK
BAND,L=185
920721195
€ 1.00
92072A
920721237
ref: 92072A
BAND,L=250
920721237
€ 2.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
