IGNITION SYSTEM

KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

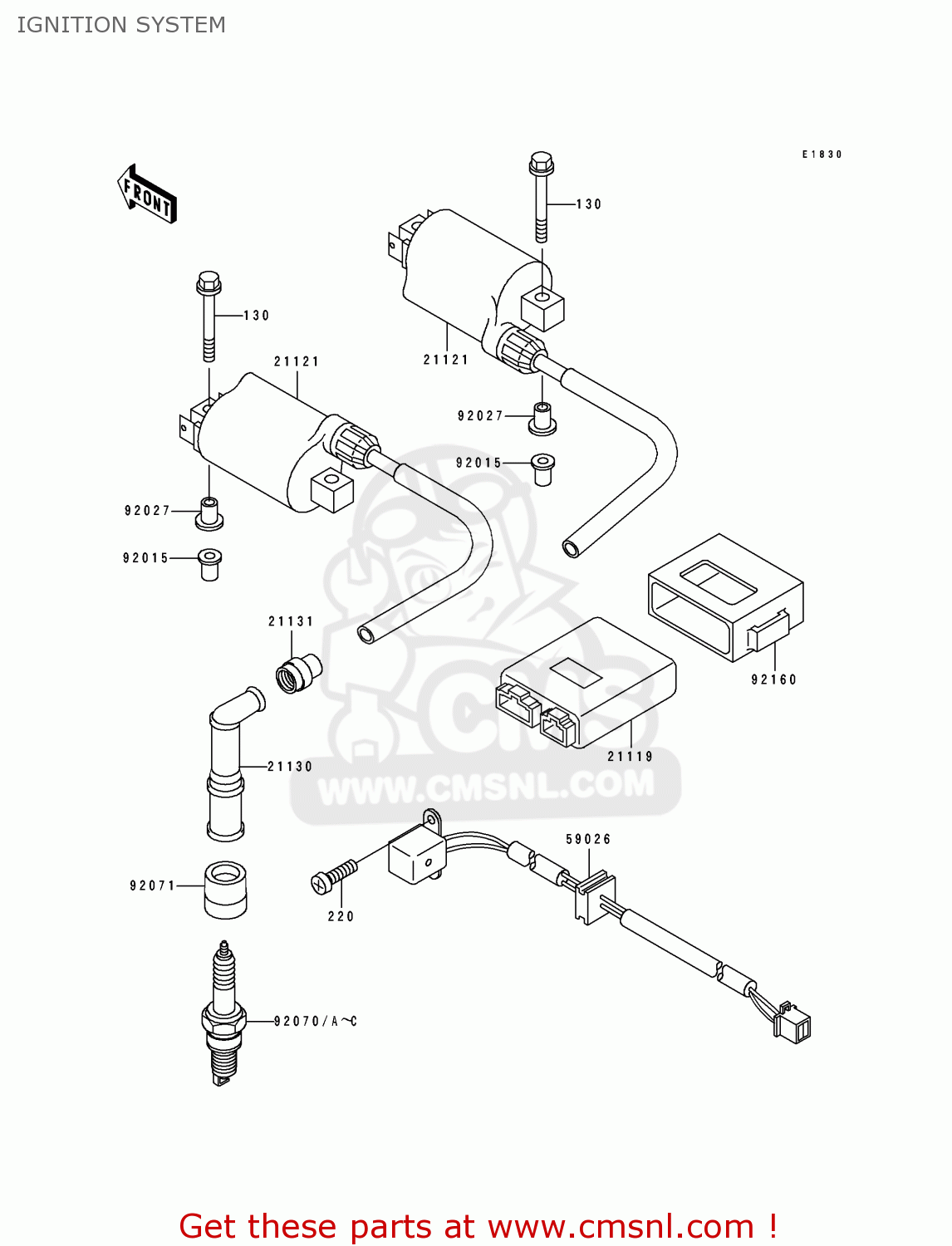

Ignition system diagram KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130G0645
ref: 130

BOLT,FLANGED,6X45

€ 0.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

21119

211191320
ref: 21119

IGNITER

€ 350.00

21121

211211163
ref: 21121

COIL-IGNITION

€ 144.50

21130

211301068
ref: 21130

CAP-SPARK PLUG

€ 28.00

21131

21131005
ref: 21131

GROMMET,TENSION,ITALY

€ 4.00

59026

590261105
ref: 59026

COIL-PULSING

€ 99.50

92015

920151700A
ref: 92015

NUT

€ 5.50

92027

92027195
ref: 92027

COLLAR

€ 4.00

92070

ref: 92070

92070A

ref: 92070A

92070B

920701189
ref: 92070B

DR9EA (NGK SPARKPLUG)

€ 4.00

92070C

920701199
ref: 92070C

DR8EA (NGK SPARKPLUG)

€ 4.00

92071

920711146
ref: 92071

GROMMET,PLUG CAP

€ 6.50

92160

921601181
ref: 92160

DAMPER,IGNITER

€ 25.00

IGNITION SYSTEM

all assemblies
