Genuine KLE Kawasaki Parts delivered quickly!


METER(S)

KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

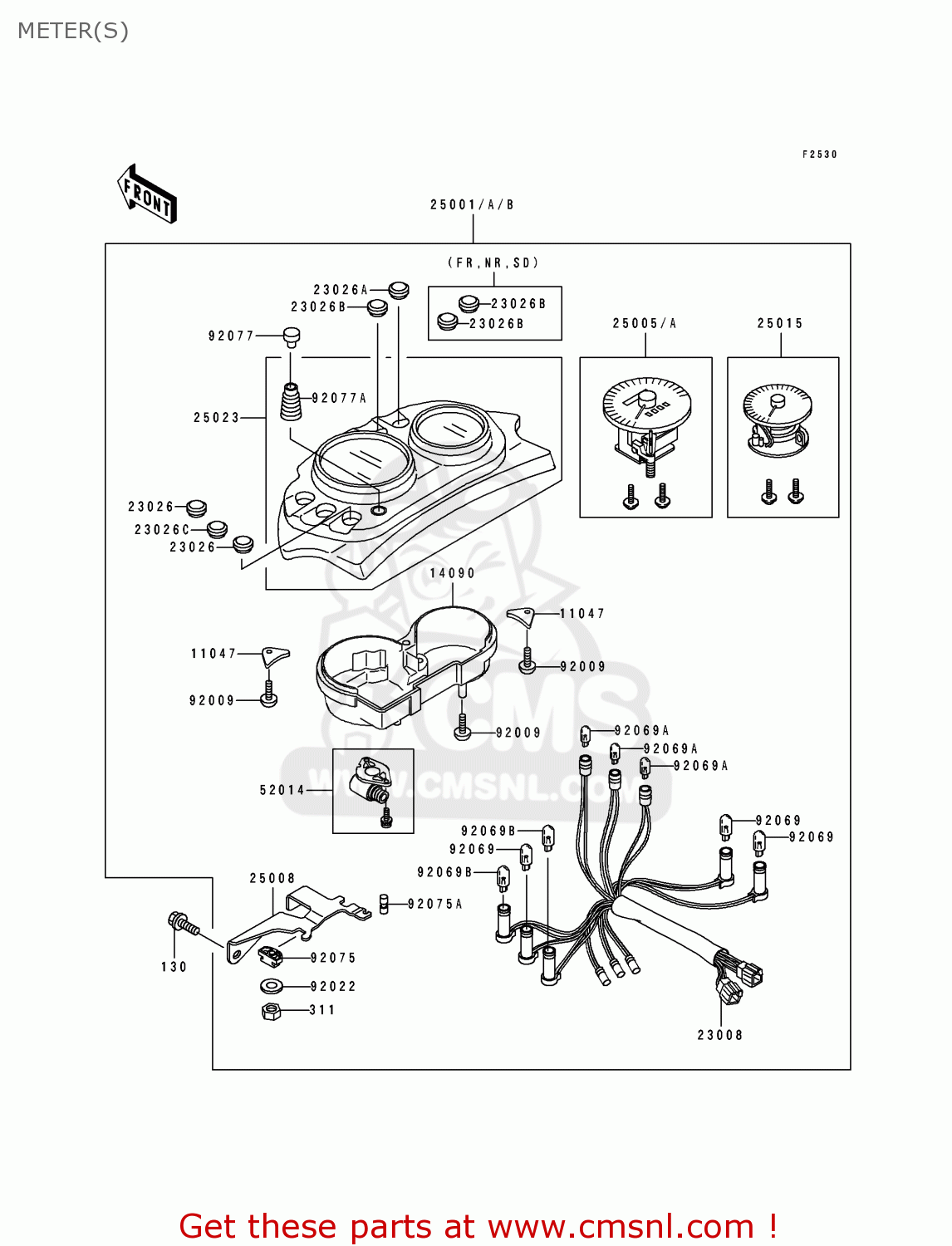

Meter(s) diagram KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

METER(S) KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
METER(S) KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
METER(S) KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11047
110471373
ref: 11047
BRACKET,METER
110471373
€ 5.00
14090
140901102
ref: 14090
COVER,METER HOUSING
€ 60.00
23008
230081473
ref: 23008
SOCKET-ASSY,METER
€ 100.00
23026
230261105
ref: 23026
LENS,OIL
230261105
€ 7.00
23026A
230261106
ref: 23026A
AREUFGGRITNLSPSTUK
LENS,PILOT,ORANGE
230261106
€ 6.50
23026B
230261107
ref: 23026B
AREUFGGRITNLSPSTUK
LENS,NEUTRAL
230261107
€ 7.00
23026B
230261107
ref: 23026B
FRNR
LENS,NEUTRAL
230261107
€ 7.00
23026C
230261108
ref: 23026C
LENS,PILOT,BLUE
230261108
€ 7.50
25001
250011855
ref: 25001
AREUFGGRITNLSPST
METER-ASSY,KPH
€ 1,236.00
25001A
250011859
ref: 25001A
FRNR
METER-ASSY,KPH
€ 1,587.00
25001B
250011860
ref: 25001B
UK
METER-ASSY,MPH
€ 1,236.00
25005
250051484
ref: 25005
AREUFGFRGRITNLNRSPST
SPEEDOMETER,KPH
250051484
€ 342.00
25005A
250051487
ref: 25005A
UK
SPEEDOMETER,MPH
€ 257.50
25008
250081176
ref: 25008
BRACKET-METER
250081176
€ 44.50
25015
250151302
ref: 25015
TACHOMETER,X1000R/MIN
€ 247.50
25023
250231193
ref: 25023
COVER-METER CASE,UPP
250231193
€ 35.50
52014
520141081
ref: 52014
ELBOW,METER
520141081
€ 57.00
92009
920091503
ref: 92009
SCREW,TAPPING,4X14
920091503
€ 2.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
92022263
€ 1.50
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92069A
920691020
ref: 92069A
BULB,12C3W T-7
920691020
€ 3.00
92069B
920691059
ref: 92069B
BULB,12V 1.7W
920691059
€ 2.50
92075
920751495
ref: 92075
DAMPER,METER BRACKET
920751495
€ 8.00
92075A
920751627
ref: 92075A
DAMPER,METER BRACKET
920751627
€ 3.50
92077
920771083
ref: 92077
KNOB,TRIP RESET
920771083
€ 6.00
92077A
920771087
ref: 92077A
KNOB,TRIP RESET
920771087
€ 6.00
130
130J0812
ref: 130
BOLT-FLANGED
130J0812
€ 0.50
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
