CARBURETOR PARTS

KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

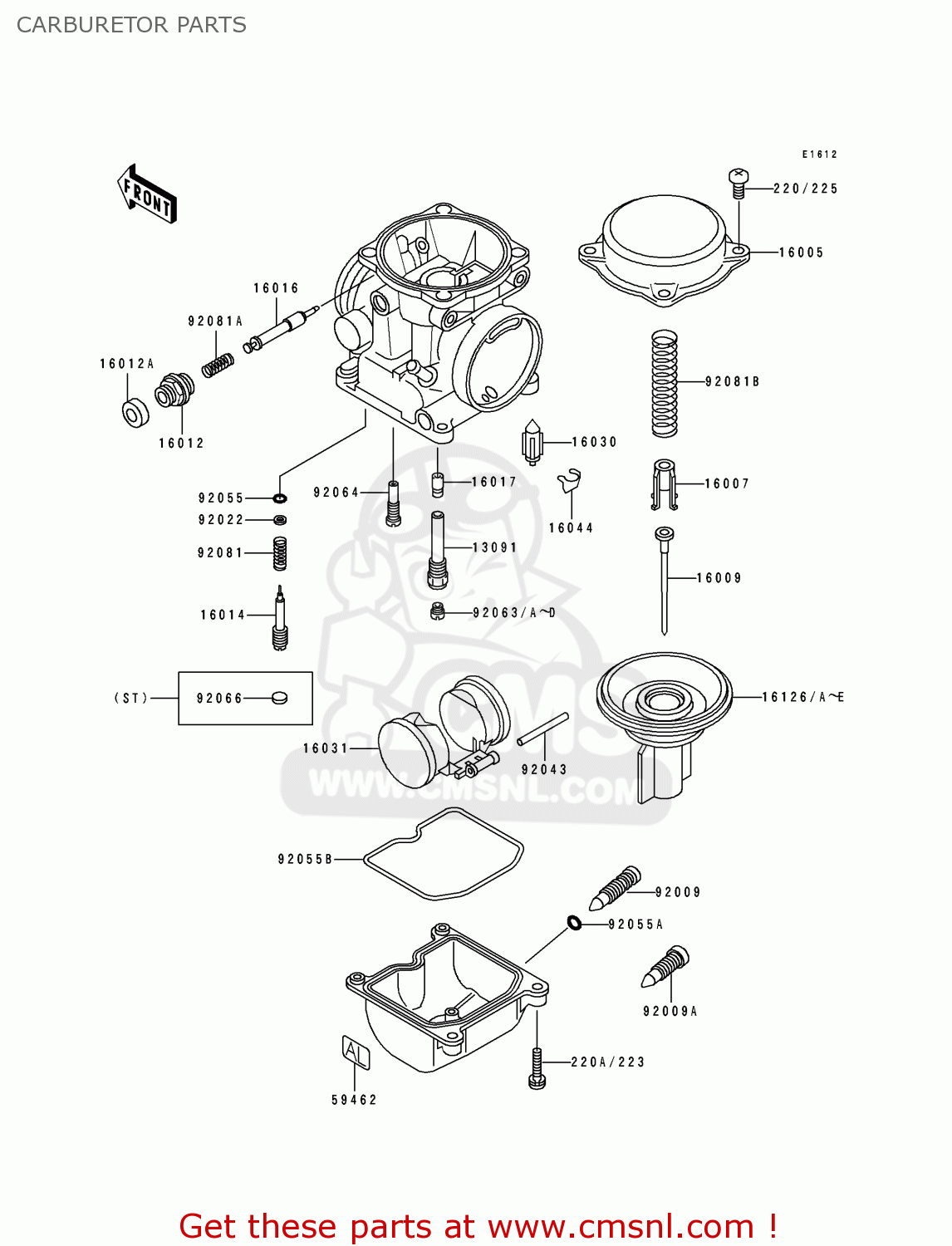

Carburetor parts diagram KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

CARBURETOR PARTS KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR PARTS KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
CARBURETOR PARTS KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
13091
130911425
ref: 13091
HOLDER,NEEDLE JET
130911425
€ 19.50
16005
160051057
ref: 16005
TOP-CHAMBER,MIXING,27
160051057
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091657
ref: 16009
NEEDLE-JET,N96J
160091657
€ 23.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16017
160171208
ref: 16017
JET-NEEDLE,#6
€ 37.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261164
ref: 16126
AR
VALVE,VACUUM
€ 114.50
16126A
161261173
ref: 16126A
EUFRGRITNLNRSPUK
VALVE,VACUUM
161261173
€ 159.50
16126C
161261264
ref: 16126C
FGST
VALVE,VACUUM
161261264
€ 74.00
16126D
161261264
ref: 16126D
AR
VALVE,VACUUM
161261264
€ 74.00
59462
594621323
ref: 59462
AR
LABEL,AL,FOR 20KW
€ 3.00
92009A
920091551
ref: 92009A
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631071
ref: 92063
JET-MAIN,#118
920631071
€ 9.50
220
220B0408
ref: 220
EUGRITNRSPSTUK
SCREW-PAN-CROS
220B0408
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
220D0414
€ 2.00
225
225C0418
ref: 225
ARFGFRNL
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92063A
920631114
ref: 92063A
JET-MAIN,#110
920631114
€ 9.50
92063B
920631116
ref: 92063B
JET-MAIN,#108
920631116
€ 9.50
92063C
920631117
ref: 92063C
JET-MAIN,#112
920631117
€ 9.50
92063D
920631118
ref: 92063D
JET-MAIN,#115
920631118
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
ST
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811874
ref: 92081B
SPRING,VACUUM VALVE
920811874
€ 17.50
