HEADLIGHT(S)

KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

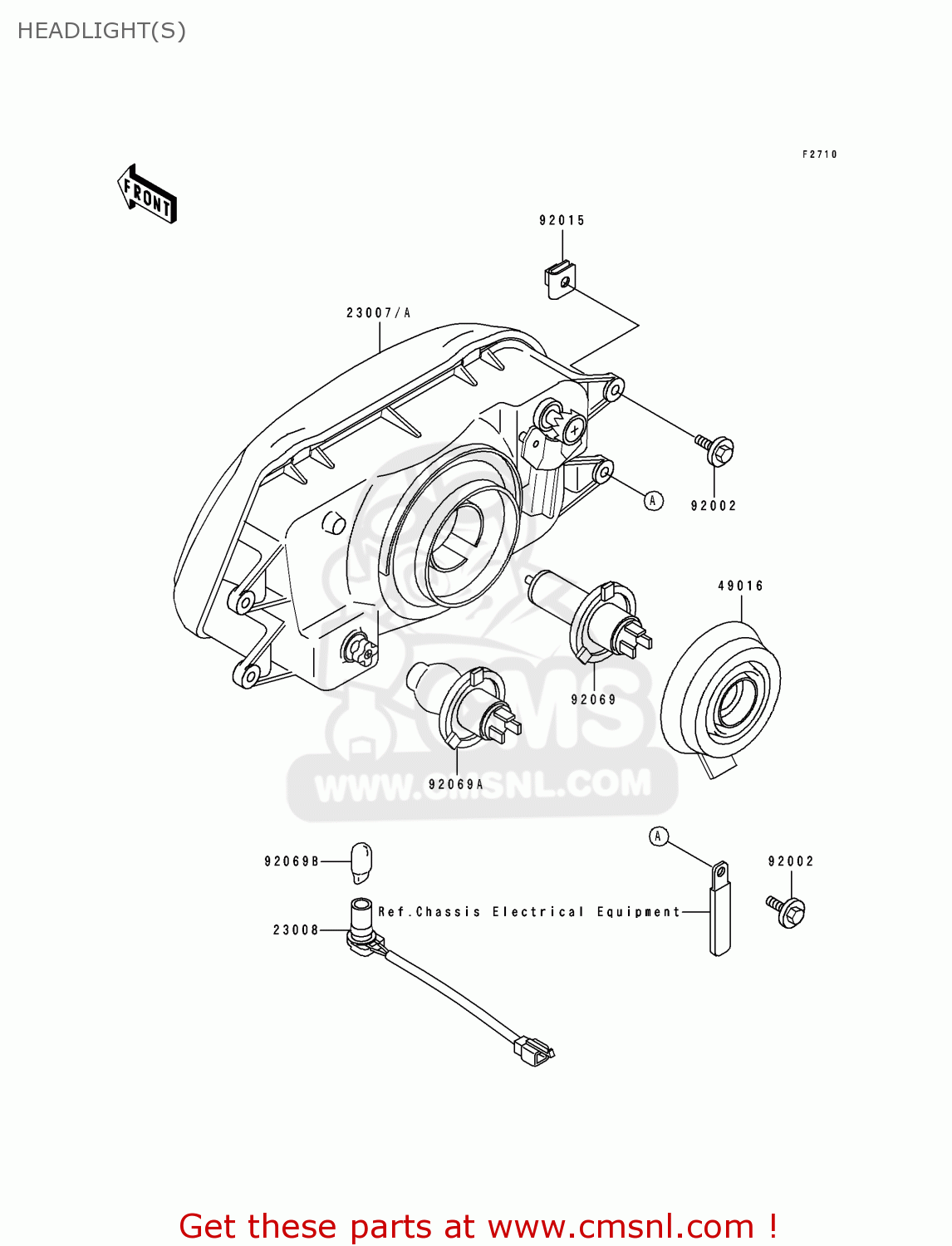

Headlight(s) diagram KLE500A3 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

23007

230071257
ref: 23007
AREUFGFRGRITNLNRSPST

LENS-COMP,HEAD LAMP

€ 104.00

23007A

230071258
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 270.00

23008

230081472
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 17.50

49016

490161137
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92002

920021320
ref: 92002

BOLT,6X25

€ 3.00

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92069B

920691016
ref: 92069B

BULB,12V 5W

€ 4.00
