TAILLIGHT ('81-'82 A2/A3)

KDX175-A2 KDX175 1981 USA CANADA

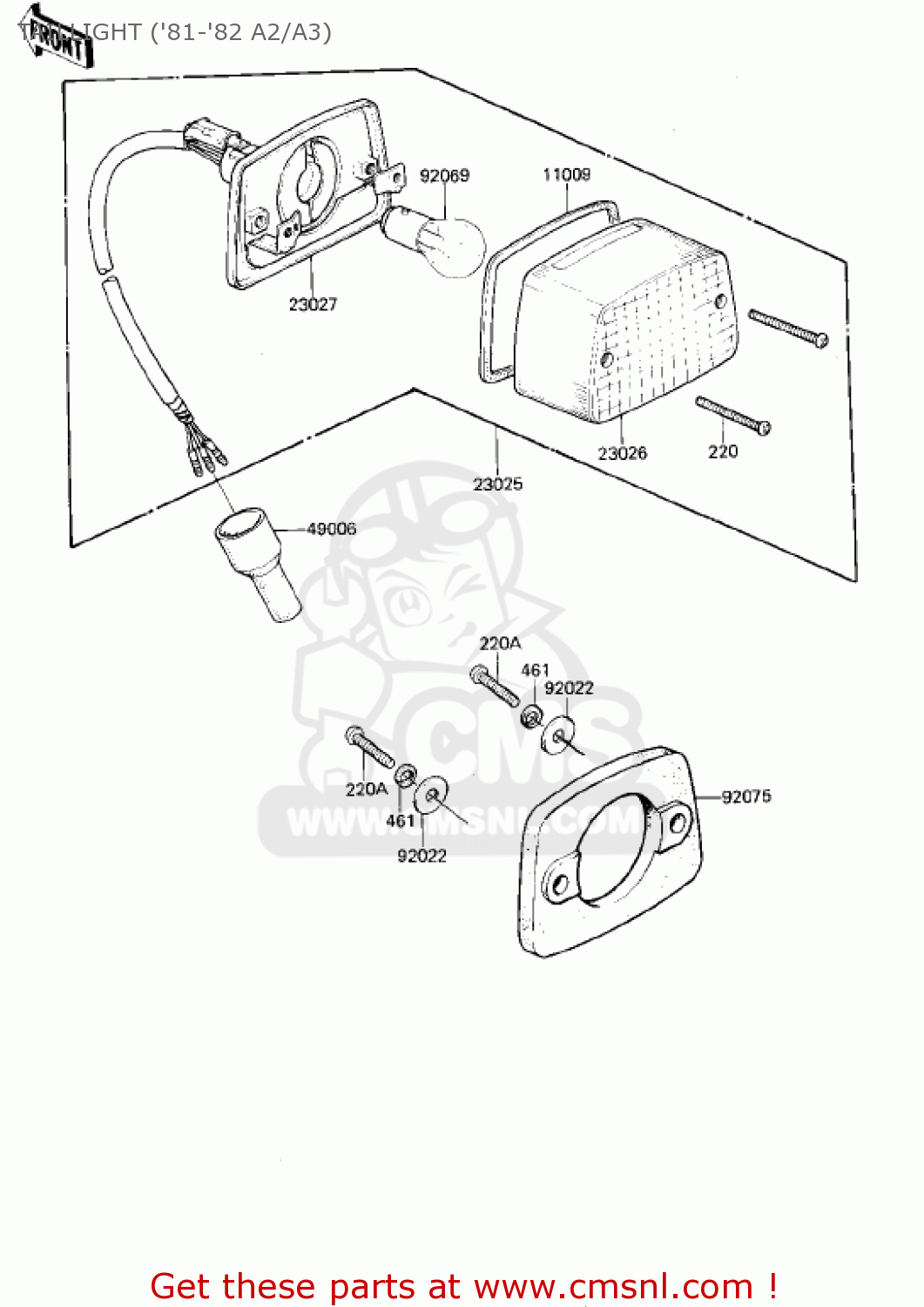

Taillight ('81-'82 a2/a3) diagram KDX175-A2 KDX175 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

23028020
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

23025

23025075
ref: 23025

LAMP-TAIL,040-5459 MA

€ 96.00

23026

23026040
ref: 23026

LENS,TAIL LAMP

€ 28.50

23027

23027044
ref: 23027

BODY-COMP-TAIL LAMP

€ 52.00

49006

490061048
ref: 49006

BOOT,HARNESS COVER

€ 3.00

92022

92022263
ref: 92022

WASHER,PLAIN,6MM

€ 1.50

92069

92069028
ref: 92069

BULB 6V 17/5.3W

€ 4.50

92075

920754014
ref: 92075

DAMPER

€ 6.00

220

220B0330
ref: 220

SCREW-PAN-CROS

€ 1.00

220A

220B0520
ref: 220A

SCREW-PAN-CROS

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50
