MUFFLER (KDX175-A2)
KDX175-A2 KDX175 1981 USA CANADA

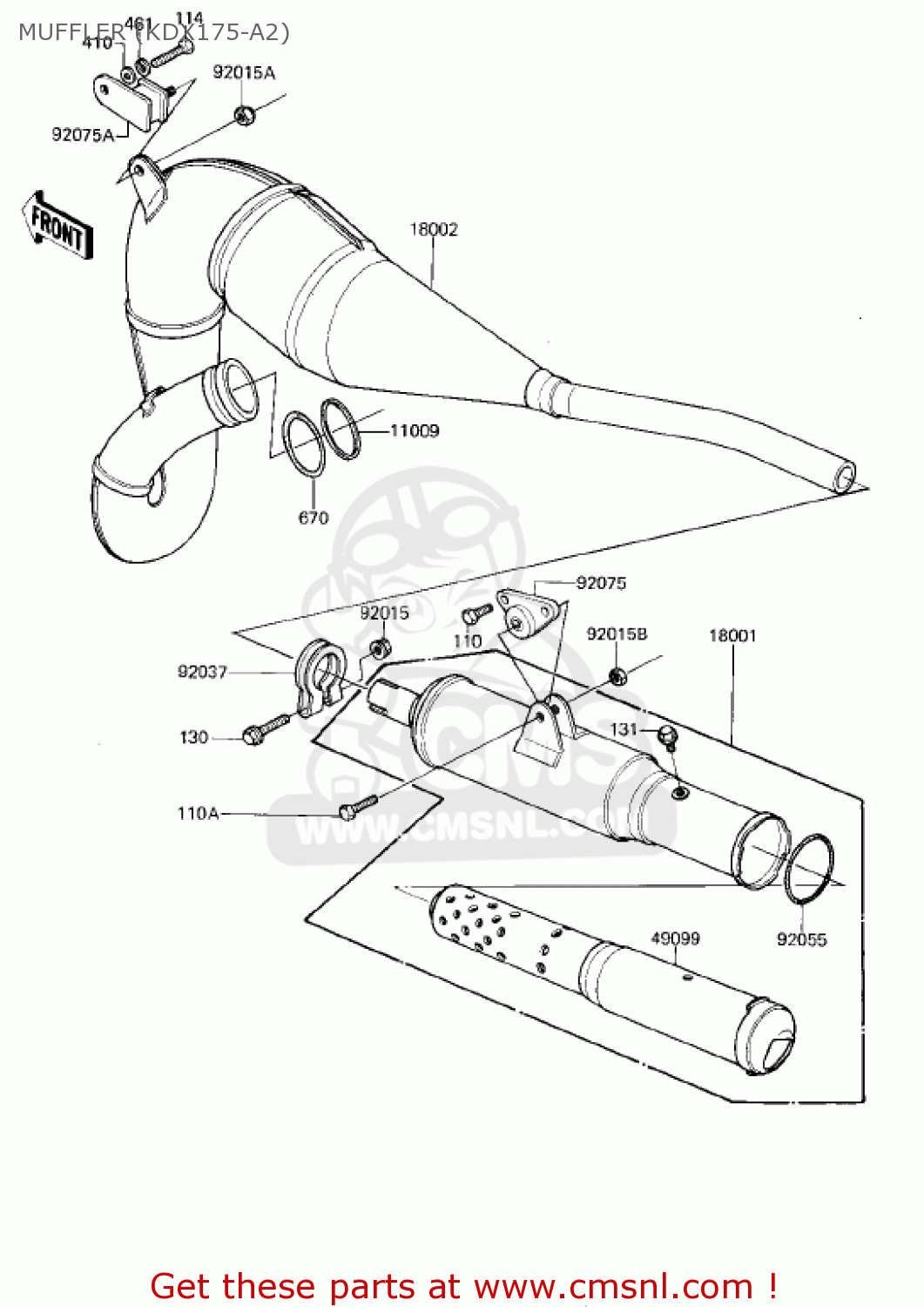

Muffler (kdx175-a2) diagram KDX175-A2 KDX175 1981 USA CANADA
MUFFLER (KDX175-A2) KDX175-A2 KDX175 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091123
ref: 11009
GASKET,EXHAUST HOLDER (NAS)
€ 10.50
18001
180011106
ref: 18001
MUFFLER ASSY
€ 173.00
18002
180021128
ref: 18002
BODY-COMP-MUFFLER,F.B
€ 376.00
49099
490991025
ref: 49099
BUFFLE PIPE,MUFFLER
€ 85.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151124
ref: 92015A
NUT,LOCK,8MM
€ 3.50
92015B
92019008
ref: 92015B
NUT-LOCK,6MM
€ 3.00
92037
920371169
ref: 92037
CLAMP,MUFFLER
€ 5.50
92055
920551077
ref: 92055
RING-0,50.8MM,MUFFLER
€ 14.00
92075
920751046
ref: 92075
DAMPER RUBBER
€ 20.00
92075A
920751060
ref: 92075A
DAMPER,MUFFLER FITTIN
€ 18.50
110
112G0618
ref: 110
BOLT-UPSET
€ 0.50
110A
112G0625
ref: 110A
BOLT-UPSET,6X25
€ 4.00
114
115G0825
ref: 114
BOLT-HEX,HEAD,8X25
€ 3.00
130
130H0635
ref: 130
BOLT-FLANGED,6X35
€ 0.50
131
130B0608
ref: 131
BOLT,FLANGED,6X8
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
670
670E3045
ref: 670
O RING,45MM
€ 11.50
