CLUTCH ('81-'82 A2/A3)
KDX175-A2 KDX175 1981 USA CANADA

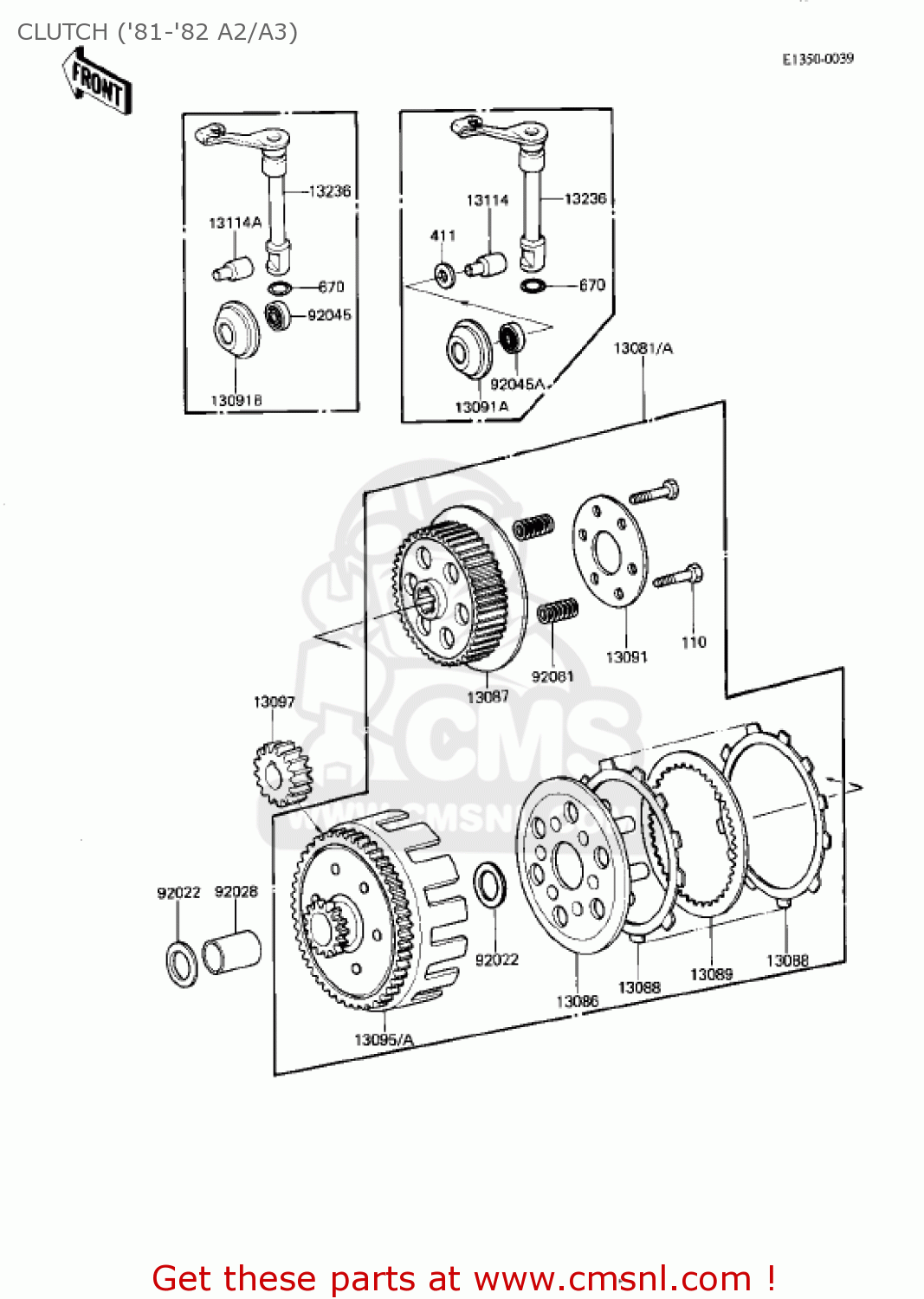

Clutch ('81-'82 a2/a3) diagram KDX175-A2 KDX175 1981 USA CANADA
CLUTCH ('81-'82 A2/A3) KDX175-A2 KDX175 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13081
130811040
ref: 13081
CLUTCH ASSY
€ 272.50
13081A
130811077
ref: 13081A
CLUTCH-ASSY
€ 287.00
13086
130861001
ref: 13086
WHEEL,CLUTCH
€ 25.00
13087
130871014
ref: 13087
HUB,CLUTCH
€ 39.50
13088
130881015
ref: 13088
PLATE-FRICTION (NAS)
€ 11.50
13089
13089003
ref: 13089
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
13091
13091015
ref: 13091
HOLDER,CLUTCH SPRING
€ 12.50
13091A
130911071
ref: 13091A
HOLDER,CLUTCH PUSHER
€ 15.00
13091B
130911134
ref: 13091B
HOLDER,CLUTCH PUSHER
€ 9.50
13095
130951027
ref: 13095
HOUSING-COMP-CLUTCH
€ 421.00
13095A
130951043
ref: 13095A
HOUSING-COMP-CLUTCH
€ 240.00
13097
130971033
ref: 13097
GEAR,PRIMARY,23T
€ 82.00
13114
131141004
ref: 13114
PUSHER-CLUTCH
€ 16.50
13114A
131141008
ref: 13114A
PUSHER-CLUTCH
€ 12.50
13236
132361022
ref: 13236
LEVER ASSY,CLUTCH REL
€ 22.50
92022
92022223
ref: 92022
WASHER,20.5X30X1.4
€ 8.50
92022
92022223
ref: 92022
WASHER,20.5X30X1.4
€ 8.50
92028
920281081
ref: 92028
BUSHING,20X25X31.2
€ 28.00
92045
92045026
ref: 92045
BEARING,BALL,#627
€ 19.50
92045A
920451211
ref: 92045A
BEARING-BALL
€ 11.00
92081
92081123
ref: 92081
SPRING,CLUTCH
€ 4.50
110
110G0520
ref: 110
BOLT
€ 2.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
670
670B2010
ref: 670
O RING,10MM
€ 1.00
