REAR SUSPENSION/SHOCK ABSORBER (

KDX175-A2 KDX175 1981 USA CANADA

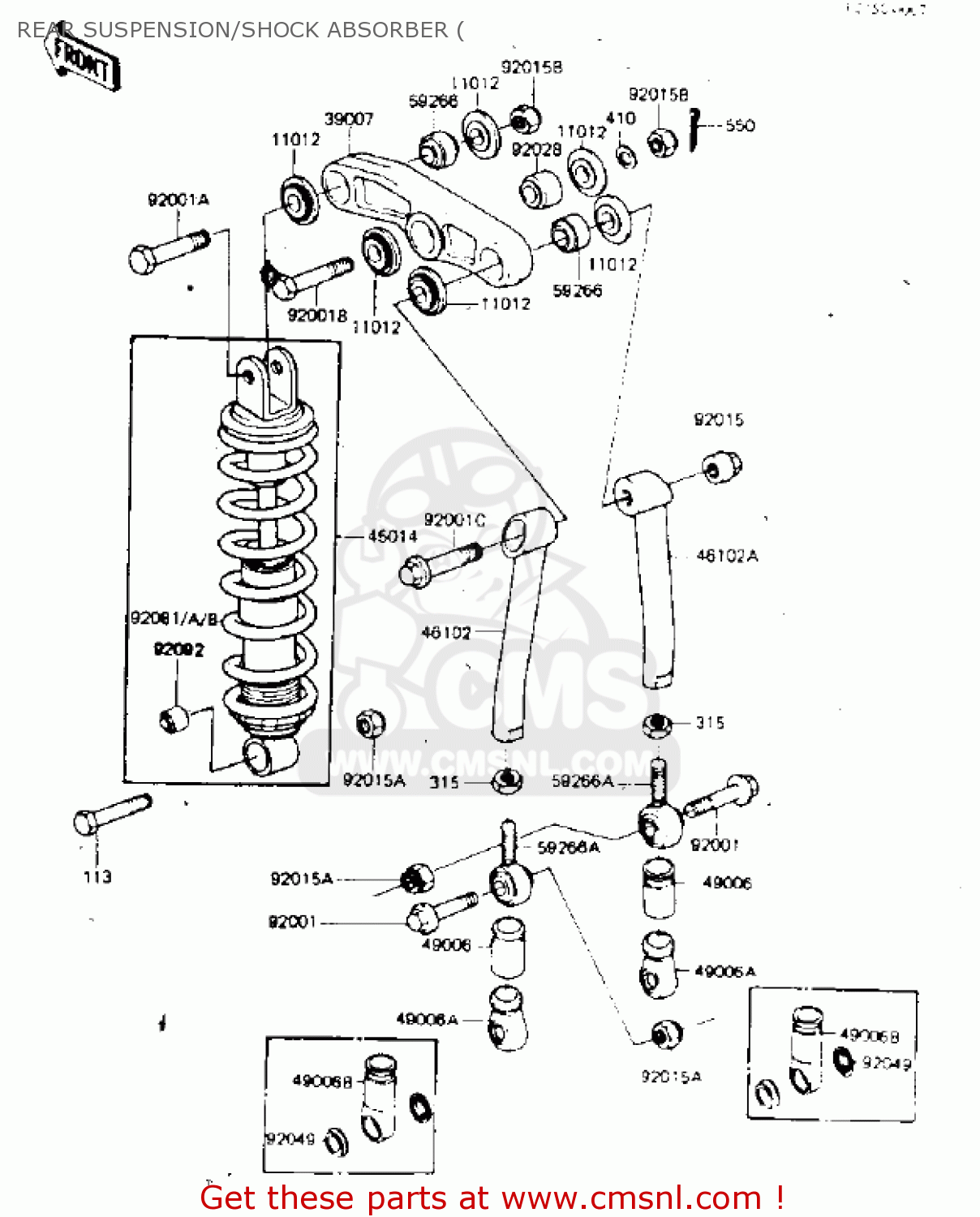

Rear suspension/shock absorber ( diagram KDX175-A2 KDX175 1981 USA CANADA

REAR SUSPENSION/SHOCK ABSORBER ( KDX175-A2 KDX175 1981 USA CANADA

REAR SUSPENSION/SHOCK ABSORBER ( KDX175-A2 KDX175 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121117
ref: 11012

CAP,SUSPENSION ARM

€ 10.00

39007

390071003
ref: 39007

ARM,SUSPENSION

€ 93.00

45014

450141108
ref: 45014

SHOCKABSORBER,RR

€ 376.50

46102

461021020
ref: 46102

ROD,UNITRAK,LH

€ 43.00

46102A

461021021
ref: 46102A

ROD,UNITRAK,RH

€ 46.50

49006

490061045
ref: 49006

BOOT,BALL JOINT

€ 9.00

49006A

490061046
ref: 49006A

BOOT,BALL JOINT

€ 9.00

49006B

490061062
ref: 49006B

BOOT

€ 6.00

59266

592661001
ref: 59266

JOINT-BALL,MBWTD14-20

€ 113.50

59266A

592661002
ref: 59266A

JOINT-BALL,HR12E-202

€ 91.50

92001

920011306
ref: 92001

BOLT,HEX HEAD,12X40

€ 7.50

92001A

920011317
ref: 92001A

BOLT,HEX HEAD,14X50

€ 8.00

92001B

920011335
ref: 92001B

BOLT,HEX HEAD,14X59

€ 14.00

92001C

920011344
ref: 92001C

BOLT,14X60

€ 8.50

92015

920151123
ref: 92015

NUT,UNITRAK LINK

€ 17.50

92015A

92019009
ref: 92015A

NUT,LOCK,12MM

€ 5.00

92015B

92019011
ref: 92015B

NUT,LOCK,14MM

€ 6.00

92028

920281087
ref: 92028

BUSHING,14X27.5X17

€ 108.00

92049

920491078
ref: 92049

SEAL-OIL

€ 9.00

92081

920811315
ref: 92081
(OPTION)

SPRING,REAR SHOCK

€ 237.50

92081A

920811316
ref: 92081A
(OPTION)

SPRING,REAR SHOCK

€ 246.50

92081B

920811338
ref: 92081B

SPRING,REARSHOCK,STD

€ 235.00

92092

920921008
ref: 92092

BUSHING-RUBBER,SHOCKA

€ 22.00

113

113P1255A
ref: 113

BOLT,HEX HEAD 12X55

€ 6.00

315

315B1200
ref: 315

NUT,12MM

€ 0.50

410

410B1400
ref: 410

410B1400

550

550D2525
ref: 550

PIN-COTTER,2.5X25

€ 1.00
