SWING ARM ('81-'82 A2/A3)
KDX175-A2 KDX175 1981 USA CANADA

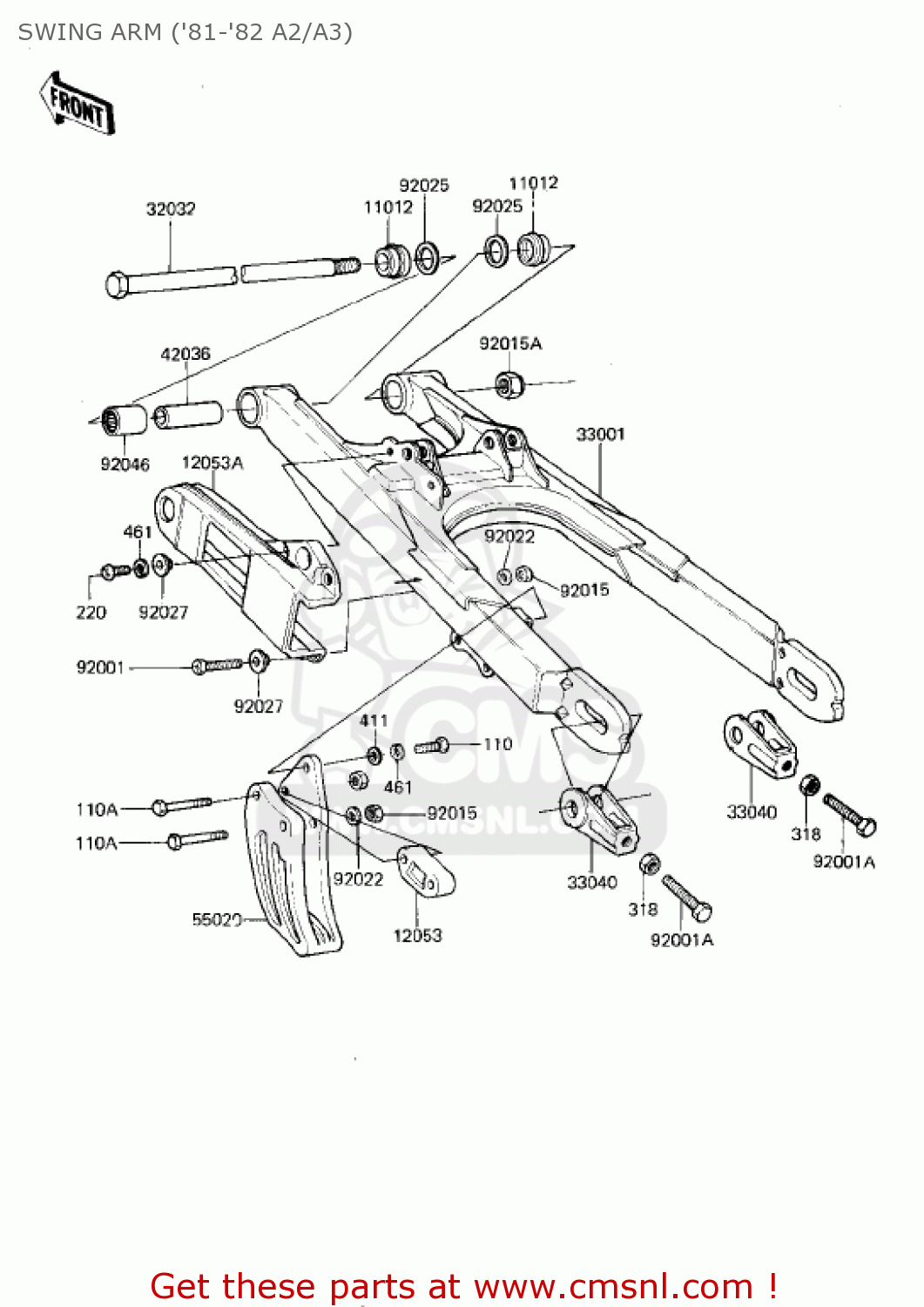

Swing arm ('81-'82 a2/a3) diagram KDX175-A2 KDX175 1981 USA CANADA
SWING ARM ('81-'82 A2/A3) KDX175-A2 KDX175 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121099
ref: 11012
CAP,SWING ARM
€ 14.50
12053
120531039
ref: 12053
GUIDE-CHAIN,RR,UPP
€ 10.50
12053A
120531043
ref: 12053A
GUIDE,CHAIN,FRONT
€ 42.00
33001
330011069
ref: 33001
ARM,SWING
€ 243.50
33032
330321020
ref: 33032
SHAFT-SWING ARM
€ 64.50
33040
33040043
ref: 33040
ADJUSTER-CHAIN
€ 20.50
42036
420361031
ref: 42036
SLEEVE,SWING ARM
€ 33.50
55020
550201038
ref: 55020
GUARD,CHAIN
€ 24.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92001A
920011399
ref: 92001A
BOLT,8X50
€ 6.00
92015
92019008
ref: 92015
NUT-LOCK,6MM
€ 3.00
92015A
92019011
ref: 92015A
NUT,LOCK,14MM
€ 6.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92025
920251116
ref: 92025
SHIM,20X26.6X0.5
€ 2.50
92027
920271260
ref: 92027
COLLAR
€ 4.00
92046
920461031
ref: 92046
BEARING-NEEDLE,HMK203
€ 20.50
110
112G0625
ref: 110
BOLT-UPSET,6X25
€ 4.00
110A
112G0660
ref: 110A
BOLT-UPSET
€ 3.00
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
318
318B0800
ref: 318
NUT,8MM
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
