GEAR CHANGE MECHANISM ('80 A1)

KDX175-A2 KDX175 1981 USA CANADA

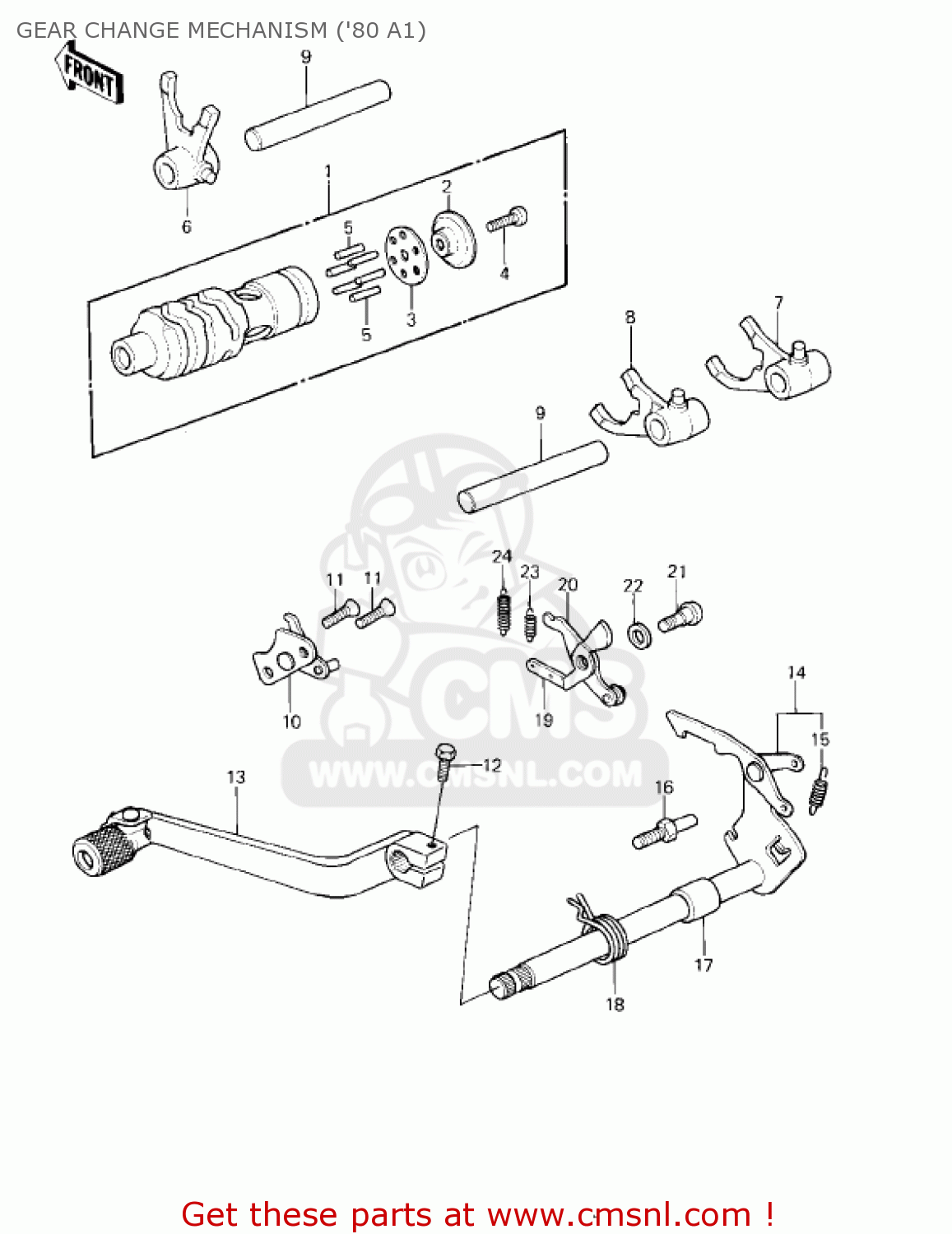

Gear change mechanism ('80 a1) diagram KDX175-A2 KDX175 1981 USA CANADA

GEAR CHANGE MECHANISM ('80 A1) KDX175-A2 KDX175 1981 USA CANADA

GEAR CHANGE MECHANISM ('80 A1) KDX175-A2 KDX175 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

132391031
ref: 1

DRUM ASSY,GEAR CHANGE

€ 82.50

2

13142017
ref: 2

HOLDER,CHANGE DRUM PI

€ 8.00

3

131691225
ref: 3

PLATE,GEAR CHANGE DRM

€ 3.00

4

220B0614
ref: 4

SCREW-PAN HEAD,6X14

€ 2.00

5

920431060
ref: 5

PIN,GEAR CHANGE DRUM

€ 2.00

6

131401034
ref: 6

FORK-SHIFT,3RD&4TH

€ 76.50

7

131401035
ref: 7

FORK-SHIFT,5TH

€ 76.50

8

131401037
ref: 8

FORK-SHIFT,TOP

€ 72.50

9

490471009
ref: 9

ROD,SHIFT,10X90

€ 11.00

10

132441003
ref: 10

STOPPER ASSY,CHANGE

€ 15.00

11

221B0614
ref: 11

SCREW-CNTSNK HD,6X14

€ 2.50

12

112G0622
ref: 12

BOLT-UPSET

€ 2.50

13

131561088
ref: 13

LEVER-CHANGE,PEDAL

€ 101.00

14

131611031
ref: 14

LEVER-COMP-CHANGE SHA

€ 69.00

15

92081076
ref: 15

SPRING-CHANG LEVER

€ 3.50

16

920011401
ref: 16

BOLT,RETURN SPRING

€ 3.00

17

920271440
ref: 17

COLLAR,13X18.3X21.5

€ 3.50

18

920811129
ref: 18

SPRING,TENTION

€ 6.50

19

131681059
ref: 19

LEVER A,GEAR CHANGE

€ 2.50

20

132361023
ref: 20

LEVER B,GEAR CHANGE

€ 4.50

21

92011023
ref: 21

SCREW-PAN HEAD

€ 2.50

22

920221053
ref: 22

WASHER,PLAIN

€ 1.50

23

920811061
ref: 23

SPRING GEAR CHANGE

€ 2.50

24

92081119
ref: 24

SPRING,CHANGE LEVER

€ 3.00
