FRAME FITTINGS ('81-'82 A2/A3)

KDX175-A2 KDX175 1981 USA CANADA

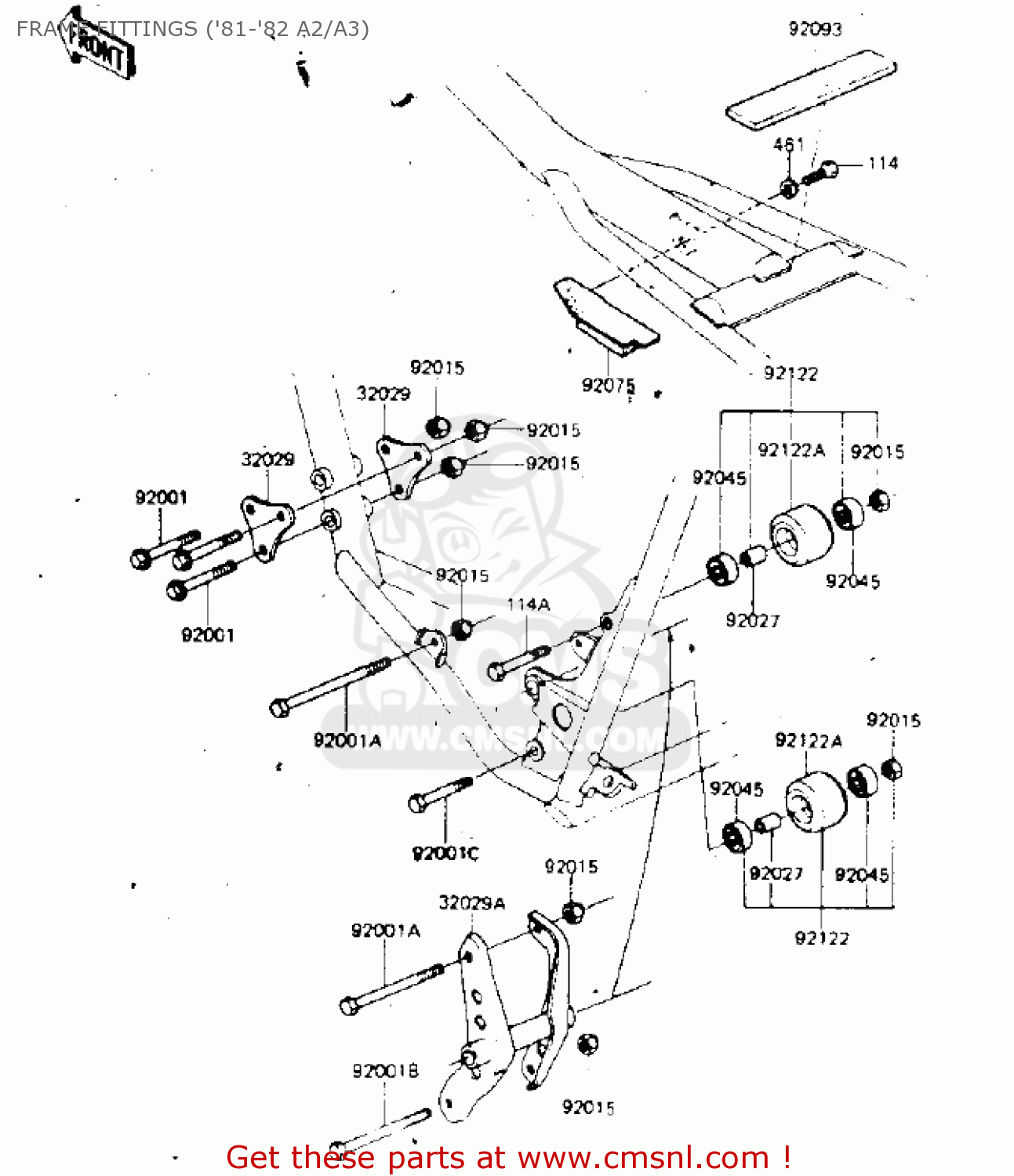

Frame fittings ('81-'82 a2/a3) diagram KDX175-A2 KDX175 1981 USA CANADA

FRAME FITTINGS ('81-'82 A2/A3) KDX175-A2 KDX175 1981 USA CANADA
FRAME FITTINGS ('81-'82 A2/A3) KDX175-A2 KDX175 1981 USA CANADA
FRAME FITTINGS ('81-'82 A2/A3) KDX175-A2 KDX175 1981 USA CANADA
prices are in EUR
ref
part #
description
quantity
32029
320291140
ref: 32029
BRACKET-ENGINE
320291140
€ 16.50
32029A
320291123
ref: 32029A
BRACKET,ENGINE,REAR
€ 29.50
92001
920011410
ref: 92001
BOLT,8X69
920011410
€ 7.00
92001A
920021416
ref: 92001A
BOLT,FLANGED,8X90
€ 2.50
92001B
920011394
ref: 92001B
BOLT,HEX HEAD,8X105
920011394
€ 3.50
92001C
920011440
ref: 92001C
BOLT,8X70
920011440
€ 3.50
92015
920151134
ref: 92015
NUT,8MM
€ 3.50
92027
920271081
ref: 92027
COLLAR
920271081
€ 6.50
92045
920451009
ref: 92045
BEARING-BALL,608LLU/2
920451009
€ 34.50
92075
920751249
ref: 92075
DAMPER,RR SHCK ABSRBR
920751249
€ 10.50
92093
920931039
ref: 92093
SEAL
€ 3.00
92122
921221013
ref: 92122
ROLLER,ASSY
921221013
€ 58.50
92122A
921221014
ref: 92122A
ROLLER
921221014
€ 9.50
114
114G0812
ref: 114
BOLT-SMALL,8X12
€ 2.00
114A
115G0855
ref: 114A
BOLT-SMALL-UPSET,8X55
€ 4.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
461F0800
€ 0.50
