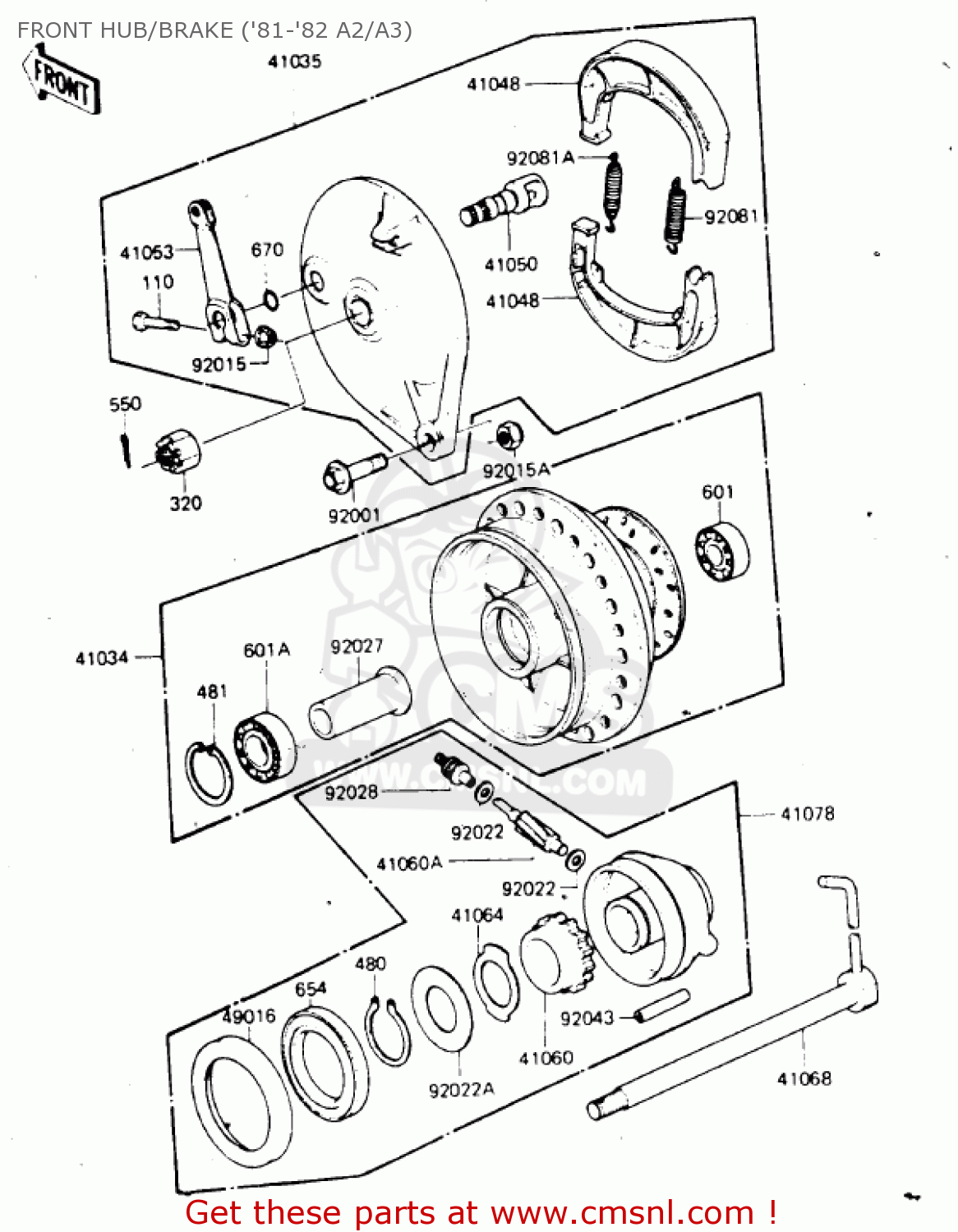

FRONT HUB/BRAKE ('81-'82 A2/A3)

ref

part #

description

quantity

41034

410341016
ref: 41034

DRUM ASSY,FRONT

€ 304.50

41035

410351070
ref: 41035

PANEL-ASSY-BRAKE,FR

€ 207.00

41048

410481015
ref: 41048

SHOE-BRAKE (MCA)

€ 14.50

41050

410501016
ref: 41050

CAM SHAFT,FR BRAKE

€ 15.00

41053

410531018
ref: 41053

LEVER-BRAKE CAM

€ 34.00

41060

41059024
ref: 41060

GEAR,SPEEDOMETER,24T

€ 22.50

41060A

41060015
ref: 41060A

PINION,SPEEDOMETER

€ 17.00

41064

41064011
ref: 41064

RECEIVER,SPEED GEAR

€ 4.00

41068

410681042
ref: 41068

AXLE,FRONT

€ 35.50

41078

41078009
ref: 41078

GEAR BOX ASSY

€ 106.00

49016

41042013
ref: 49016

DUST COVER

€ 12.00

92001

920011182
ref: 92001

BOLT,10X45

€ 6.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92015A

92019021
ref: 92015A

NUT,LOCK,10M/M

€ 2.00

92022

41063001
ref: 92022

WASHER-THRST SPD PINI

€ 3.00

92022A

41065004
ref: 92022A

WASHER,19.5X26X0.8

€ 2.00

92027

920271073
ref: 92027

COLLAR,FRONT BEARING

€ 30.50

92028

41062005
ref: 92028

BUSHING,SPEEDOMETER C

€ 12.00

92043

41082001
ref: 92043

PIN-SPRING

€ 2.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92081A

920811550
ref: 92081A

SPRING,BRAKE SHOE

€ 6.00

110

112G0630
ref: 110

BOLT-UPSET

€ 1.00

320

320G1200
ref: 320

NUT-CASTLE

€ 2.50

480

480J1900
ref: 480

CIRCLIP-TYPE-C,19MM

€ 1.00

481

481J3700
ref: 481

CIRCLIP-TYPE-C,37MM

€ 1.50

550

550D3228
ref: 550

PIN-COTTER,3.2X28

€ 1.50

601

601B6201U
ref: 601

BEARING-BALL,#6201LUC

€ 18.50

601A

601B6301U
ref: 601A

BEARING-BALL,#6301UC3

€ 27.00

654

654A405208
ref: 654

OIL SEAL

€ 9.00

670

670B2012
ref: 670

O RING,12MM

€ 1.00

all assemblies
