FRONT HUB/BRAKE ('80 A1)
KDX175-A2 KDX175 1981 USA CANADA

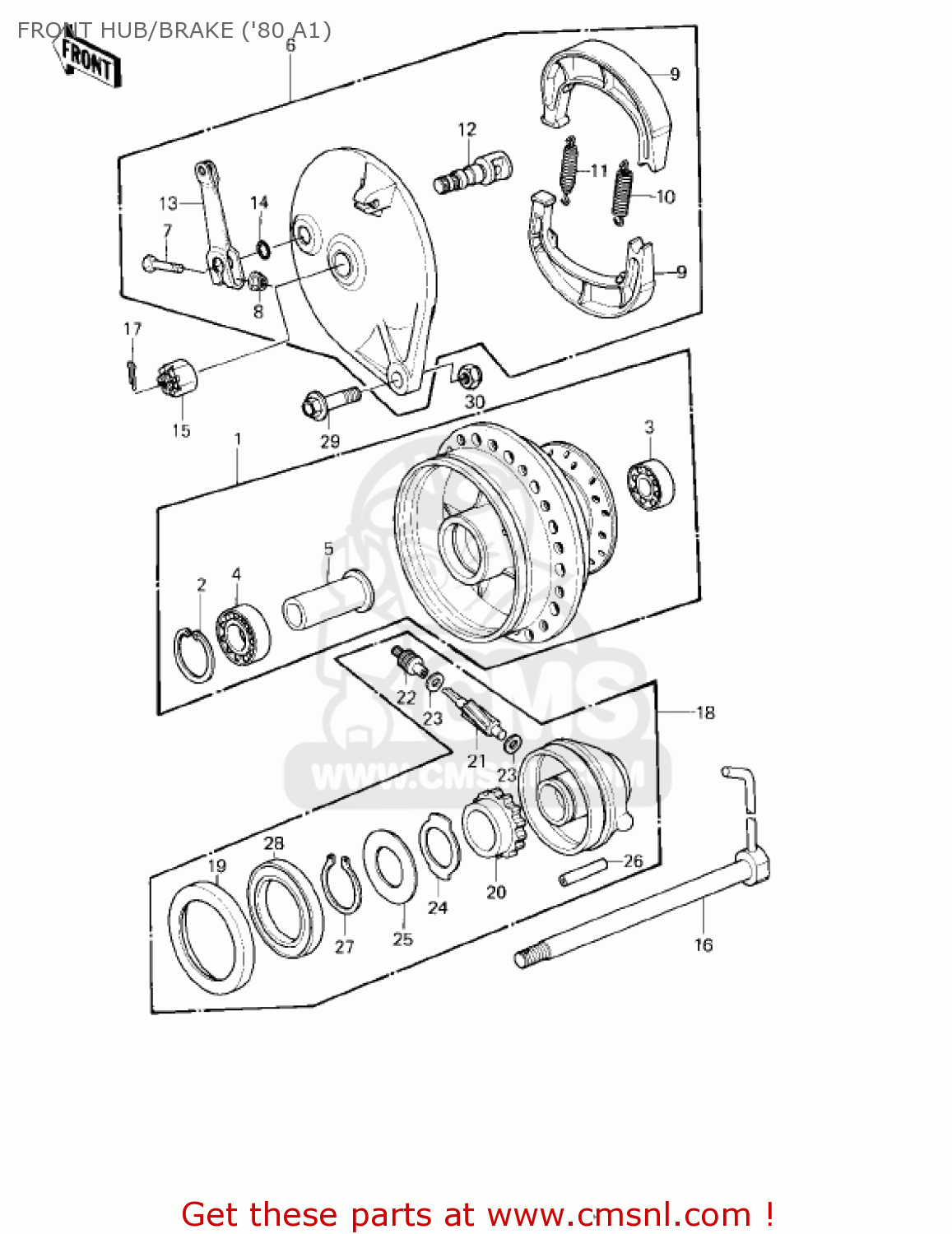

Front hub/brake ('80 a1) diagram KDX175-A2 KDX175 1981 USA CANADA
FRONT HUB/BRAKE ('80 A1) KDX175-A2 KDX175 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
410341016
ref: 1
DRUM ASSY,FRONT
€ 304.50
2
481J3700
ref: 2
CIRCLIP-TYPE-C,37MM
€ 1.50
3
601B6201U
ref: 3
BEARING-BALL,#6201LUC
€ 18.50
4
601B6301U
ref: 4
BEARING-BALL,#6301UC3
€ 27.00
5
920271073
ref: 5
COLLAR,FRONT BEARING
€ 30.50
6
410351030
ref: 6
PANEL ASSY,FR BRAKE
€ 225.50
7
112G0630
ref: 7
BOLT-UPSET
€ 1.00
8
920151078
ref: 8
NUT,6M/M
€ 1.50
9
41048015
ref: 9
SHOE,BRAKE (MCA)
€ 14.50
10
920811766
ref: 10
SPRING,BRAKE SHOE
€ 5.50
11
920811550
ref: 11
SPRING,BRAKE SHOE
€ 6.00
12
410501016
ref: 12
CAM SHAFT,FR BRAKE
€ 15.00
13
410531018
ref: 13
LEVER-BRAKE CAM
€ 34.00
14
670B2012
ref: 14
O RING,12MM
€ 1.00
15
320G1200
ref: 15
NUT-CASTLE
€ 2.50
16
410681042
ref: 16
AXLE,FRONT
€ 35.50
17
550D3228
ref: 17
PIN-COTTER,3.2X28
€ 1.50
18
41078009
ref: 18
GEAR BOX ASSY
€ 106.00
19
41042013
ref: 19
DUST COVER
€ 12.00
20
41059024
ref: 20
GEAR,SPEEDOMETER,24T
€ 22.50
21
41060015
ref: 21
PINION,SPEEDOMETER
€ 17.00
22
41062005
ref: 22
BUSHING,SPEEDOMETER C
€ 12.00
23
41063001
ref: 23
WASHER-THRST SPD PINI
€ 3.00
24
41064011
ref: 24
RECEIVER,SPEED GEAR
€ 4.00
25
41065004
ref: 25
WASHER,19.5X26X0.8
€ 2.00
26
41082001
ref: 26
PIN-SPRING
€ 2.50
27
480J1900
ref: 27
CIRCLIP-TYPE-C,19MM
€ 1.00
28
654A405208
ref: 28
OIL SEAL
€ 9.00
29
920011182
ref: 29
BOLT,10X45
€ 6.00
30
92019021
ref: 30
NUT,LOCK,10M/M
€ 2.00
