TAILLIGHT(S)

ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

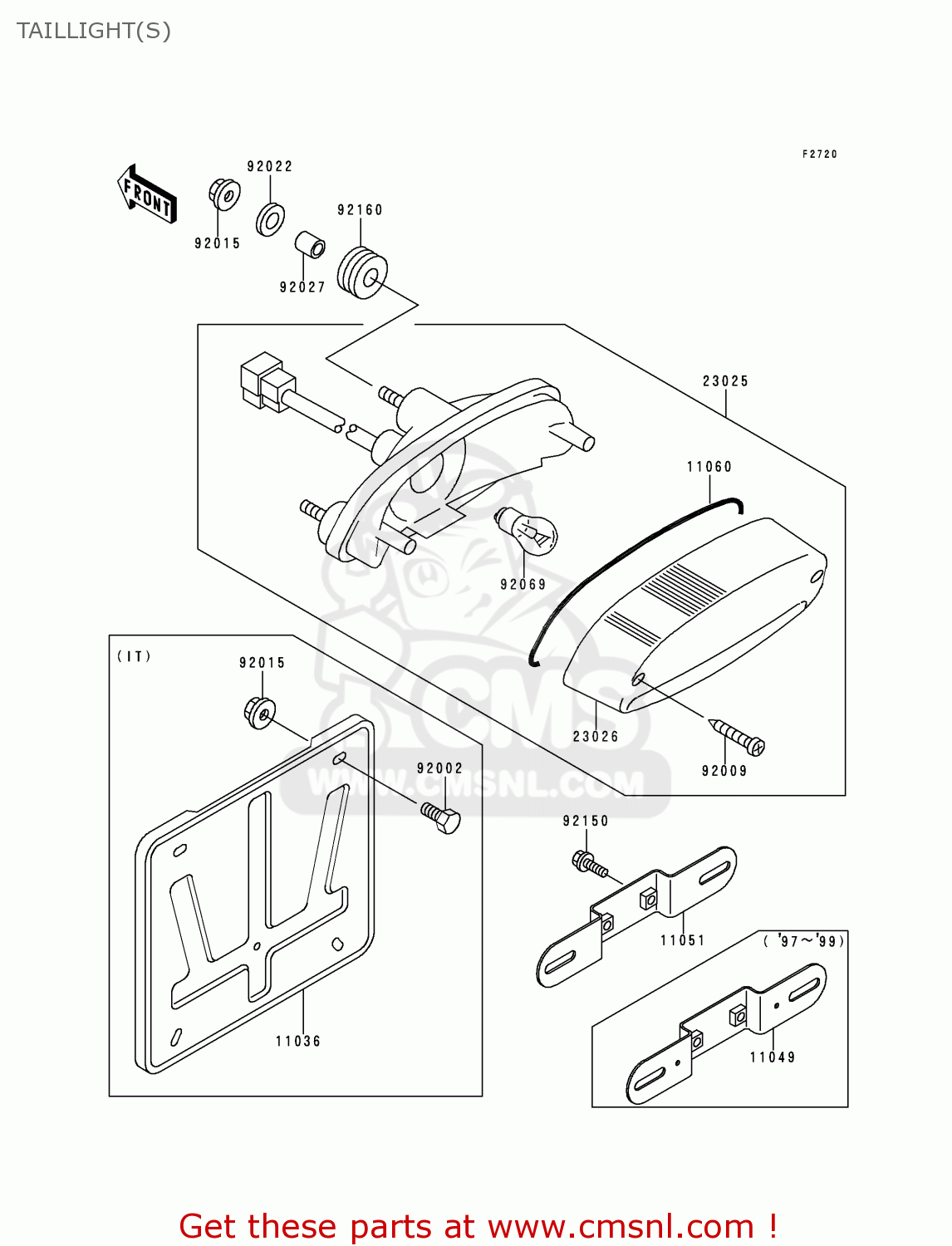

Taillight(s) diagram ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

TAILLIGHT(S) ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP
TAILLIGHT(S) ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP
TAILLIGHT(S) ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP
prices are in EUR
ref
part #
description
quantity
11051
110511503
ref: 11051
BRACKET,LICENSE
110511503
€ 11.50
11060
110601174
ref: 11060
GASKET,TAIL LAMP LENS (NAS)
110601174
€ 7.00
23025
230251249
ref: 23025
LAMP-TAIL
230251249
€ 97.50
23026
230261183
ref: 23026
LENS,TAIL LAMP
230261183
€ 39.00
92009
920091378
ref: 92009
SCREW,TAPPING,4X20
920091378
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
920221557
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92150
921501909
ref: 92150
BOLT
921501909
€ 3.00
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
