FRAME FITTINGS

ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

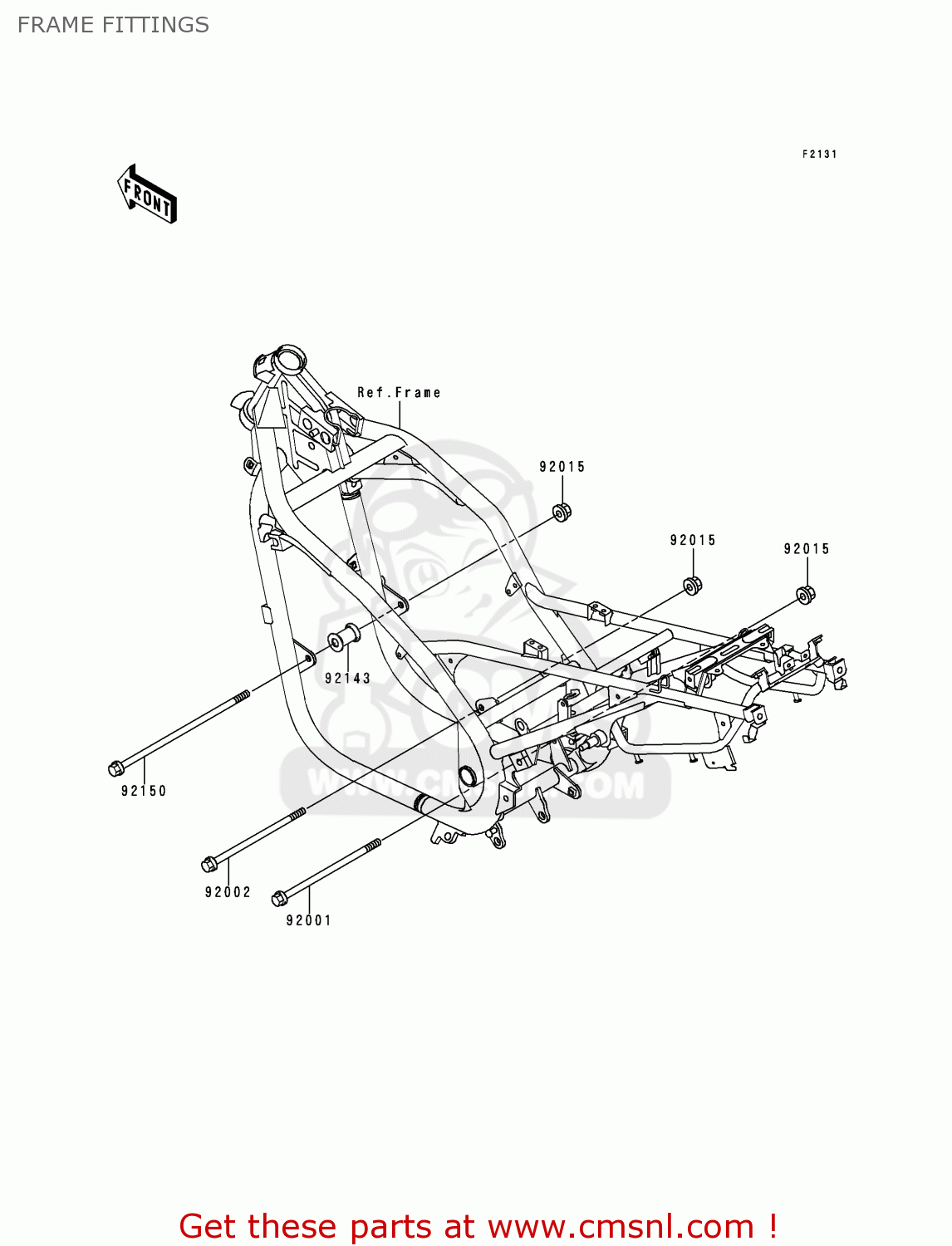

Frame fittings diagram ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

FRAME FITTINGS ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

FRAME FITTINGS ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

prices are in EUR

ref

part #

description

quantity

92001

920011621
ref: 92001

BOLT,FLANGED,10X180

€ 15.00

92002

920021470
ref: 92002

BOLT,FLANGED,10X170

€ 13.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92143

921431276
ref: 92143

COLLAR,L=34

€ 11.00

92150

921501742
ref: 92150

BOLT

€ 13.00
