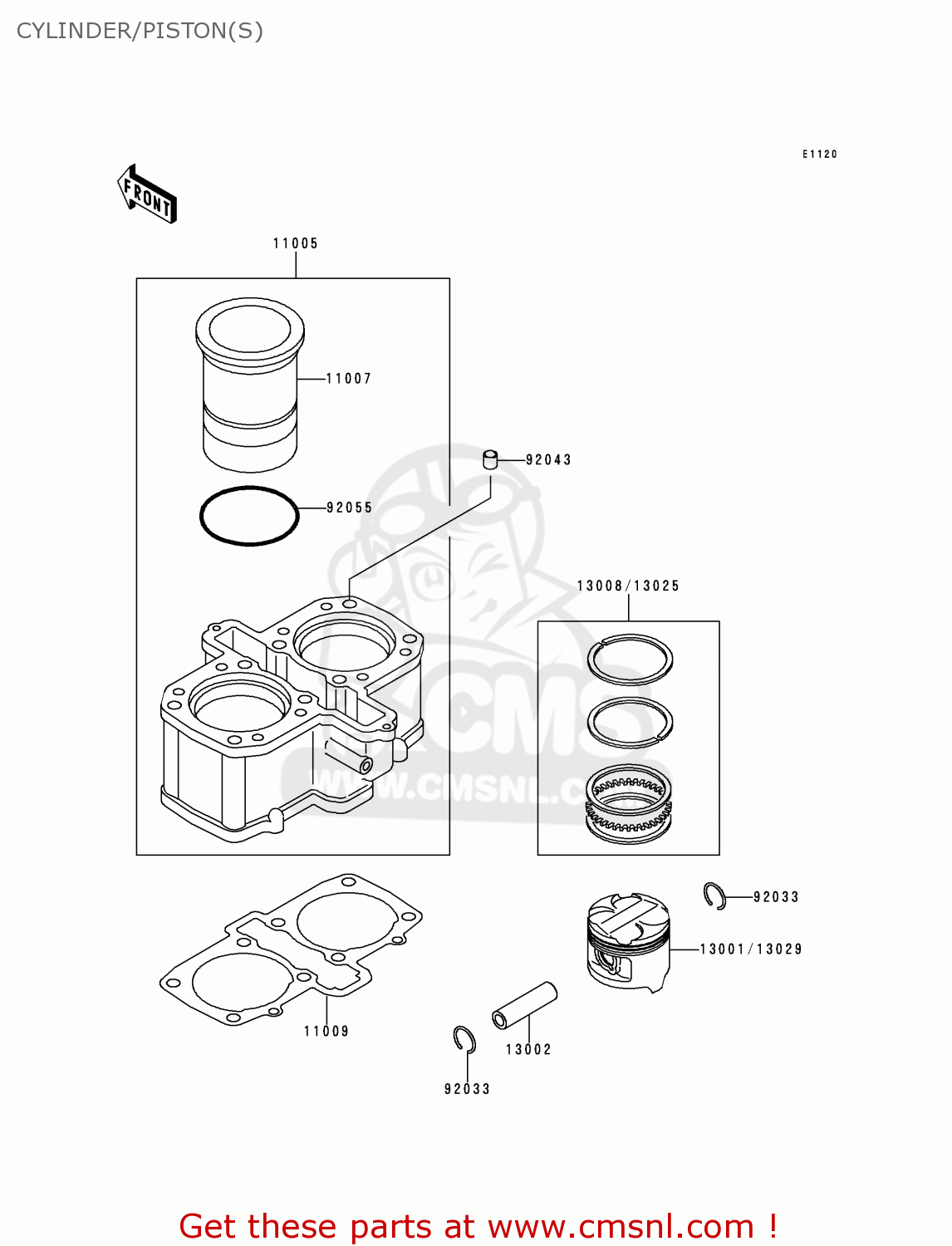

CYLINDER/PISTON(S)

ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

Cylinder/piston(s) diagram ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

prices are in EUR

ref

part #

description

quantity

11005

110051838
ref: 11005

CYLINDER-ENGINE

€ 1,275.00

11007

110071096
ref: 11007

LINER-CYLINDER

€ 93.50

11009

110091640
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 33.00

13001

130011251
ref: 13001

PISTON-ENGINE,STD

€ 73.00

13002

130021058
ref: 13002

PIN-PISTON

€ 17.00

13008

130081084
ref: 13008

RING-SET-PISTON,STD

€ 63.00

13025

130251084
ref: 13025

RING-SET-PISTON L,O/S

€ 75.00

13029

130291160
ref: 13029

PISTON-ENGINE L,O/S 0

€ 79.00

92033

920331099
ref: 92033

RING-SNAP,18MM

€ 0.50

92043

920431279
ref: 92043

PIN,11.5X14X14

€ 3.00

92055

920551247
ref: 92055

RING-O,80.6X2.4

€ 8.00

CYLINDER/PISTON(S)

all assemblies
