IGNITION SYSTEM

ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

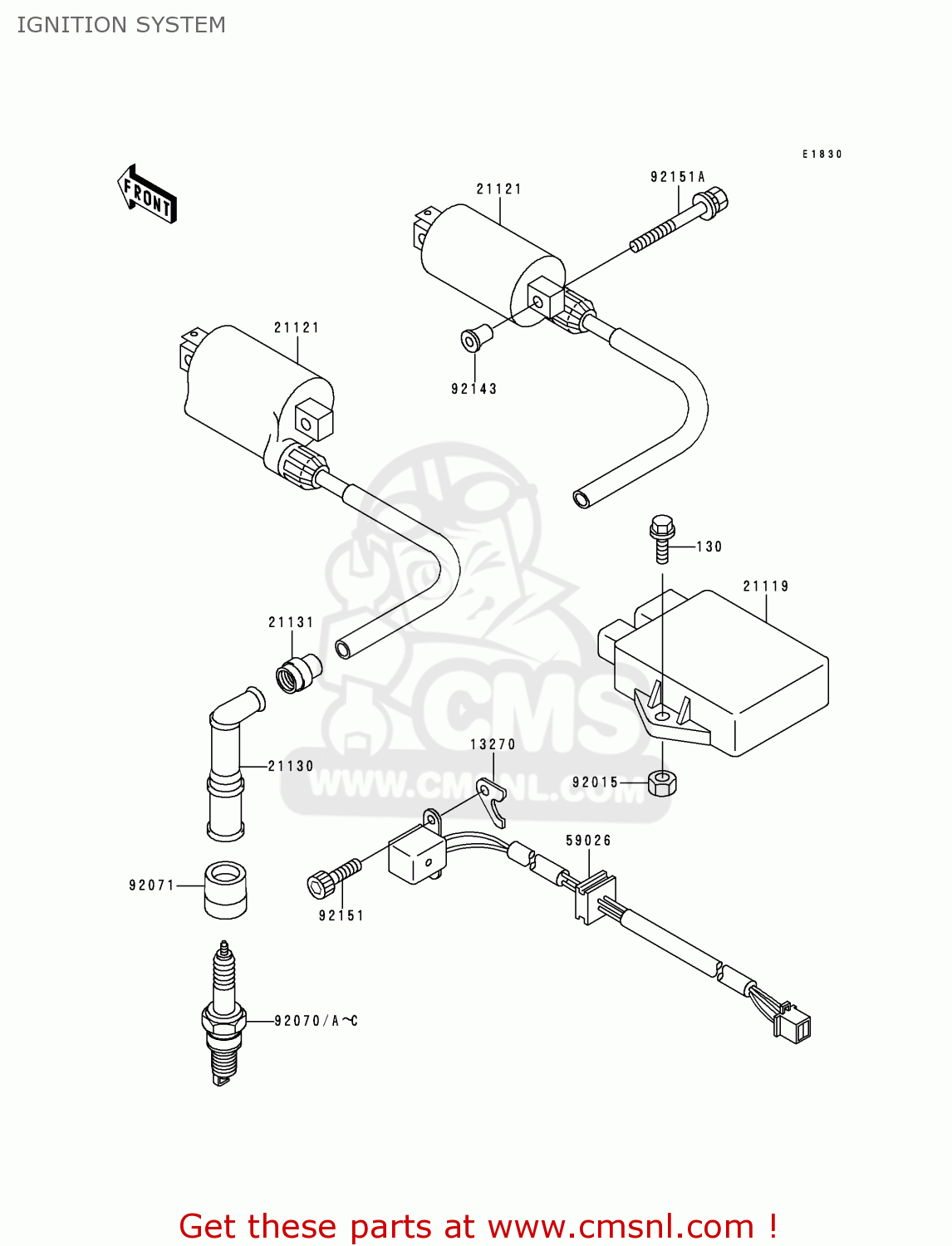

Ignition system diagram ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

prices are in EUR

ref

part #

description

quantity

130

130J0630
ref: 130

BOLT FLANGED,6X30,BLC

€ 2.50

13270

132701721
ref: 13270

PLATE

€ 5.50

21119

211191494
ref: 21119

IGNITER

€ 616.50

21121

211211269
ref: 21121

COIL-IGNITION

€ 130.00

21130

211301068
ref: 21130

CAP-SPARK PLUG

€ 28.00

21131

21131005
ref: 21131

GROMMET,TENSION,ITALY

€ 4.00

59026

590261141
ref: 59026

COIL-PULSING

€ 110.50

92015

920151692
ref: 92015

NUT

€ 4.50

92070

ref: 92070

92070A

ref: 92070A

92070B

920701189
ref: 92070B

DR9EA (NGK SPARKPLUG)

€ 4.00

92070C

920701199
ref: 92070C

DR8EA (NGK SPARKPLUG)

€ 4.00

92071

920711146
ref: 92071

GROMMET,PLUG CAP

€ 6.50

92143

921431934
ref: 92143

COLLAR

€ 3.50

92151

921511118
ref: 92151

BOLT

€ 1.00

92151A

921511173
ref: 92151A

BOLT

€ 3.00
