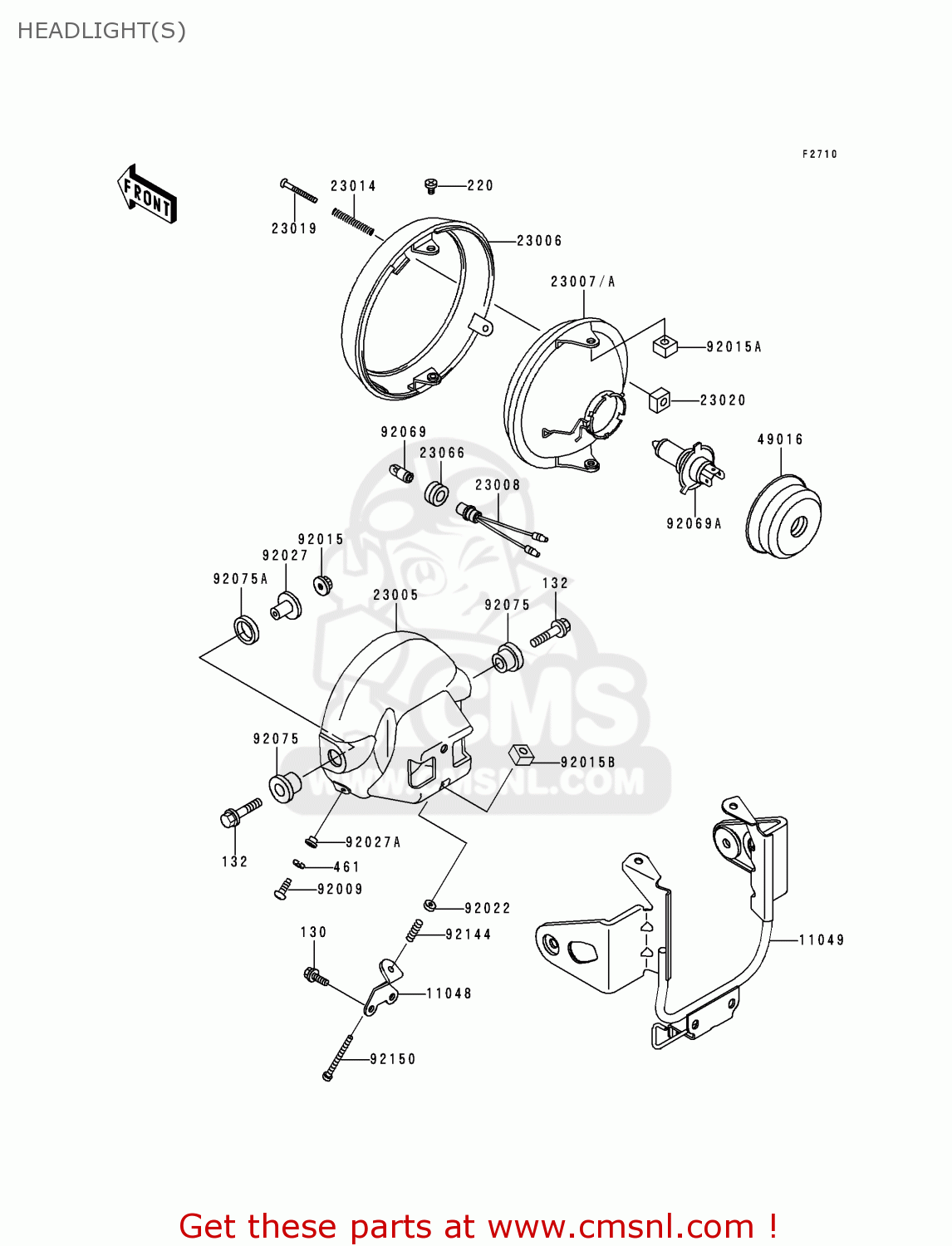

HEADLIGHT(S)

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

132

132E0840
ref: 132

BOLT-FLANGED-SMALL

€ 4.00

220

220D0510
ref: 220

SCREW-PAN-CROS

€ 0.50

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

11048

110481816
ref: 11048

BRACKET,HEAD LAMP BOD

€ 5.00

11049

110491909
ref: 11049

BRACKET,HEAD LAMP

€ 51.00

23005

23005110221
ref: 23005

BODY-COMP-HEAD LAMP,F

€ 78.50

23006

230061020
ref: 23006

RIM-LAMP,CR PLATED

€ 34.50

23007

230071250
ref: 23007
EUFGFRISNRSP

LENS-COMP,HEAD LAMP

€ 136.00

23007A

230071251
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 143.00

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

23014

23014005
ref: 23014

SPRING-FOCUS ADJUST

€ 2.50

23019

23019021
ref: 23019

SCREW-FORCUS ADJUST

€ 3.00

23020

23020018
ref: 23020

NUT,4MM,FOCUS ADJUST

€ 3.00

23066

23066008
ref: 23066

DAMPER,PARKING LAMP

€ 3.00

49016

490161046
ref: 49016

COVER-SEAL,HEAD LAMP

€ 7.50

92009

920091693
ref: 92009

SCREW,5X16

€ 2.50

92015

920151014
ref: 92015

NUT,8MM

€ 0.50

92015A

920151157
ref: 92015A

NUT,5MM

€ 3.50

92015B

920151799
ref: 92015B

NUT,5MM,FOCUS ADJUST

€ 3.00

92022

920221380
ref: 92022

WASHER,5.2X13X1

€ 2.50

92027

920271131
ref: 92027

COLLAR,HEAD LAMP FITT

€ 6.00

92027A

920271503
ref: 92027A

COLLAR,HEAD LAMP,BLAC

€ 2.50

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00

92075

920751109
ref: 92075

DAMPER,HEAD LAMP FITT

€ 4.00

92075A

920751110
ref: 92075A

DAMPER,HEAD LAMP FITT

€ 3.00

92144

921441417
ref: 92144

SPRING

€ 3.00

92150

921501590
ref: 92150

BOLT,ADJUST,5X45

€ 4.50
