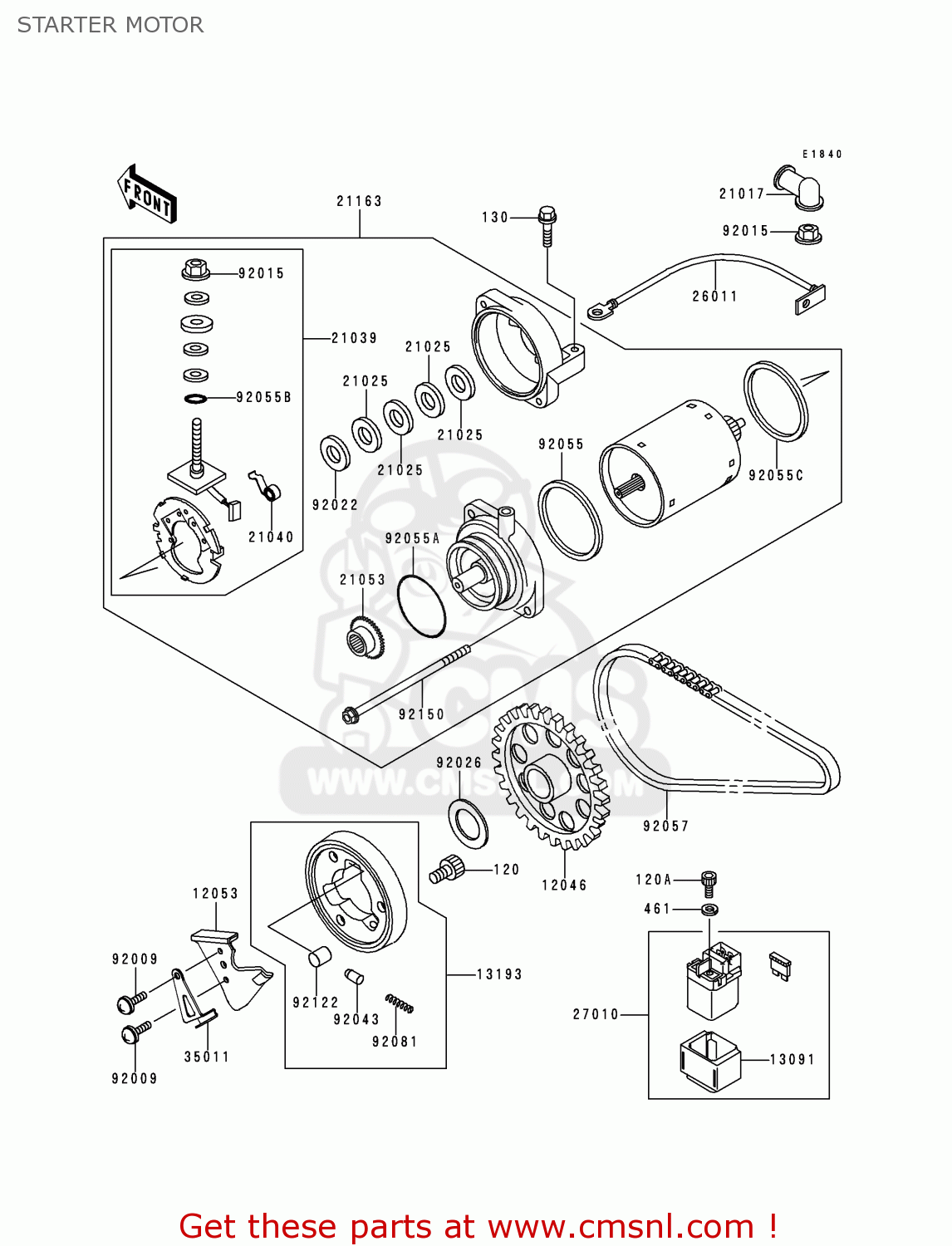

STARTER MOTOR

ref

part #

description

quantity

120

120P0816
ref: 120

BOLT-SOCKET

€ 2.50

120A

120S0510
ref: 120A

BOLT-SOCKET

€ 0.50

130

130Y0625
ref: 130

BOLT-FLANGED

€ 2.00

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

12046

120461072
ref: 12046

SPROCKET,ONEWAY CLUTC

€ 69.00

12053

120531214
ref: 12053

GUIDE-CHAIN

€ 29.50

13091

130911992
ref: 13091

HOLDER

€ 5.50

13193

131931060
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 122.00

21017

21017017
ref: 21017

GROMMET-CORD

€ 6.50

21025

21025011
ref: 21025

WASHER, THRUST, 0.2T

€ 4.00

21039

210391062
ref: 21039

BRUSH,CARBON

€ 81.00

21040

210401057
ref: 21040

SPRING-BRUSH

€ 5.50

21053

210531057
ref: 21053

SPROCKET-ASSY

€ 28.50

21163

211631274
ref: 21163

STARTER-ELECTRIC

€ 466.50

26011

260111636
ref: 26011

WIRE-LEAD,STARTER MOT

€ 43.00

27010

270101376
ref: 27010

SWITCH,MAGNETIC

€ 106.50

35011

350111792
ref: 35011

STAY,CHAIN GUIDE

€ 3.50

92009

920091765
ref: 92009

SCREW

€ 2.00

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

920221132
ref: 92022

WASHER,9.1X18X0.8

€ 4.00

92026

920261285
ref: 92026

SPACER,25.2X40X1.0

€ 4.00

92043

92043087
ref: 92043

PIN

€ 8.00

92055

920551086
ref: 92055

O RING,64MM

€ 6.50

92055A

920551313
ref: 92055A

RING-O

€ 5.50

92055B

920551370
ref: 92055B

RING-O,4.5X2.0

€ 3.00

92055C

920551381
ref: 92055C

RING-O,STARTER MOTOR

€ 6.50

92057

920571197
ref: 92057

CHAIN,STARTER,BF05MX6

€ 15.50

92081

92081110
ref: 92081

SPRING

€ 3.00

92122

92122004
ref: 92122

ROLLER,15X13

€ 7.00

92150

921501138
ref: 92150

BOLT,STARTER

€ 6.00

all assemblies
