GEAR CHANGE MECHANISM

ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

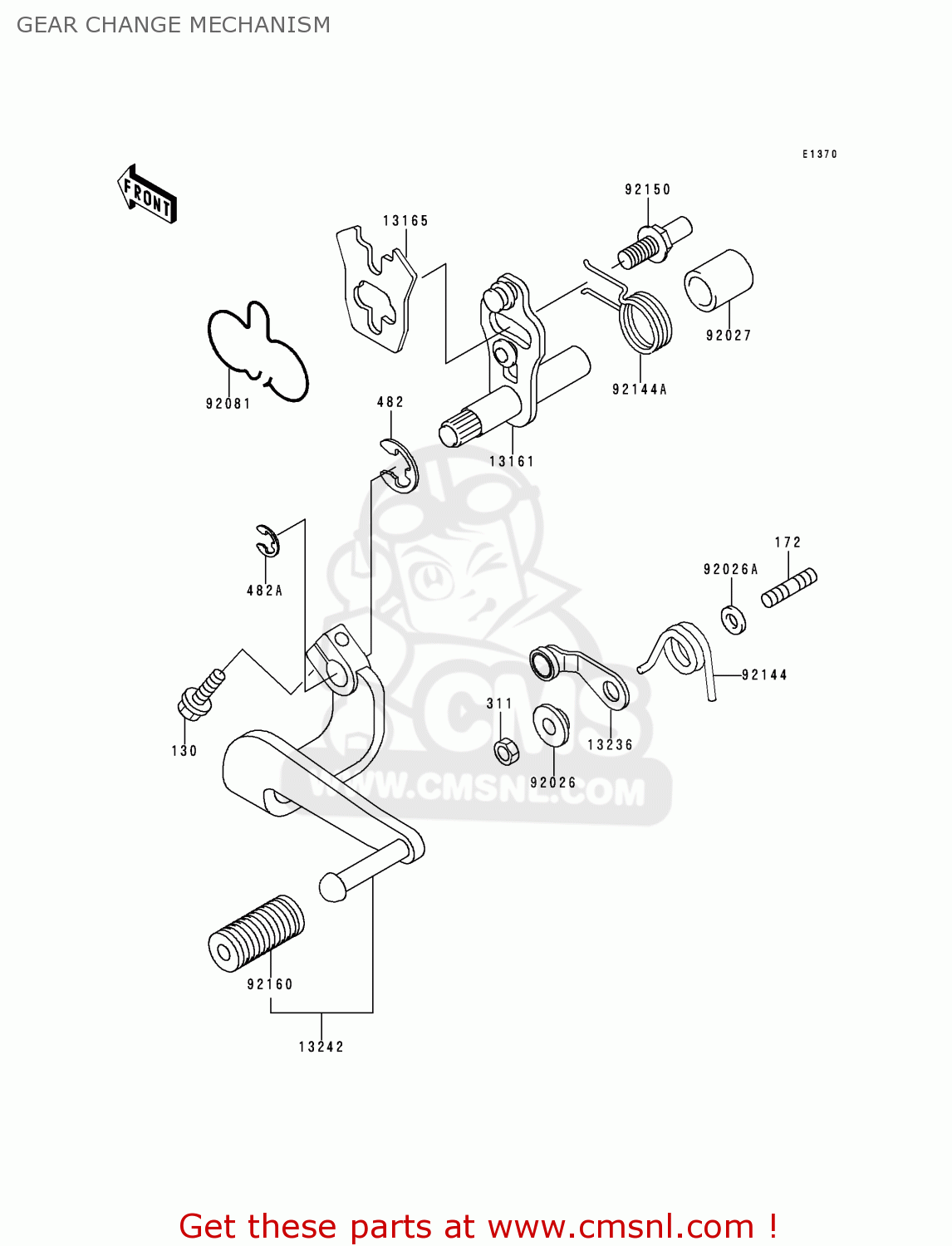

Gear change mechanism diagram ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

172

172G0614
ref: 172

STUD,6X14

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

482A

482L7000
ref: 482A

CIRCLIP-TYPE-E

€ 2.50

13161

131611235
ref: 13161

LEVER-COMP-CHANGE SHA

€ 47.50

13165

131651034
ref: 13165

PAWL,CHANGE LEVER

€ 7.00

13236

132361216
ref: 13236

LEVER-COMP,GEAR POSIT

€ 9.00

13242

132421340
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 35.50

92026

920261217
ref: 92026

SPACER

€ 3.50

92026A

920261484
ref: 92026A

SPACER,6.3X12X2.0

€ 1.50

92027

920271440
ref: 92027

COLLAR,13X18.3X21.5

€ 3.50

92081

920811785
ref: 92081

SPRING,CHANGE LEVER

€ 6.00

92144

921441968
ref: 92144

SPRING,POSITION

€ 5.50

92144A

921441983
ref: 92144A

SPRING,RETURN

€ 5.50

92150

921501869
ref: 92150

BOLT,RETURN SPRING

€ 7.00

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50

GEAR CHANGE MECHANISM

all assemblies
