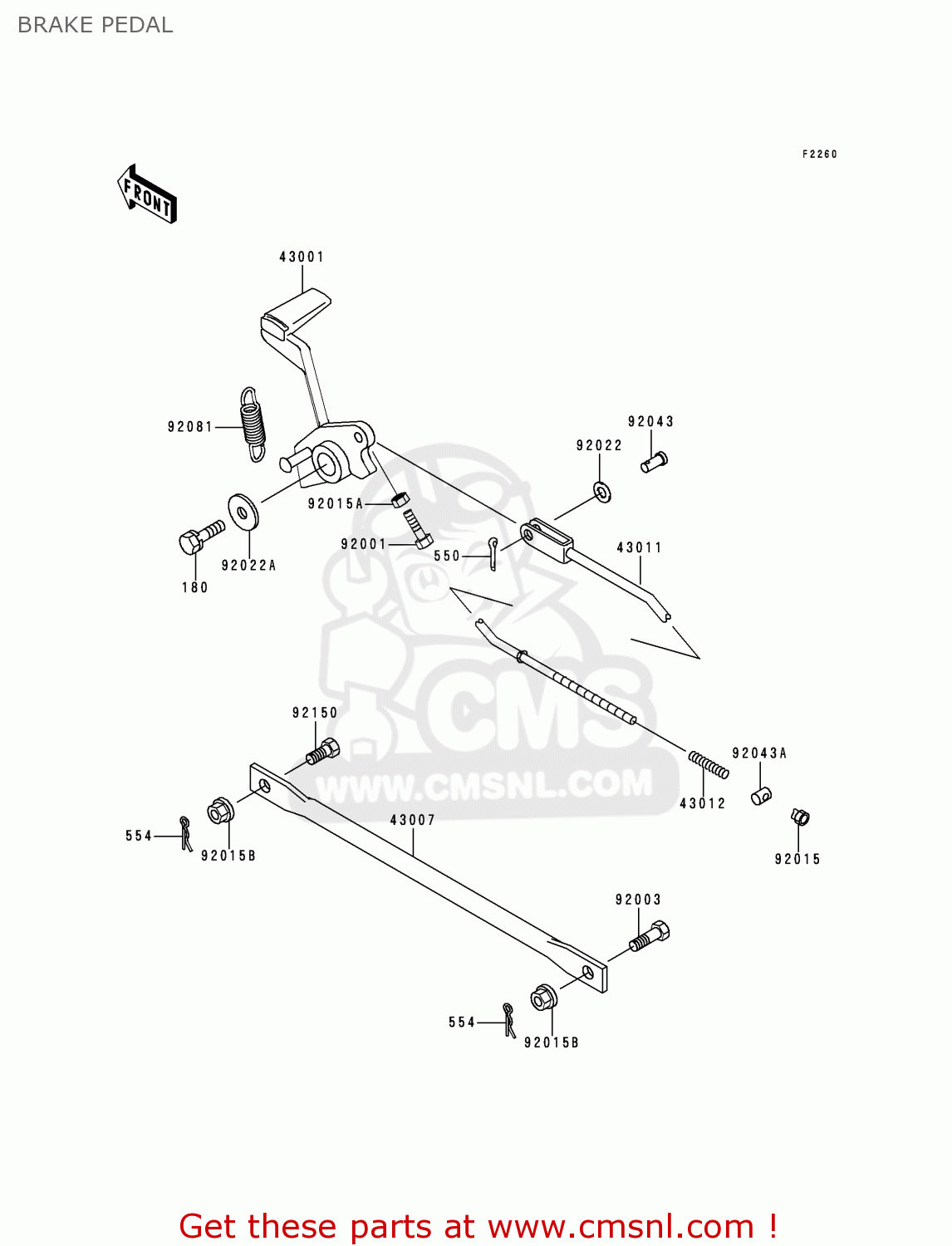

BRAKE PEDAL

ref

part #

description

quantity

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

43001

430011379
ref: 43001

LEVER-BRAKE,PEDAL

€ 30.00

43007

430071183
ref: 43007

ROD-TORQUE

€ 17.50

43011

430111136
ref: 43011

ROD-BRAKE

€ 13.50

43012

43012001
ref: 43012

SPRING,BRAKE ROD

€ 3.00

92001

920011090
ref: 92001

BOLT,HEX HEAD,6X25

€ 2.50

92003

92003034
ref: 92003

BOLT-HEX HEAD,10MM

€ 9.00

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151391
ref: 92015A

NUT,6MM

€ 2.00

92015B

920151428
ref: 92015B

NUT,FLANGED,10MM

€ 3.00

92022

920221556
ref: 92022

WASHER,STEP,RR

€ 0.50

92022A

920221557
ref: 92022A

WASHER,6.5X20X1.6

€ 1.00

92043

92043064
ref: 92043

PIN-BRAKE ROD FITTING

€ 4.50

92043A

92043065
ref: 92043A

PIN-BRAKE ROD

€ 3.50

92081

920811147
ref: 92081

SPRING,BRAKE PEDAL

€ 8.00

92150

921501873
ref: 92150

BOLT,10X25

€ 3.50
