FRONT HUB

ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

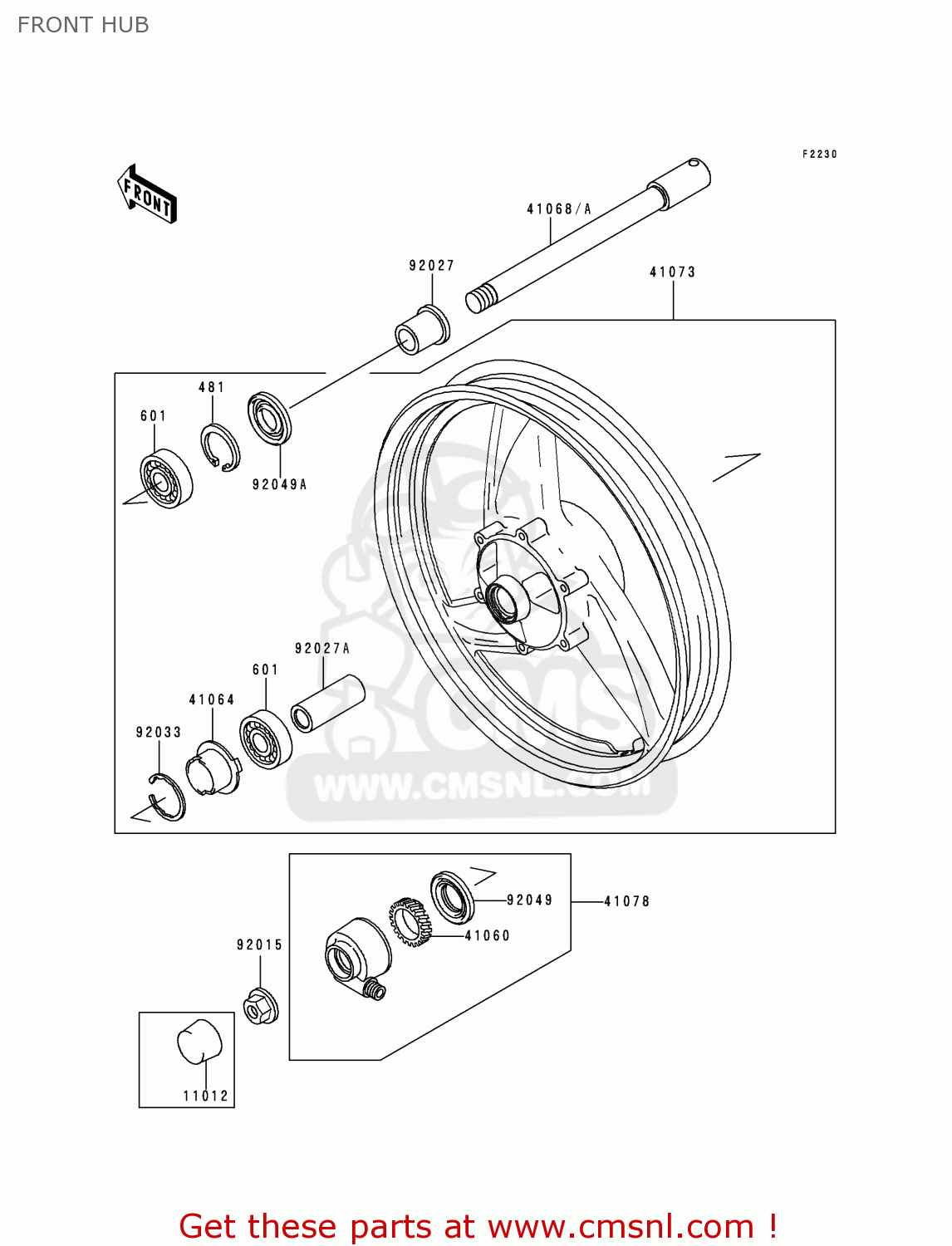

Front hub diagram ER500A4 ER5 2000 EUROPE UK FR FG IS NR SP

prices are in EUR

ref

part #

description

quantity

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6202UU
ref: 601

BEARING-BALL

€ 21.00

11012

110121591
ref: 11012

CAP,AXLE NUT

€ 3.00

41060

410601107
ref: 41060

GEAR-METER SCREW,23T

€ 21.50

41064

410641006
ref: 41064

RECEIVER,SPEEDOMETER

€ 9.50

41068A

410681422
ref: 41068A

AXLE,FR

€ 55.50

41073

410731614GE
ref: 41073

WHEEL-ASSY,FR,G.GRAY

€ 701.50

41078

410781055
ref: 41078

CASE-ASSY-METER GEAR

€ 102.50

92015

920151407
ref: 92015

NUT,14MM

€ 6.50

92027

920271118
ref: 92027

COLLAR,L=34

€ 10.00

92027A

920271980
ref: 92027A

COLLAR,15.2X22X60

€ 9.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92049A

920491348
ref: 92049A

SEAL-OIL

€ 7.50

FRONT HUB

all assemblies
