TAIL LAMP
EN500A4 1993 FRANCE NL FG

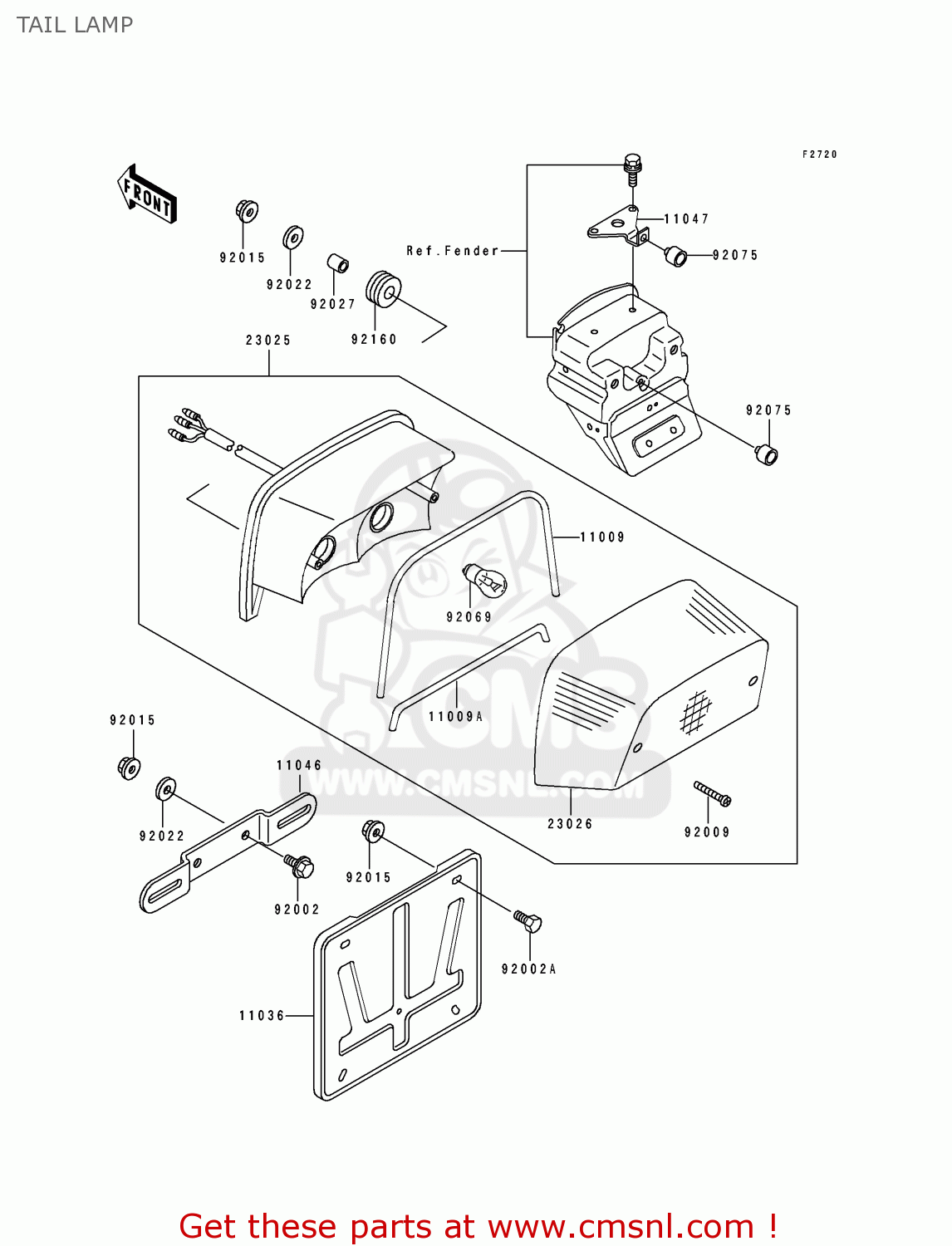

Tail lamp diagram EN500A4 1993 FRANCE NL FG
TAIL LAMP EN500A4 1993 FRANCE NL FG
×
prices are in EUR
ref
part #
description
quantity
11009
110091811
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 6.00
11009A
110091812
ref: 11009A
GASKET,TAIL LAMP LENS (NAS)
€ 4.50
11046
110461109
ref: 11046
BRACKET,LICENSE PLATE
€ 13.00
11047
110471074
ref: 11047
BRACKET,REAR FENDER
€ 11.00
23025
230251204
ref: 23025
LAMP-TAIL
€ 83.00
23026
230261122
ref: 23026
LENS,TAIL LAMP
€ 60.50
92002
920021124
ref: 92002
BOLT,6X16
€ 2.50
92009
920091506
ref: 92009
SCREW,TAPPING,4X30
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92075
92075035
ref: 92075
DAMPER
€ 3.00
92160
921601162
ref: 92160
DAMPER
€ 3.00
