IGNITION SWITCH
EN500A4 1993 FRANCE NL FG

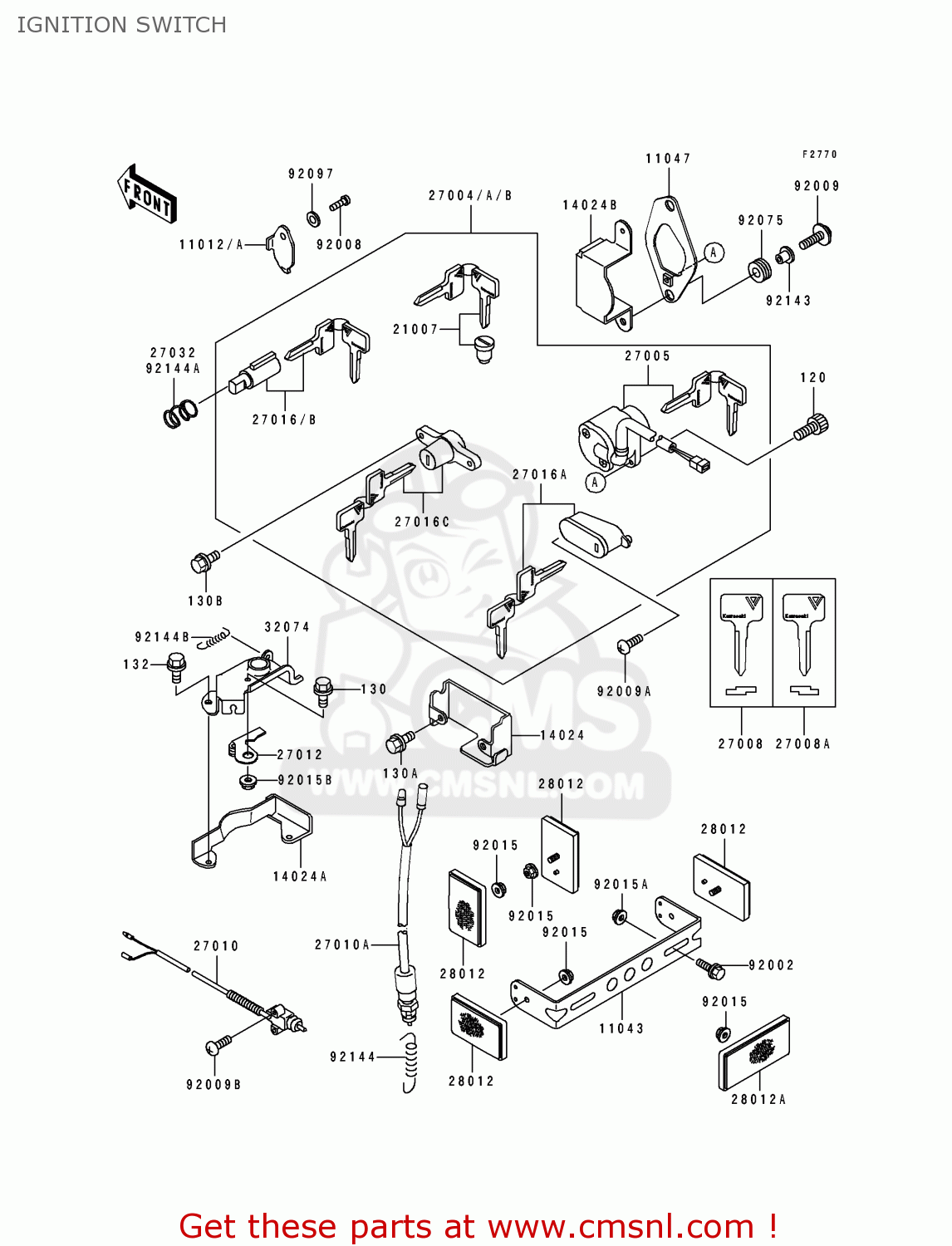

Ignition switch diagram EN500A4 1993 FRANCE NL FG
IGNITION SWITCH EN500A4 1993 FRANCE NL FG
×
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
FG
CAP,STEERING LOCK
€ 4.50
11012A
110121736
ref: 11012A
FRNL
CAP,STEERING LOCK
€ 4.50
11047
110471075
ref: 11047
BRACKET,IGNITION SWIT
€ 8.50
14024
140241882
ref: 14024
COVER,SEAT LOCK,RR
€ 7.50
14024A
140241952
ref: 14024A
COVER,SEAT LOCK,FR
€ 7.50
14024B
140241957
ref: 14024B
COVER,IGNITION SWITCH
€ 9.00
21007
210075024
ref: 21007
ROTOR,LOCK,TANK CAP
€ 50.50
27004
270045379
ref: 27004
FRNL
SWITCH-ASSY
€ 257.50
27004A
270045380
ref: 27004A
FG
SWITCH-ASSY
€ 268.00
27005
270051148
ref: 27005
SWITCH-ASSY-IGNITION
€ 183.50
27008
270081138
ref: 27008
KEY-LOCK,BLANK
€ 13.00
27008A
270081139
ref: 27008A
KEY-LOCK,BLANK
€ 13.00
27010
270101223
ref: 27010
SWITCH,SIDE STAND
€ 48.00
27010A
270101238
ref: 27010A
SWITCH,REAR BRAKE
€ 21.50
27012
270121421
ref: 27012
HOOK,SEAT LOCK
€ 8.50
27016
270161005
ref: 27016
FG
LOCK-ASSY,STEERING
€ 65.00
27016A
270165129
ref: 27016A
LOCK-ASSY,HELMET
€ 58.00
27016B
270165131
ref: 27016B
FRNL
LOCK-ASSY,STEERING
€ 66.50
27016C
270165162
ref: 27016C
LOCK-ASSY,SEAT
€ 44.00
27032
27032001
ref: 27032
FG
SPRING-STEERING LOCK
€ 3.50
120
120P0512
ref: 120
BOLT,ALLEN,5X12
€ 1.00
130
130B0510
ref: 130
BOLT-FLANGED
€ 1.50
130A
130C0510
ref: 130A
BOLT-FLANGED
€ 2.50
130B
130D0608
ref: 130B
BOLT-FLANGED
€ 0.50
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.50
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
€ 16.00
32074
320741141
ref: 32074
BRACKET-LOCK,SEAT
€ 13.50
92008
92008007
ref: 92008
SCREW-TAPPING
€ 2.50
92009
920091256
ref: 92009
SCREW,6X22,BLACK
€ 1.50
92009A
920091296
ref: 92009A
SCREW,5X12
€ 2.50
92009B
920091459
ref: 92009B
SCREW
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92015B
920151812
ref: 92015B
NUT,5MM
€ 2.00
92075
92075051
ref: 92075
DAMPER RUBBER
€ 2.50
92097
92097003
ref: 92097
WASHER
€ 2.50
92143
921431019
ref: 92143
COLLAR,L=7.4
€ 3.00
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
€ 3.50
92144A
921441222
ref: 92144A
FRNL
SPRING,STEERING LOCK
€ 2.50
92144B
921441520
ref: 92144B
SPRING
€ 2.50
