FRAME FITTING

EN500A4 1993 FRANCE NL FG

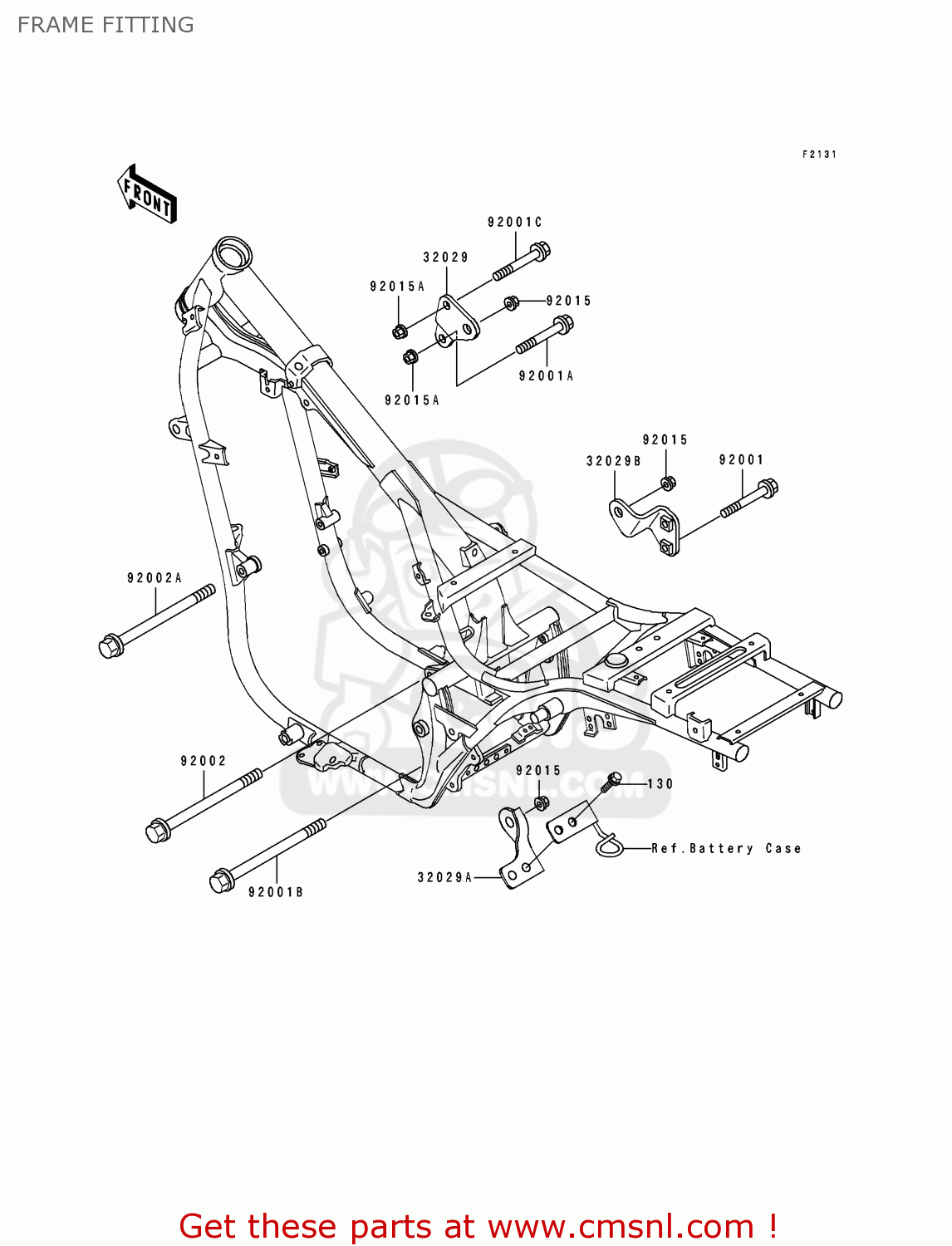

Frame fitting diagram EN500A4 1993 FRANCE NL FG

prices are in EUR

ref

part #

description

quantity

130

130J0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

32029

320291377
ref: 32029

BRACKET-ENGINE,FR,RH

€ 9.50

32029A

320291379
ref: 32029A

BRACKET-ENGINE,RR,LWR

€ 8.50

32029B

320291727
ref: 32029B

BRACKET-ENGINE,RR,UPP

€ 10.50

92001

920011613
ref: 92001

BOLT,FLANGED,8X45

€ 3.00

92001A

920011615
ref: 92001A

BOLT,FLANGED,8X60

€ 4.00

92001B

920011621
ref: 92001B

BOLT,FLANGED,10X180

€ 15.00

92001C

920011641
ref: 92001C

BOLT,FLANGED,8X55,BLA

€ 4.50

92002

920021470
ref: 92002

BOLT,FLANGED,10X170

€ 13.50

92002A

920021531
ref: 92002A

BOLT,FLANGED,10X230

€ 13.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151251
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.50
