RADIATOR
EN500A4 1993 FRANCE NL FG

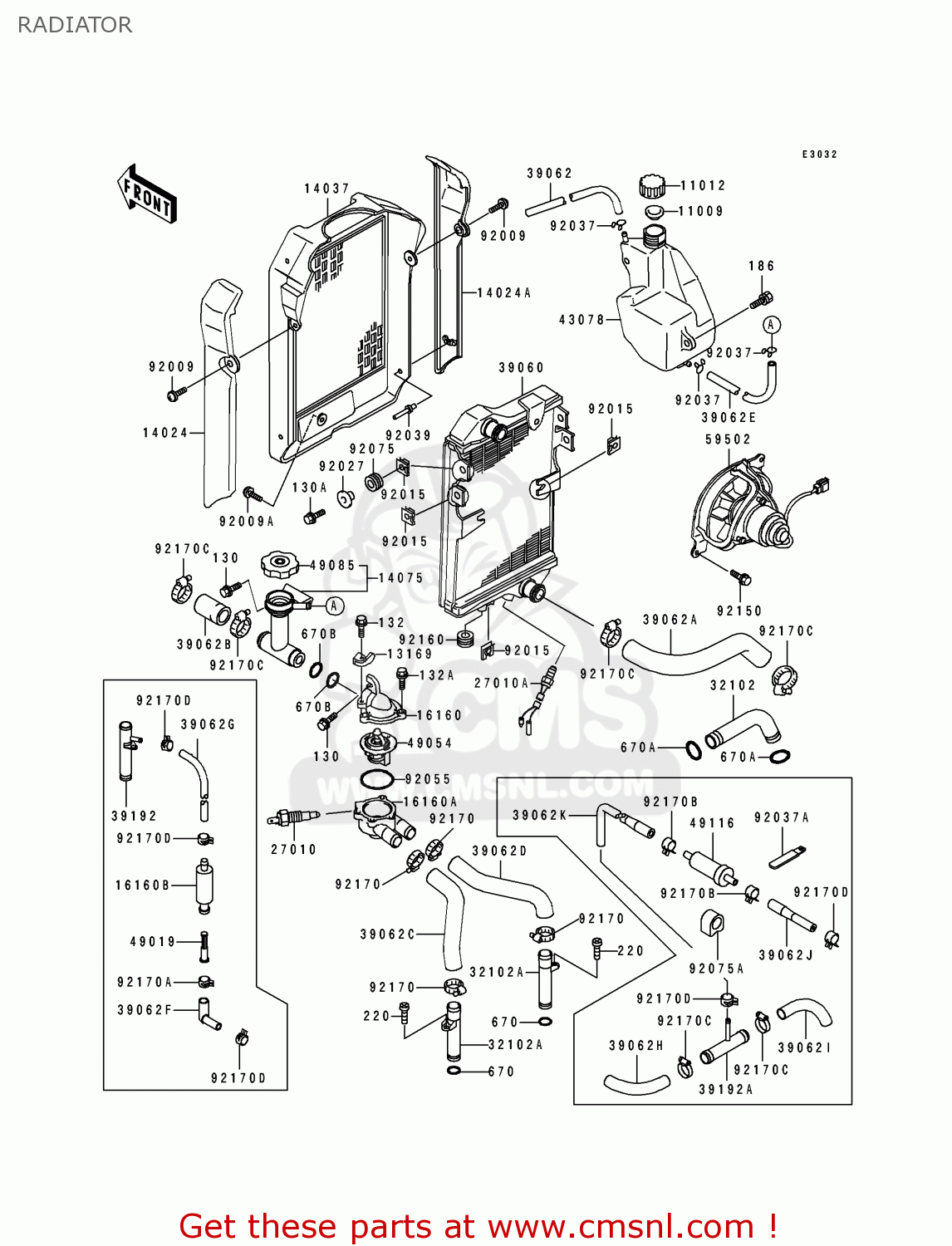

Radiator diagram EN500A4 1993 FRANCE NL FG
RADIATOR EN500A4 1993 FRANCE NL FG
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
13169
131691901
ref: 13169
PLATE
€ 5.50
14024
140241889
ref: 14024
COVER,SCREEN,LH
€ 14.00
14024A
140241890
ref: 14024A
COVER,SCREEN,RH
€ 14.00
14037
140371127
ref: 14037
SCREEN
€ 49.00
14075
140751082
ref: 14075
CAP-ASSY,RADIATOR
€ 133.50
16160
161601085
ref: 16160
BODY,THERMOSTAT,UPP
€ 39.00
16160A
161601138
ref: 16160A
BODY,THERMOSTAT,LWR
€ 24.50
16160B
161601151
ref: 16160B
BODY,FILTER
€ 6.50
27010
270101239
ref: 27010
SWITCH,SENSOR WATER
€ 104.50
27010A
270101307
ref: 27010A
SWITCH,FAN
€ 104.50
32102
321021014
ref: 32102
PIPE
€ 29.50
32102A
321021473
ref: 32102A
PIPE
€ 25.50
39060
390601089
ref: 39060
RADIATOR
€ 539.00
39062
390621060
ref: 39062
HOSE-COOLING,5.5X10.5
€ 17.00
39062B
390621107
ref: 39062B
HOSE-COOLING
€ 8.50
39062C
390621108
ref: 39062C
HOSE-COOLING
€ 15.00
39062D
390621109
ref: 39062D
HOSE-COOLING
€ 15.50
39062E
390621110
ref: 39062E
HOSE-COOLING,5.5X10.5
€ 25.00
39062F
390621314
ref: 39062F
HOSE-COOLING
€ 7.50
39062G
390621345
ref: 39062G
HOSE-COOLING
€ 5.50
39062H
390621353
ref: 39062H
HOSE-COOLING
€ 10.00
39062I
390621354
ref: 39062I
HOSE-COOLING
€ 10.00
39062J
390621378
ref: 39062J
HOSE-COOLING,CHECK VA
€ 4.50
39062K
390621386
ref: 39062K
HOSE-COOLING
€ 6.00
39192
391921019
ref: 39192
PIPE-WATER
€ 16.00
39192A
391921020
ref: 39192A
PIPE-WATER
€ 11.00
43078
430781060
ref: 43078
RESERVOIR
€ 39.00
130
130G0614
ref: 130
BOLT,FLANGED,6X14
€ 0.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
€ 2.50
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0620
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
186
186J0618
ref: 186
BOLT-UPSET-WP
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
670
670B2014
ref: 670
O RING,14MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
670B
670B2022
ref: 670B
O RING,22MM
€ 3.00
49019
490191068
ref: 49019
FILTER-FUEL
€ 4.00
49054
490541055
ref: 49054
THERMOSTAT
€ 39.50
49085
490851054
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
49116
491161081
ref: 49116
VALVE-ASSY
€ 85.00
59502
595021054
ref: 59502
FAN-ASSY
€ 460.00
92009
920091111
ref: 92009
SCREW,6X18
€ 3.00
92009A
920091288
ref: 92009A
SCREW,6X14
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92027
920271767
ref: 92027
COLLAR
€ 3.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371993
ref: 92037A
CLAMP
€ 3.50
92039
920391163
ref: 92039
RIVET,BLIND,4.0X9.2
€ 2.00
92055
920551279
ref: 92055
RING-O,45MM
€ 4.50
92075
920751680
ref: 92075
DAMPER
€ 4.00
92075A
920751728
ref: 92075A
DAMPER,CARRIER
€ 5.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701077
ref: 92170
CLAMP,COOLING HOSE
€ 6.50
92170A
921701118
ref: 92170A
CLAMP
€ 5.00
92170B
921701201
ref: 92170B
CLAMP
€ 3.50
92170C
921701286
ref: 92170C
CLAMP
€ 13.00
92170D
921702042
ref: 92170D
CLAMP
€ 1.00
