FENDER
EN500A4 1993 FRANCE NL FG

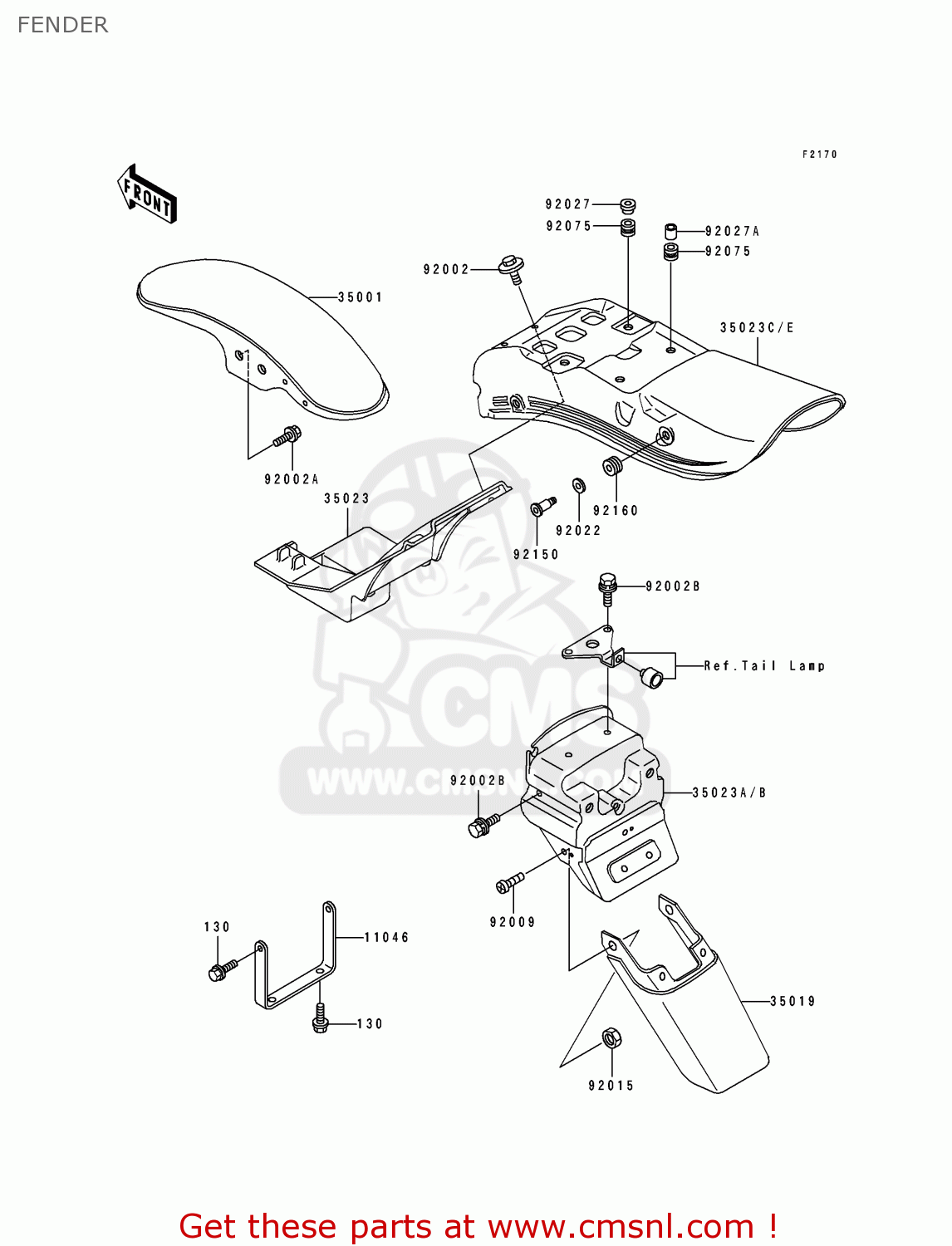

Fender diagram EN500A4 1993 FRANCE NL FG
FENDER EN500A4 1993 FRANCE NL FG
×
prices are in EUR
ref
part #
description
quantity
130
130D0610
ref: 130
BOLT-FLANGED
€ 0.50
11046
110461913
ref: 11046
BRACKET,REAR FENDER,F
€ 10.00
35001
350011140
ref: 35001
FENDER-ASSY-FRONT
€ 148.50
35019
350191261
ref: 35019
FG
FLAP,RR FENDER
€ 62.50
35023
350231259
ref: 35023
FENDER-REAR,FR
€ 50.00
35023A
350231261
ref: 35023A
FRNL
FENDER-REAR,RR,LWR
€ 64.00
35023B
350231274
ref: 35023B
FG
FENDER-REAR,RR,LWR
€ 64.00
35023C
350235058GV
ref: 35023C
FENDER-REAR,RR,UPP,C.
€ 202.50
35023D
ref: 35023D
35023E
350235060FC
ref: 35023E
FENDER-REAR,RR,UPP,C.
€ 160.50
92002
920021188
ref: 92002
BOLT,6X16
€ 3.00
92002A
920021200
ref: 92002A
BOLT,FLANGED,8X16
€ 3.00
92002B
920021242
ref: 92002B
BOLT
€ 3.00
92009
920091182
ref: 92009
FG
SCREW,5X12,BLACK
€ 1.50
92015
920151328
ref: 92015
FG
NUT,FLANGED,5MM
€ 2.00
92022
92022107
ref: 92022
WASHER
€ 2.00
92027
920271188
ref: 92027
COLLAR,FAN
€ 3.50
92027A
92027129
ref: 92027A
COLLAR,6.8X10X8.5
€ 3.00
92075
920751634
ref: 92075
DAMPER
€ 3.00
92150
921501413
ref: 92150
BOLT
€ 4.50
92160
921601012
ref: 92160
DAMPER
€ 3.50
