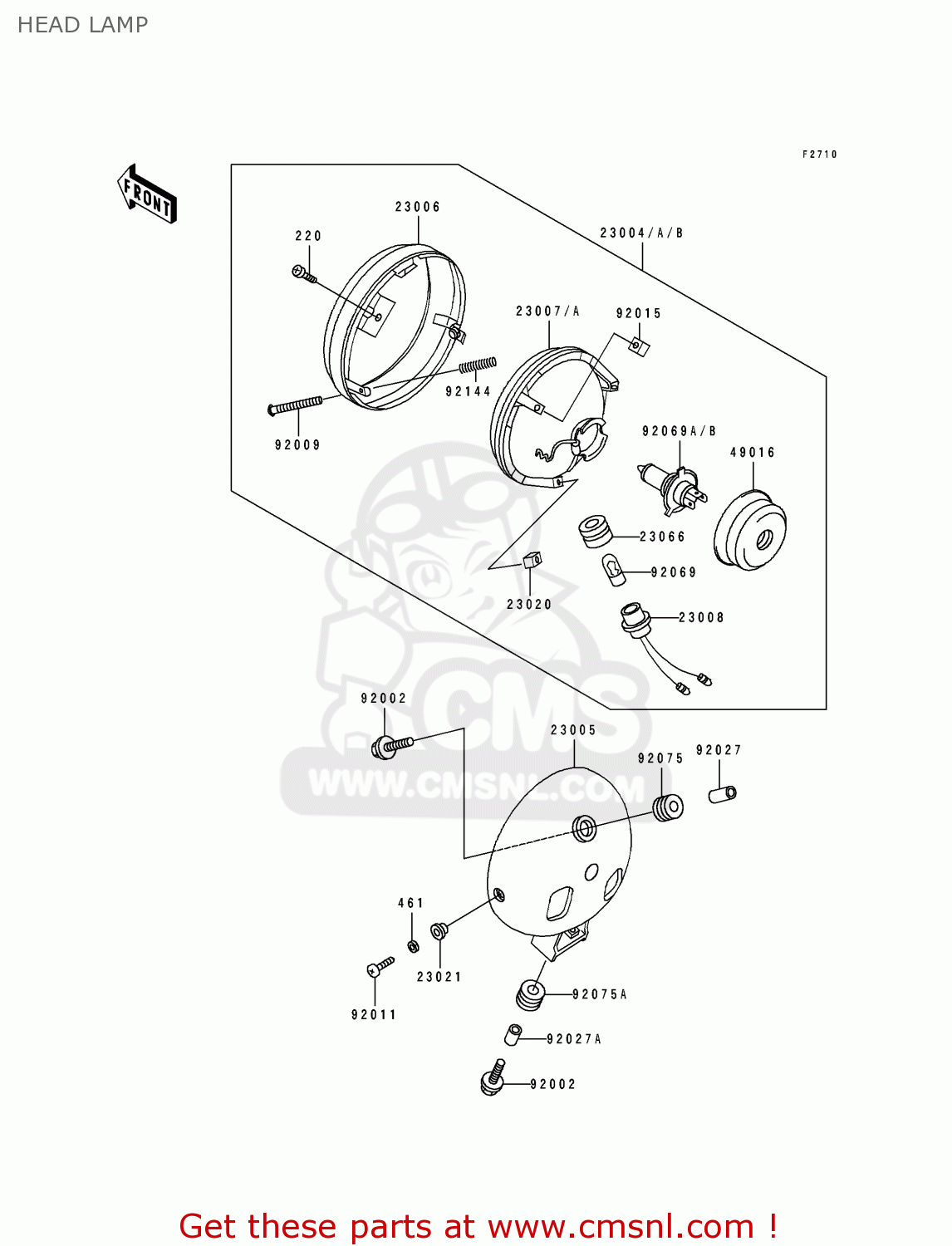

HEAD LAMP

ref

part #

description

quantity

220

220D0512
ref: 220

SCREW-PAN-CROS,5X12

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

23004A

230041308
ref: 23004A
FGNL

LAMP-HEAD

€ 515.50

23004B

230041309
ref: 23004B
FR

LAMP-HEAD

€ 566.00

23005

230051105
ref: 23005

BODY-COMP-HEAD LAMP

€ 82.50

23006

230061059
ref: 23006

RIM-LAMP

€ 73.00

23007A

230071262
ref: 23007A

LENS-COMP,HEAD LAMP

€ 151.00

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

23020

23020018
ref: 23020

NUT,4MM,FOCUS ADJUST

€ 3.00

23021

23021010
ref: 23021

WASHER

€ 2.50

23066

23066008
ref: 23066

DAMPER,PARKING LAMP

€ 3.00

49016

490161129
ref: 49016

COVER-SEAL,HEAD LAMP

€ 8.00

92002

920021135
ref: 92002

BOLT,6X25

€ 2.50

92009

920091472
ref: 92009

SCREW,FOCUS ADJUST,4X

€ 3.50

92011

92011024
ref: 92011

SCREW-PAN HEAD,5MM

€ 2.00

92015

920151157
ref: 92015

NUT,5MM

€ 3.50

92027

92027156
ref: 92027

COLLAR-BATTERY CASE

€ 3.00

92027A

92027162
ref: 92027A

COLLAR-REAR FENDER

€ 4.50

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A
FGNL

BULB,12V-60155W

€ 15.00

92069B

920691004
ref: 92069B
FR

BULB,12V 60/55W,H4,YE

€ 15.00

92075

920751035
ref: 92075

DAMPER RUBBER

€ 3.50

92075A

920751690
ref: 92075A

DAMPER,10X24X12

€ 3.00

92144

921441149
ref: 92144

SPRING,FOCUS ADJUST

€ 5.50
