IGNITION COIL
EN500A4 1993 FRANCE NL FG

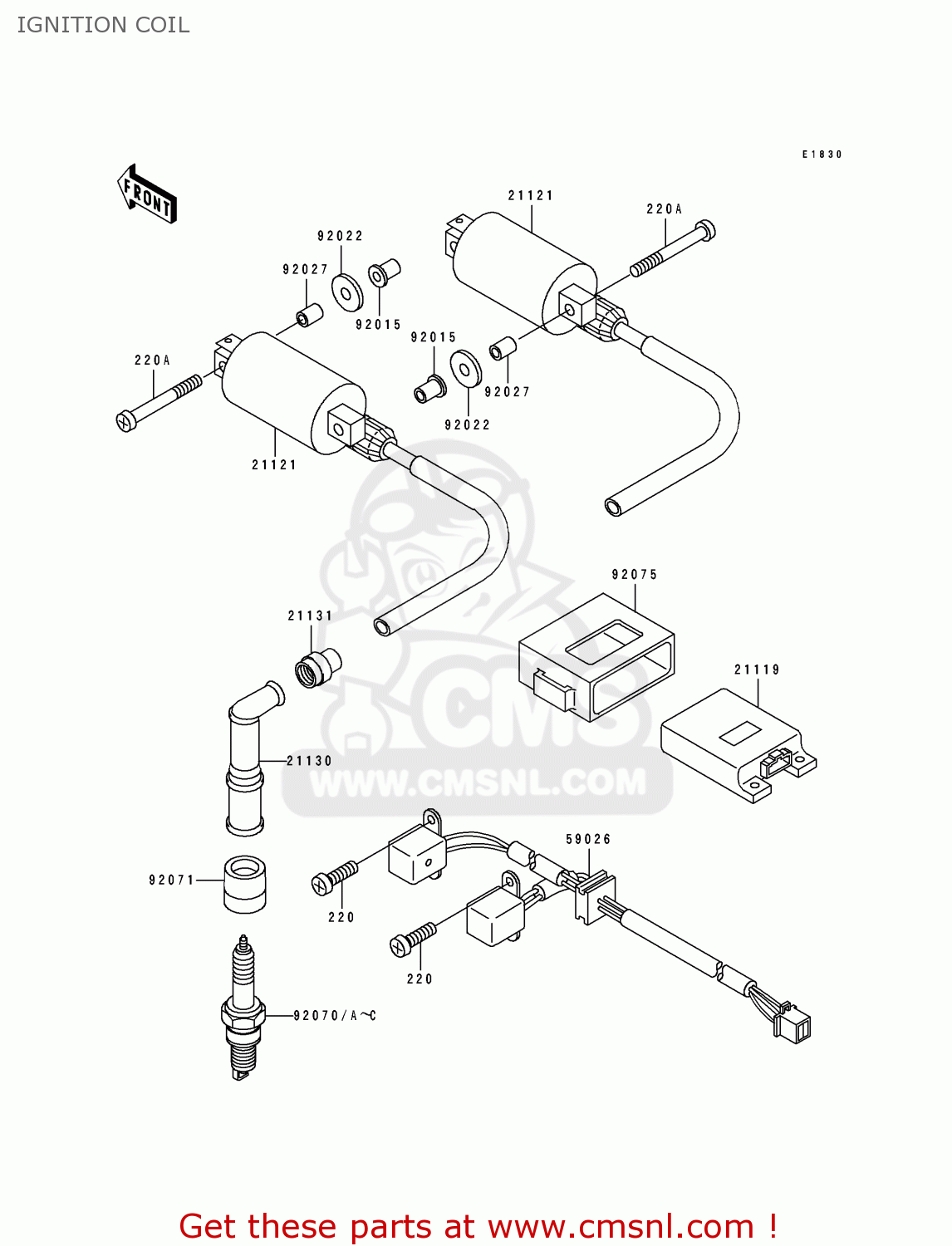

Ignition coil diagram EN500A4 1993 FRANCE NL FG
IGNITION COIL EN500A4 1993 FRANCE NL FG
×
prices are in EUR
ref
part #
description
quantity
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
220A
220B0650
ref: 220A
SCREW-PAN HEAD,6X50
€ 2.00
21119
211191219
ref: 21119
IGNITER
€ 479.50
21121
211211189
ref: 21121
COIL-IGNITION
€ 163.50
21130
211301068
ref: 21130
CAP-SPARK PLUG
€ 28.00
21131
21131005
ref: 21131
GROMMET,TENSION,ITALY
€ 4.00
59026
590261066
ref: 59026
COIL-PULSING
€ 141.50
92015
920151700A
ref: 92015
NUT
€ 5.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
920271870
ref: 92027
COLLAR,6.8X10X23
€ 4.50
92070
ref: 92070
92070A
920701019
ref: 92070A
DR8ES (NGK SPARKPLUG)
€ 4.00
92070B
ref: 92070B
92070C
920701116
ref: 92070C
DR8ES-L (NGK SPARKPLU
€ 4.00
92071
920711146
ref: 92071
GROMMET,PLUG CAP
€ 6.50
92075
920751504
ref: 92075
DAMPER,IGNITER
€ 23.50
